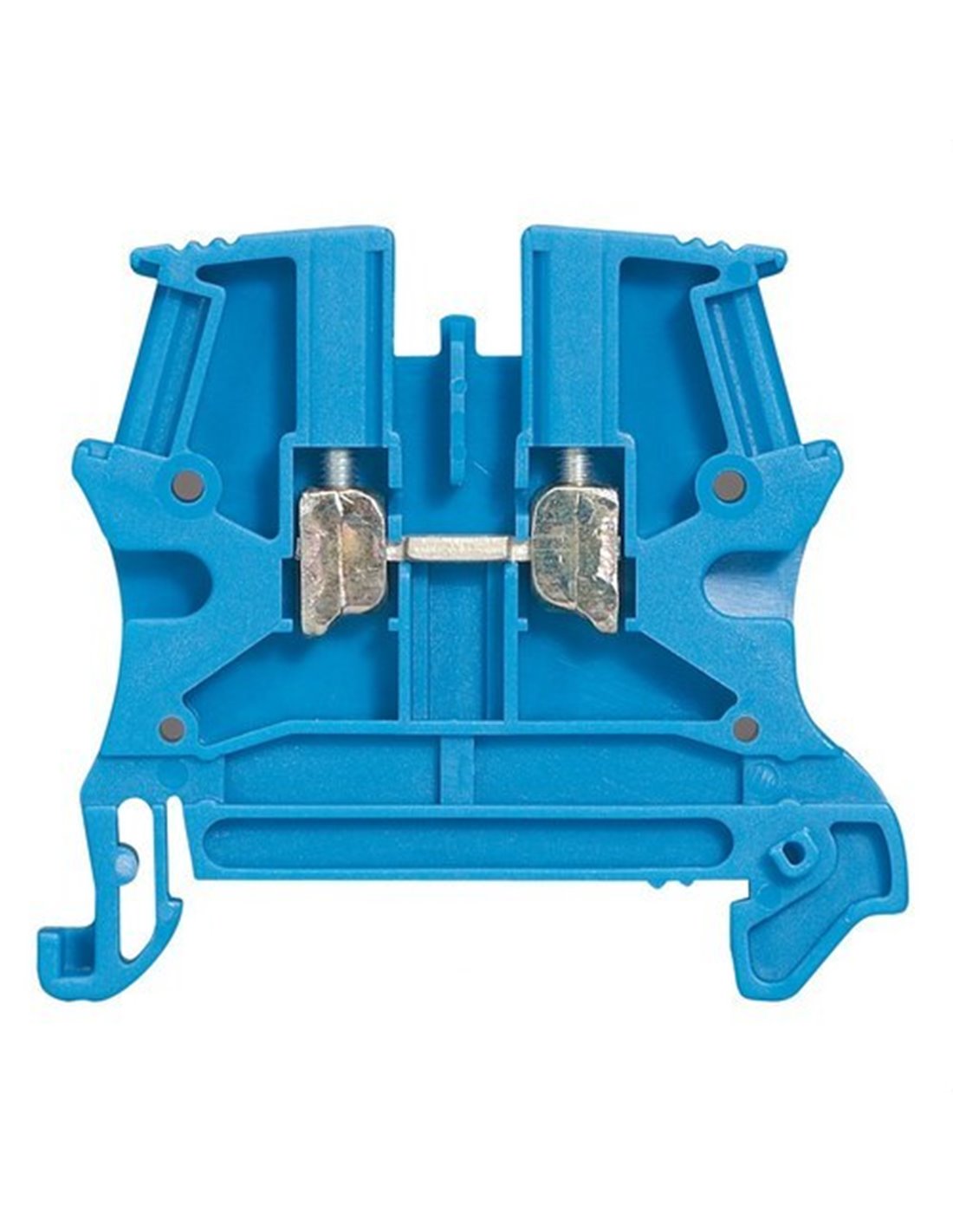

VIKING3 neutral terminal block 10mm²

The Viking 3 Screw Terminal Block is an effective solution to ensure the electrical connection between 2 flexible (with or without terminal) or rigid copper conductors. Designed for 15mm depth symmetrical, 7.5mm and 15mm depth EN 60715 symmetrical rails, this Viking 3 screw terminal block is perfect for any type of electrical project.

This Viking 3 screw terminal block has 2 zones for equipotential interconnection combs with automatic insertion up to a pitch of 8mm (only upper floor for multi-story blocks), which allows greater flexibility and adaptability to the needs of each electrical installation.

In addition, This Viking 3 screw terminal block has a capacity for a rigid conductor from 1.5 to 16mm² and a flexible conductor with or without a terminal from 2.5 to 10mm². It is sectionable with 1 union and its nominal section is 10mm². This makes it an ideal option for any type of electrical project, offering great versatility and adaptability.

The Borna Viking 3 with through screw, has 1 union, 1 input and 1 output in blue color , with a pitch of 10mm. It is perfect for larger electrical projects, as it has a large capacity for rigid and flexible conductors, which guarantees a safe and stable electrical connection.

The Viking 3 Screw Terminal is a high-performance option. quality that guarantees a safe and stable electrical connection. Its compact and functional design makes it an ideal option for small spaces, and its easy installation makes it perfect for any type of electrical project.

Additional technical characteristics:

• Compact and functional design
• High quality materials and resistance
• Easy installation in any type of electrical project
• Allows greater flexibility and adaptability to the needs of each electrical installation
