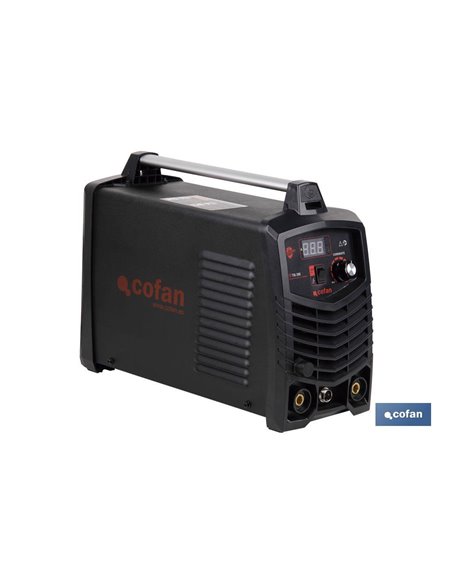

Electric Inverter Welder mma-160a/Tig-200

MMA-160a/Tig-200 Electric Inverter Welder

Inverter for welding TIG/MMA, or just TIG. Portable and lightweight, easy to carry. Advanced IGBT inverter technology with energy saving. TIG welding with molten tungsten electrode with non-contact HF arc starting method that prevents burns on thin parts. The gas after flow can equalize between 1 and 10 seconds which helps to perfect the weld. With OC and OH protection indicator that prolongs the life of the inverter. Capable of welding stainless steel, non-ferrous metals, easy-swing alloy metals and other alloys. No. RII-AEE of Cofan La Mancha; 7038

• Nominal input voltage: AC220V ±15%
• Nominal input current: MMA: 35.8A TIG: 36.4A
• Nominal capacity input: MMA: 7.8KVA TIG: 200/18
• Nominal output current/voltage: MMA:160A/26.4V TIG: 10-200A
• No load voltage (V) : 65 V
• Efficiency: 85%
• Power factor (cos F): 0.73
• Protection class: IP21S
• Insulation class: F
• Nominal duty cycle: 40% (40ºC)
• Standard electrode size: 1.2~4.0 mm
• Tungsten electrode size : 1.6/2.4/3.2 mm
• Measurements: 380 x 155 x 280 mm
• Weight [kg]: 8.2
• Functions: HF start, bow non-contact, thermal protection, TIG/MMA
