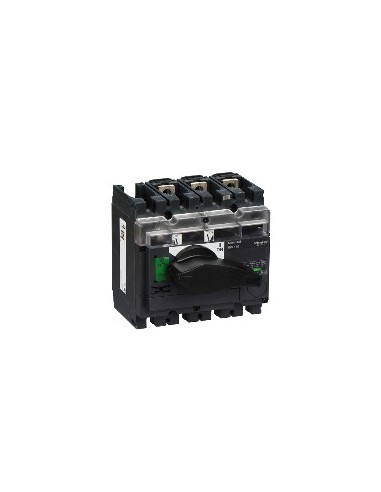

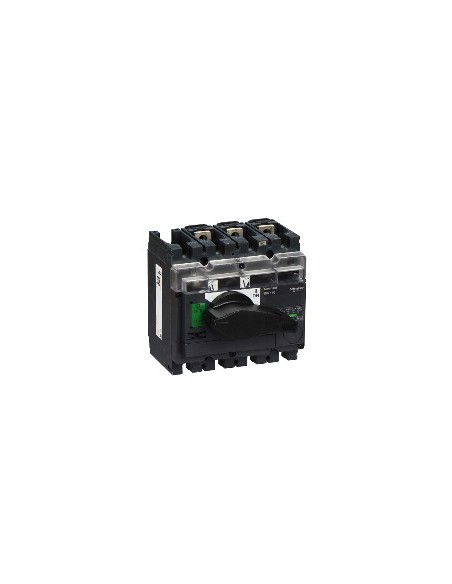

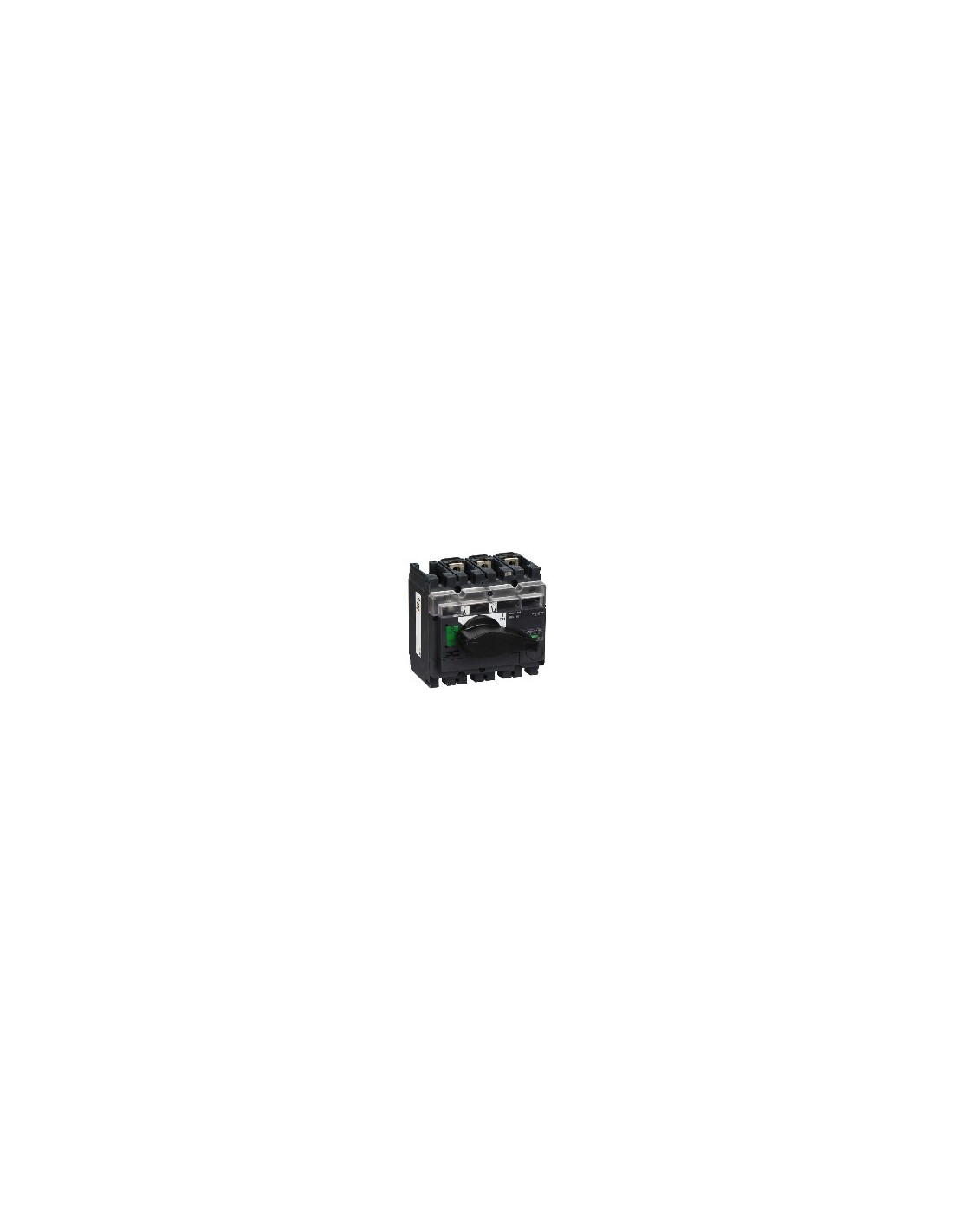

3P Compact NB Isolating Switch

ComPact range 3P section switch, designed for the safe disconnection of electrical circuits in industrial and commercial installations. Its fixed structure and rail mounting Plate facilitate its integration into electrical frames. It has visible cut and contact position indicator for a controlled and safe operation.

Technical characteristics

• Number of poles: 3P
• Network type: Continuous current AC
• Network frequency: 50/60 Hz
• Handle colour: Black
• Nominal current of employment: 160 A
• Nominal insulation voltage: 750 V AC 50/60 Hz
• Voltage peak resistance: 8 kV
• Conventional thermal current: 160 A at 60 °C
• Nominal short circuit capacity: 30 kA single switch-selector 690 V AC 50/60 Hz
• Nominal operating voltage: 250 V DC current 690 V AC 50/60 Hz
• Sewing power: Yes
• Contact position indicator: Yes
• Visible cut: Yes
• Degree of contamination: 3
• Type of control: Rotary Command
• Type of assembly: Fixed
• Mounting bracket: Rail Plate
• Top connection: Front
• Connection down: Front
• Maximum power: AC-23, state 1 110 kW at 500/525 V AC 50/60 Hz, 45 kW at 220/240 V AC 50/60 Hz, 50 kW at 480 V AC 50/60 Hz, 75 kW at 380/415 V AC 50/60 Hz, 90 kW at 440 V AC 50/60 Hz and 660/690 V AC 50/60 Hz
• Nominal service Uninterrupted
• Admissible temporal current: 1.8 kA (30 s), 2.2 kA (20 s), 4.9 kA (3 s), 8.5 kA (1 s)
• Mechanical durability: 15000 cycles
• Electrical durability: AC-22A, AC-23A, DC-22A, DC-23A, 1500 cycles
• Connection step: 45 mm
• Height: 136 mm
• Width: 140 mm
• Depth: 96 mm
• Weight of product: 2 kg
• Compatibility code: INV160
• Standards: En> 40 A Instant and demand values
• Product certifications: CCC KEMA-KEUR
• Degree of IP protection: IP40 according to On / Off Ig
• Level of protection IK: IK07 according to H
• Operating ambient temperature: -25...70 °C
• Storage ambient temperature: -50...85 °C
• Sustainable supply status: Product Green Premium
• REACh Regulation: Reference does not contain SVHC
• EU RoHS Directive: As per
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Product outside of RoHS China. Information statement on substances
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
