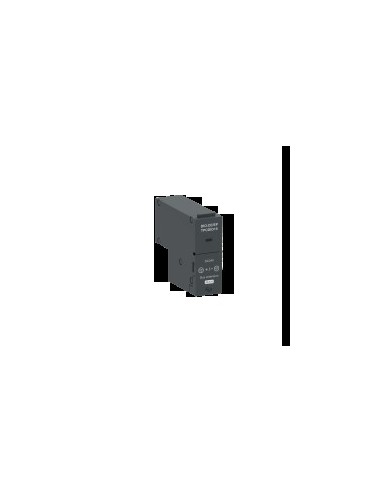

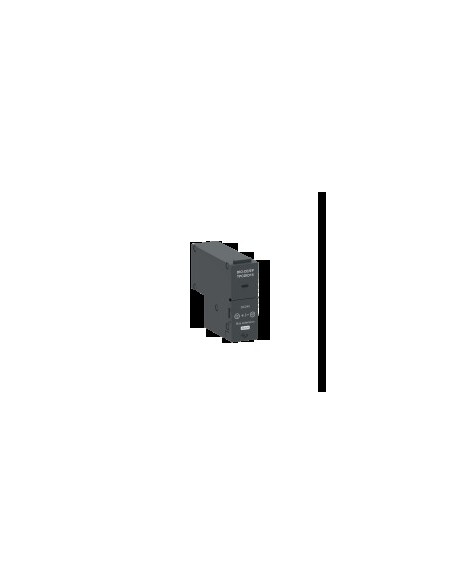

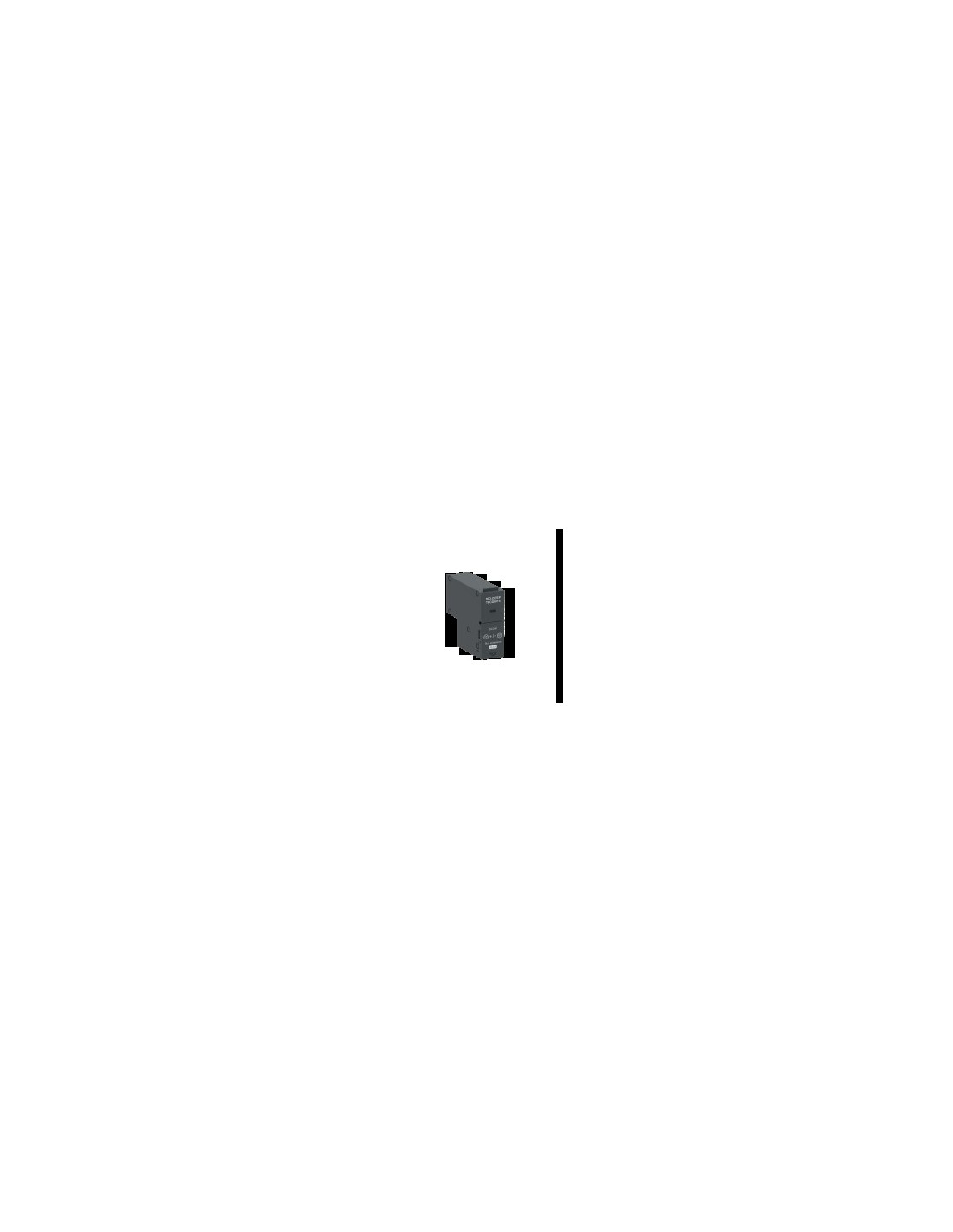

TransferPacT Module CAN Extension 24 V

TransferPacT module, designed as a CAN bus extension and external 24 VDC power supply, enables enhanced connectivity in signaling systems via CAN interface. Used to connect external devices such as HMI, facilitating communication in industrial environments.

Technical Features

• Function: Signaling
• Signaling function: CAN extension (connect to external HMI) Output voltage (24 V)
• Auxiliary connection terminal: Screw clamp terminal 0.05…2.6 mm²
• Mounting type: Connection
• Mounting position: Left-bottom
• Input current: 1 A 24 V DC +/- 20 %
• [Ui] Nominal insulation voltage: 30 V DC
• Torque: 0.6 N·m +/- 0.1 N·m
• Height: 56.5 mm
• Width: 20 mm
• Depth: 69 mm
• Protection rating IP: IP20
• Contamination degree: 3
• Accessory/component category: Signaling accessory
• Units per package 1: 1
• Units per package 2: 20
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• China RoHS Regulation: X
• RoHS exemption information: Yes
