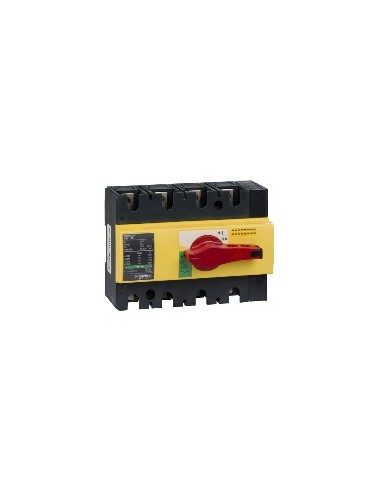

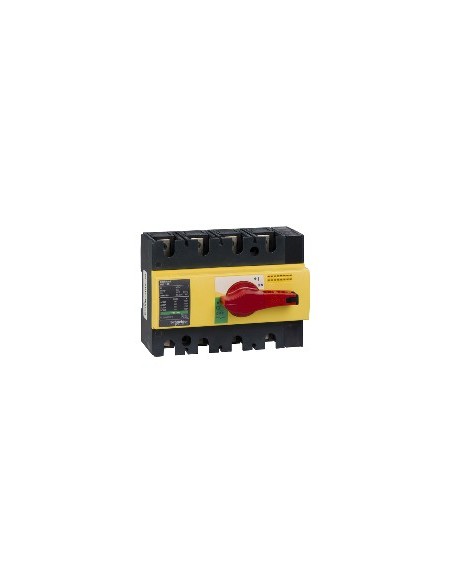

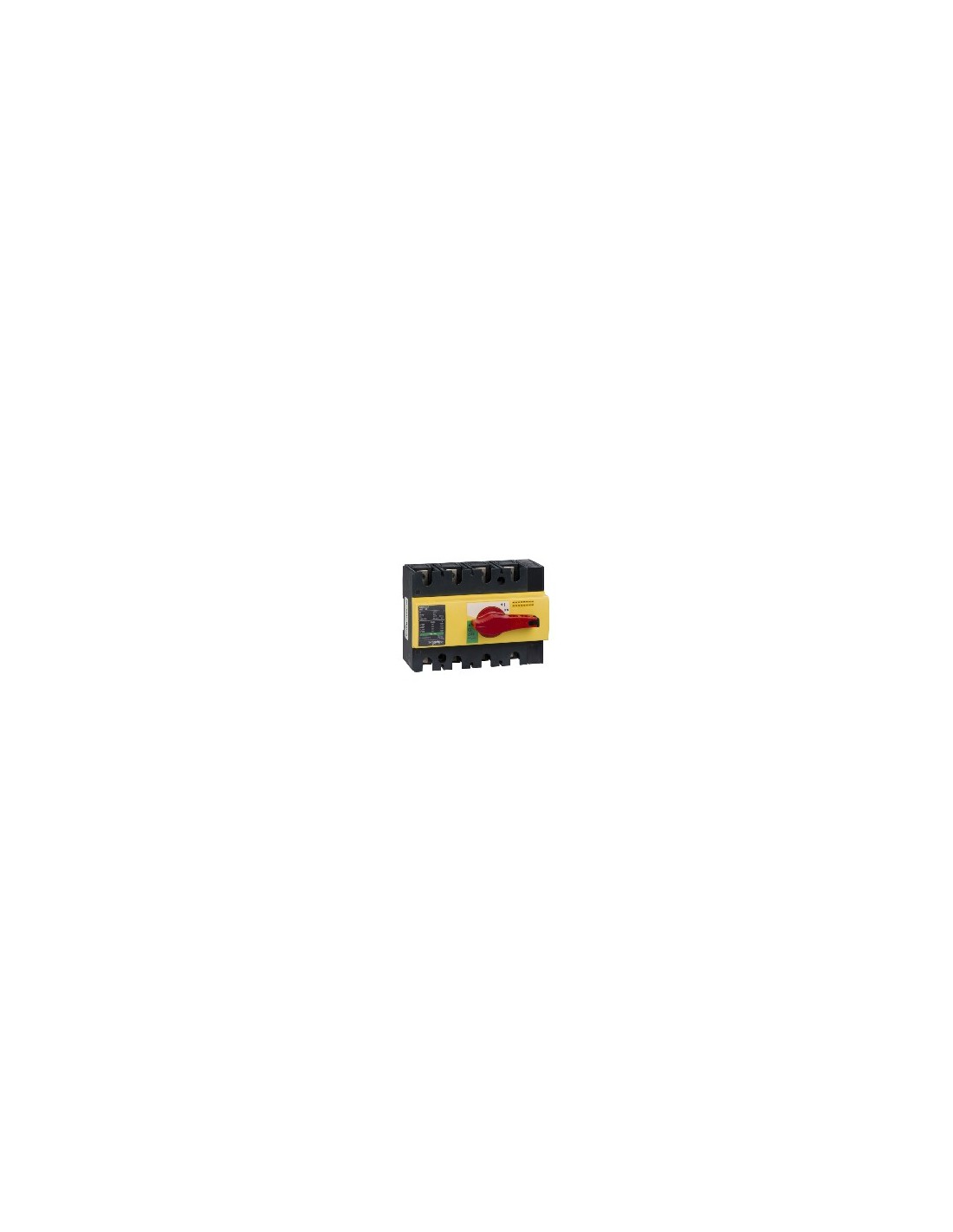

4P red isolating switch 160 A

4P red isolating switch 160 A from the ComPact range, designed for the safe disconnection of electrical circuits in industrial and commercial installations. Its DIN rail mounting and fixed structure make it suitable for electrical enclosures. It features a rotary handle and red handle for clear identification of the operating status.

Technical specifications

• Number of poles: 4P
• Network type: AC, DC
• Network frequency: 50/60 Hz
• Rated operating current: AC-23A, state 1 100 A AC 50/60 Hz 500 V; AC-22A, state 1 160 A AC 50/60 Hz 220/240 V; AC-22A, state 1 160 A AC 50/60 Hz 380/415 V; AC-22A, state 1 160 A AC 50/60 Hz 440/480 V; AC-22A, state 1 160 A AC 50/60 Hz 500 V; AC-22A, state 1 160 A AC 50/60 Hz 660/690 V; AC-23A, state 1 100 A AC 50/60 Hz 660/690 V; AC-23A, state 1 160 A AC 50/60 Hz 220/240 V; AC-23A, state 1 160 A AC 50/60 Hz 380/415 V; AC-23A, state 1 160 A AC 50/60 Hz 440/480 V; DC-22A, state 1 160 A DC 125 V 2 poles in series; DC-23A, state 1 160 A DC 125 V 2 poles in series; DC-22A, state 1 160 A DC 250 V 4 poles in series; DC-23A, state 1 160 A DC 250 V 4 poles in series
• Rated insulation voltage: 750 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 160 A at 60 °C
• Rated short-circuit breaking capacity: 154 kA with upstream circuit breaker 690 V AC at 50/60 Hz; 20 kA with isolating switch only 690 V AC at 50/60 Hz
• Rated operating voltage: 250 V DC; 690 V AC 50/60 Hz
• Switching capability: Yes
• Position indicator: Yes
• Visible breaking: No
• Pollution degree: 3
• Control type: Rotary handle
• Handle color: Red
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Frontal
• Bottom connection: Front part
• Maximum power: AC-23, state 1 110 kW at 500/525 V AC 50/60 Hz; AC-23, state 1 45 kW at 220/240 V AC 50/60 Hz; AC-23, state 1 75 kW at 380/415 V AC 50/60 Hz; AC-23, state 1 90 kW at 440 V AC 50/60 Hz; AC-23, state 1 90 kW at 660/690 V AC 50/60 Hz
• Rated service: Continuous
• Intermittent service class: Class 120 - 60 %
• Cabinet dimensions: 260 mm x 160 mm x 55 mm
• Permissible short-time current: 0.01 kA for 30 s electrical durability; 1.23 kA for 20 s electrical durability; 3.175 kA for 3 s electrical durability; 5.5 kA for 1 s electrical durability
• Mechanical durability: 15000 cycles
• Electrical durability: AC-22A, state 1 1500 cycles; AC-23A, state 1 1500 cycles; DC-22A, state 1 1500 cycles; DC-23A, state 1 1500 cycles
• Connection pitch: 30 mm
• Height: 100 mm
• Width: 135 mm
• Depth: 62.5 mm
• Product weight: 0.9 kg
• Compatibility code: INS160
• Standards: Instantaneous and demand values En > 40 A
• Product certifications: KEMA-KEUR CCC
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a regular trash container
