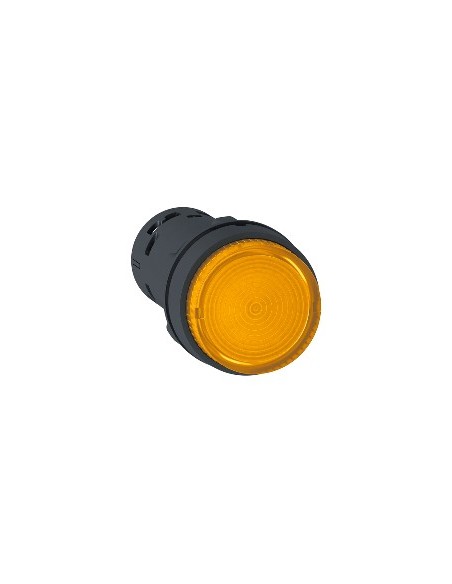

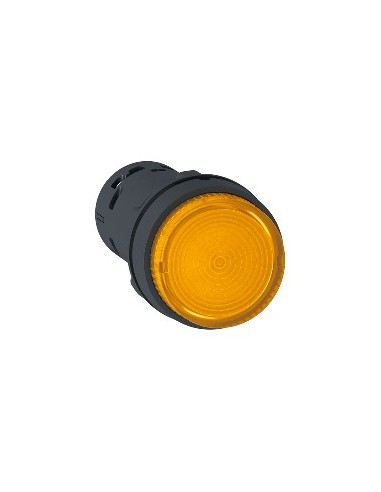

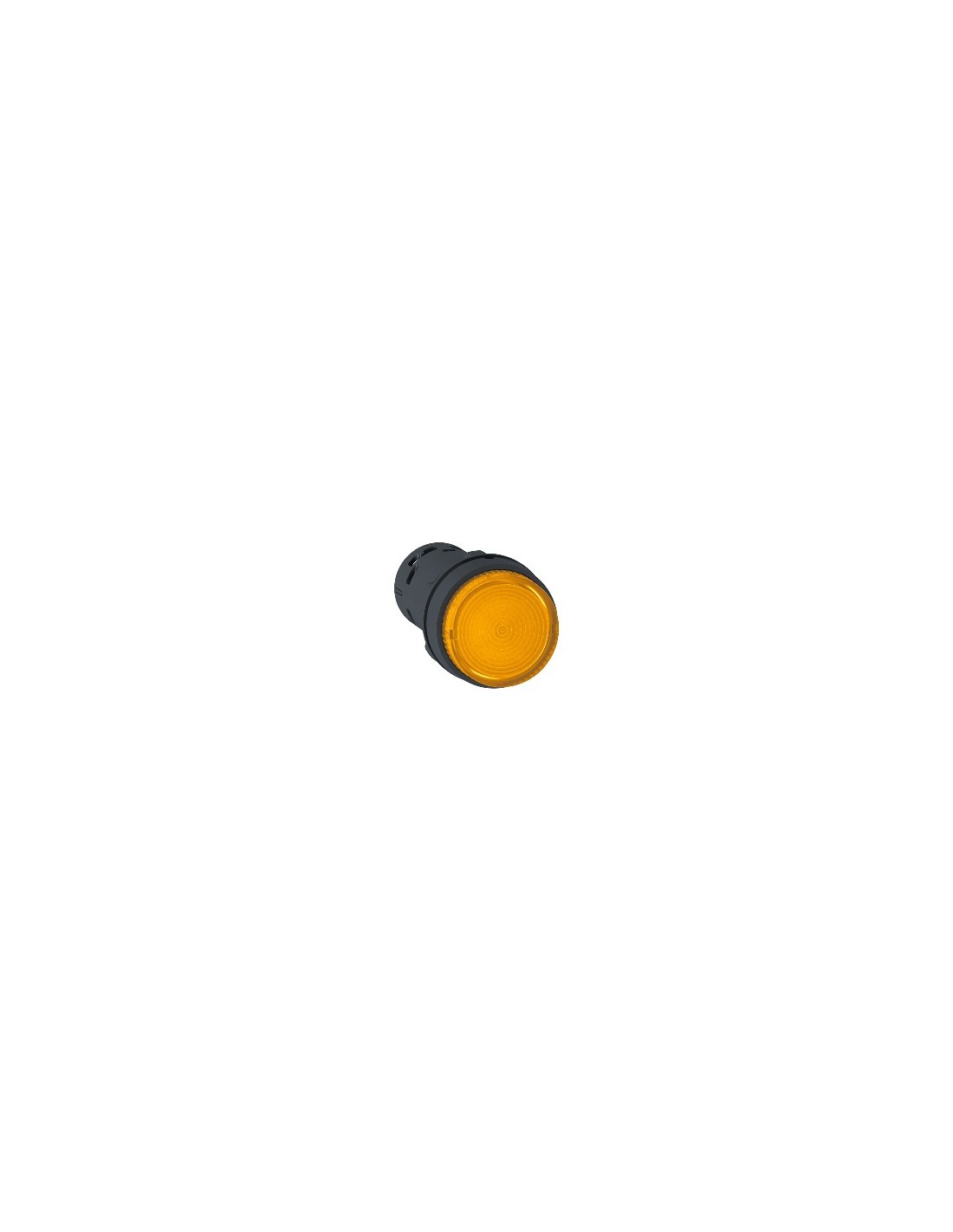

Orange LED illuminated pushbutton 24 V

Monolithic illuminated pushbutton with fixed orange signaling, designed for operation at 24 V AC/DC. Ideal for indicating activation states on industrial control panels. Features a normally open contact and 22 mm mounting hole, ensuring secure and stable installation.

Technical specifications

• Mounting diameter: 22 mm
• Protection rating: IP20 (rear face), IP65 (front panel)
• Signaling head shape: Circular
• Operator type: Spring return
• Operator profile: Orange protruding, no marking
• Contact type and composition: 1 NO
• Connections: Screw terminals, up to 40 A capacity, wire cross-section 0.34...0.2 x 2.5 mm² without terminal
• Light source: Integrated LED
• Rated supply voltage: 24 V AC/DC
• Supply voltage range: 19.2…30 V DC, 21.6…26.4 V AC
• Current consumption: 18...27 mA
• Contact operation: Slow make
• Positive opening: With (only NO)
• Mechanical durability: 300000 cycles
• Electrical durability: 1000000 cycles (DC-13, 0.3 A at 24 V; AC-15, 0.09 A at 240 V)
• Rated operating current: 0.1 A at 250 V, DC-13, R300; 0.3 A at 240 V, AC-14, D300
• Surge voltage resistance: 4 kV
• Rated insulation voltage: 250 V (contamination degree 3)
• Short-circuit protection: Cartridge fuse gG, 4 A
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -40…70 °C
• Vibration resistance: 5 gn (2…500 Hz)
• Shock resistance: 50 gn (11 ms), 30 gn (18 ms)
• Electrical shock protection class: Class II
• NEMA protection rating: NEMA 12
• Standards: UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1
• Certifications: GOST, CCC
• Protective treatment: TH
• Cable retention support: Class B
• Product weight: 0.023 kg
• Dimensions: 29 mm (width) x 29 mm (height) x 57.5 mm (depth)
• Packaging: 1 unit, 3.2 x 3.2 x 6 cm, 24 g
• Sustainable offering status: Green Premium product
• EU RoHS directive: Proactive compliance (outside scope)
• Mercury-free: Yes
• WEEE: Must be disposed of via specific system in the EU
