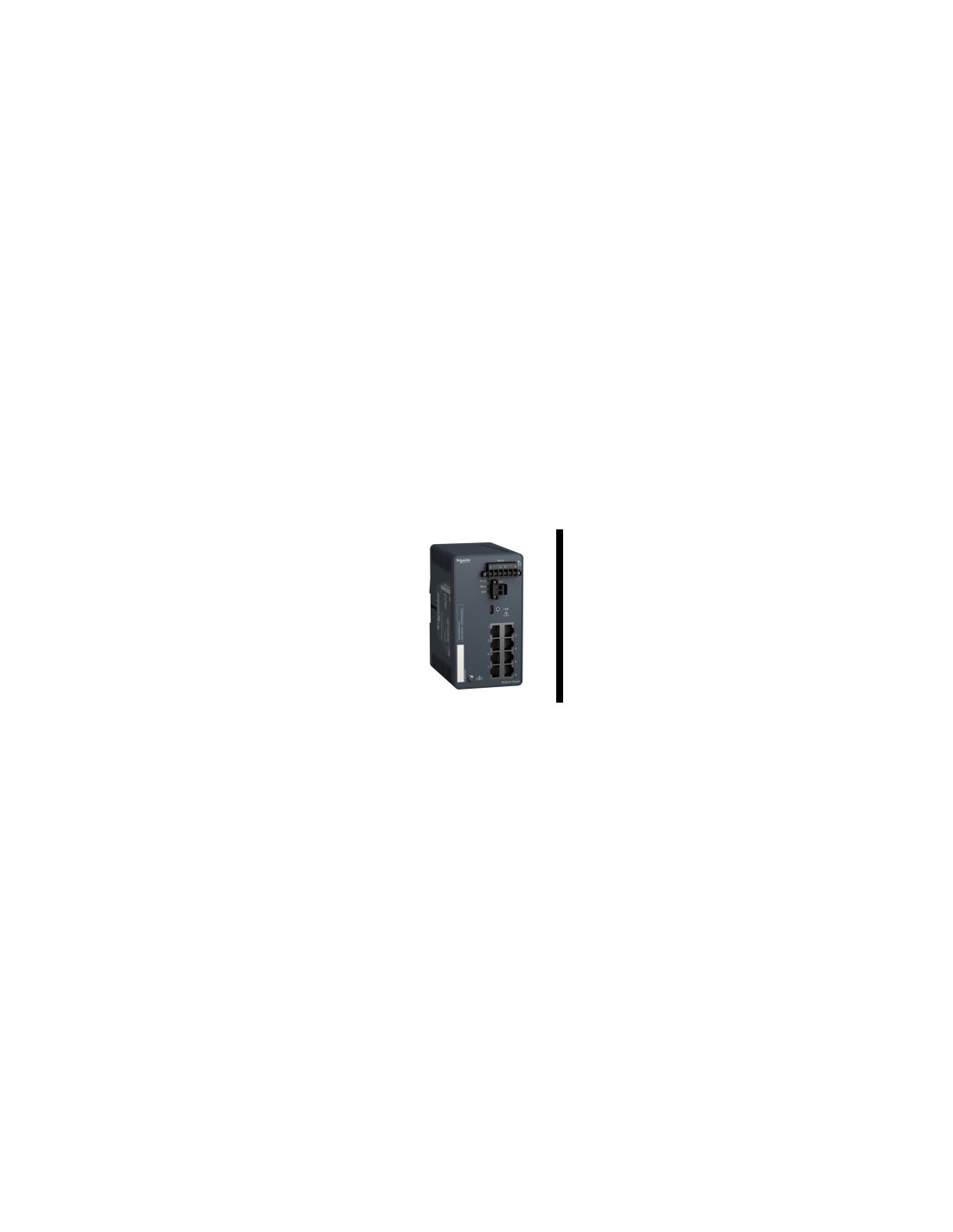

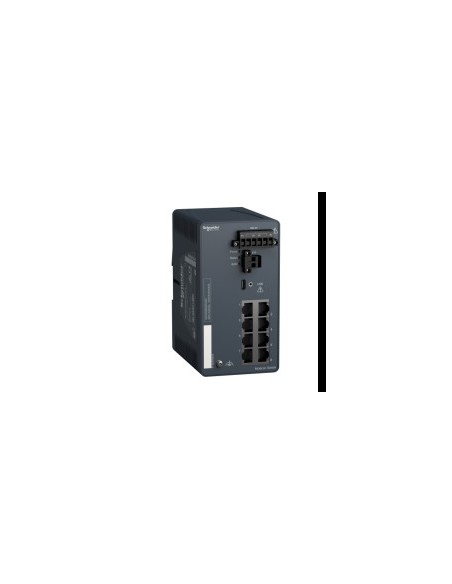

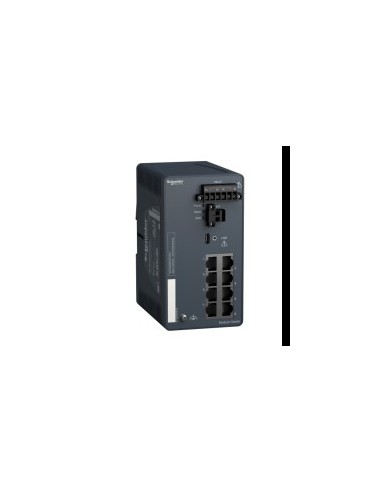

Modicon 8-port copper managed switch

8 Ethernet 10/100BASE-TX managed switch for industrial networks, compatible with TCP/IP and multiple communication protocols. Designed for demanding environments with redundant network support and advanced web, SNMP, SSH and HTTPS management. It incorporates IP30 protection and DIN 35 mm rail mounting.

Technical characteristics

• 8 Ethernet ports 10/100BASE-TX with RJ45 armoured connection
• Transmission medium: CAT 5E armoured braided pair cable
• Maximum distance between devices: 100 m
• Nominal supply voltage: 12...24 V DC
• Power voltage limits: 9,6...32 V CC SELV
• Power consumption: 6 W
• Removable 6-way power connector
• Mounting bracket: symmetric 35 mm DIN rail
• Degree of protection: IP30
• Operating temperature: 0...60 °C
• Relative humidity: 1...95 % without condensation
• Maximum number of cascade switches: Unlimited
• Maximum number of ring switches: 50
• Redundancy: HiPER ring, RSTP, Link aggregation, Link backup, Redundant network matching, MRP
• Cybersecurity: Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner
• Ethernet services: Web Configuration, VLAN, Multicast Filter, Data Flow Control, IGMP Snooping, SNMP-Traps, SYSLOG
• Communication services: TFTP, Quality of Service (QoS), Port monitoring, Epelhamento de porta, Address conflict detection
• Diagnosis: Signal contact, Self test, MAC notification
• Alarm output: 2 SPDT 1 A
• Alarm functions: Power failure, Data link status, Switch fail, Temperature threshold, Redundancy ring fail, Incorrect configuration, External memory removed
• Function available: Safety status, Alarms (traps), Tap box, Report
• Local signs: Sources of food P1 P2 (Green/yellow dual LED), Device status (Green/red dual LED), Memory key status (Green/yellow dual LED), Channel Diagnostic (Green/yellow dual LED)
• Mark: EC, CULus, RCM
• Certifications: EC, UL, RCM, DNV, ATEX
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Standards: UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1
• Sustainable supply status: Product Green Premium
• Contains SVCH according to REACh
• RoHS EU: Proactive (out-of-scope) compliance
• No mercury: Yes
• RoHS exemptions: Yes
• WEEE: It should be discarded by specific system in the EU
