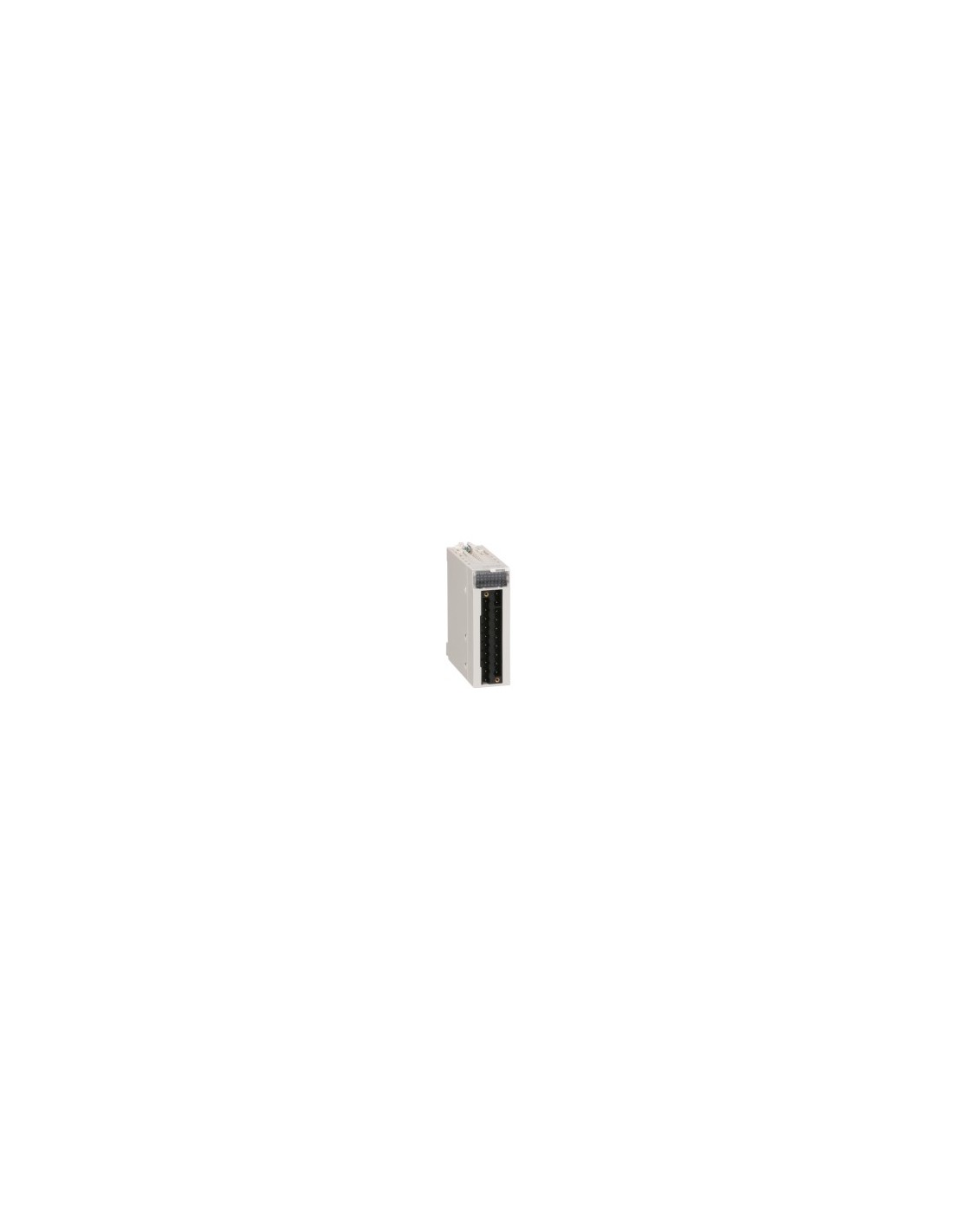

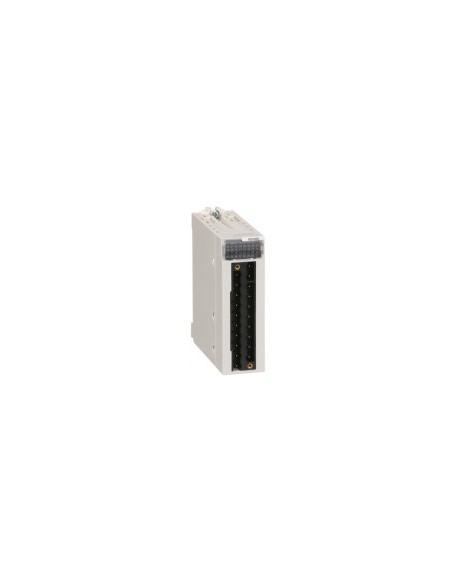

M340,16 ED,24vDC (20P) is a discrete input module from the Modicon X80 range, designed to be integrated into industrial automation systems.
Technical characteristics
- Number of digital entries: 16
- Discreet input: Isolated
- Type of entry: Current collector (positive logic)
- Input voltage: 24 V DC positive
- Discreet input current: 3,5 mA
- Tensions range: 19...30 V
- Current status 1 guaranteed: >= 2 mA
- Current status 0 guaranteed: <= 1.5 mA
- Entry Impedance: 6800 Ohm
- Insulation resistance: > 10 MOhm at 500 V DC
- Dissipated power: 2,5 W
- Typical filter time: 4 ms
- Maximum filter time: 7 ms
- Parallel entries: Yes
- Typical current consumption: 76 mA in 3.3 V DC
- MTBF: 738749 h
- Protection: 1 external fuse per channel group (0.5 A, fast melt), reverse polarity protection
- Detection threshold voltage: > 18 V DC
- Status LED: RUN (green), diagnostic channel (green), error module (red), I/O module (red)
- Weight: 0.115 kg
- Degree of protection: IP20
- Dielectric force: 1500 V AC, 1 minute (primary/secondary)
- Vibration resistance: 3 gn
- Shock resistance: 30 gn
- Operating ambient temperature: 0...60 °C
- Storage ambient temperature: -40...85 °C
- Relative humidity: 5...95 % at 55 °C without condensation
- Maximum operating altitude: 0...2000 m (2000...5000 m with)
- Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
- Environmental characteristics: Resistant to Class 3B2 fungal spores
- According to REACh without SVCC: Yes
- EU RoHS Directive: Proactive (out-of-scope) compliance
- No mercury: Yes
- RoHS exemptions: Yes
- RoHS China Regulations: X
- WEEE: Waste according to specific system in EU
