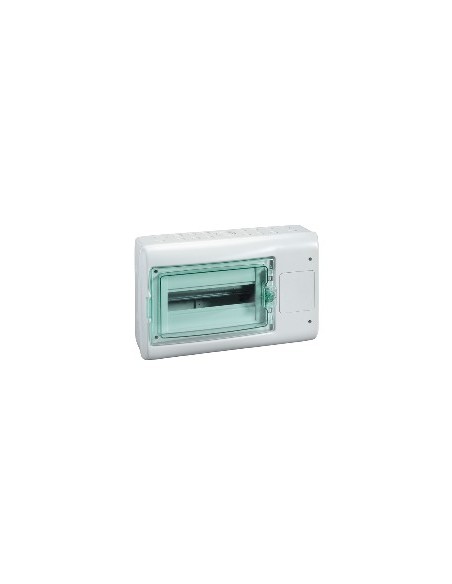

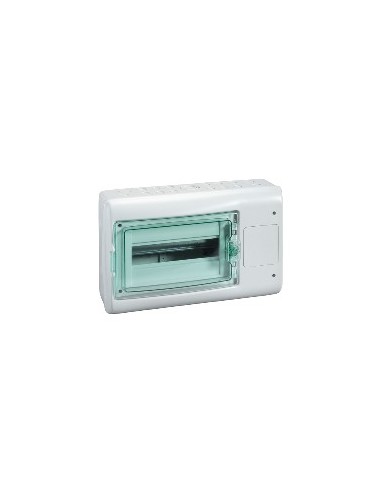

Kaedra 448 x 280 mm watertight chest, designed for modular installations with interface, offers a compact solution for residential environments and small shops. Its self-extinguishing polymer structure guarantees electrical safety and resistance to demanding environmental conditions. It includes 12 18 mm modules distributed in a single row, with 16 orifice terminal block and support for fastening. It has an opening in the interface and a transparent reversible cover for easy identification.
Technical characteristics
- Cabinet mounting: Area
- Number of 18 mm modules per row: 12
- Total number of 18 mm modules: 12
- Number of horizontal rows: 1
- Electrical insulation class: Double isolation Class II
- Number of interface openings: 1
- Number of plates: 1 for push-button controls
- Equipment supplied: 1 Marking kit, 1 cable clamp, 1 push-button control plate, 1 Terminal block holder, 1 terminal block 16 holes
- Type of cover: Transparent Reversible
- Power dissipation: 28 W
- Nominal current [In]: 90 A
- Rail type: DIN
- Number of dies PG ISO: 17
- Number of terminal blocks: 1 with clamping capacity: 16 exits
- Description of locking options: Optional lock
- Envelope material: Self-extinguishing polymer
- Base size: 91 x 100 mm
- Width: 448 mm
- Height: 280 mm
- Depth: 160 mm
- Colour: Door, status 1 transparent green; Wrapper, status 1 light grey (RAL 7035)
- Fire resistance: 750 °C according to IEC 60695-2-1
- Degree of IP protection: IP65 according to Enable / Deactivate Ig
- Level of protection IK: IK09 according to H
- Environmental characteristics: UV resistance, status 1 class 3 according to ISO 4582:2010; Ultraviolet degradation test according to ISO 4892-2:2013
- Overvoltage category: II
- Operating ambient temperature: -25...60 °C
- Standards: IEC 60439-3 H, IEC 670, Activate/disable Ig, EN 50262
- REACh Regulation: Reference does not contain SVHC
- EU RoHS Directive: Proactive compliance (out-of-scope product of RoHS EU)
- No mercury: Yes
- Information on RoHS exemptions: Yes
- RoHS China Regulations: Product outside of RoHS China. Information statement on substances
The chest is suitable for applications in environments where dust and water protection is required, as well as mechanical and thermal resistance. Its modular design allows efficient organization of electrical components in small installations.
