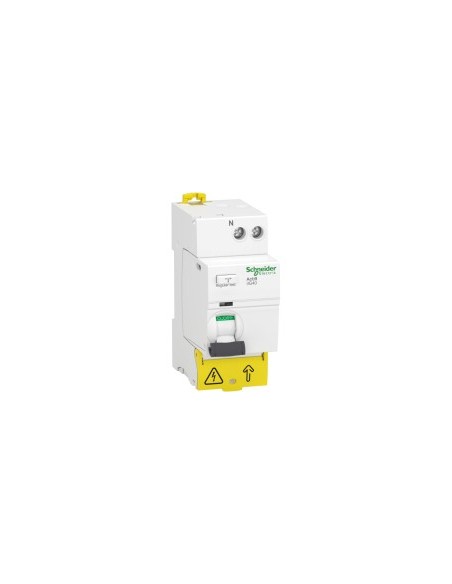

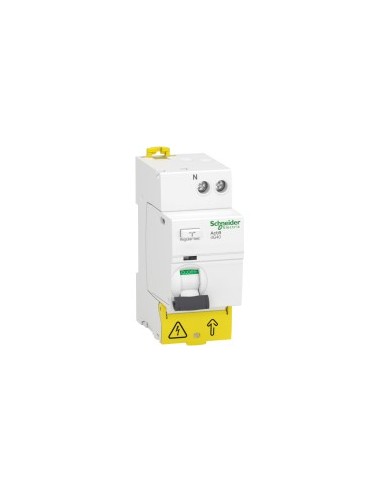

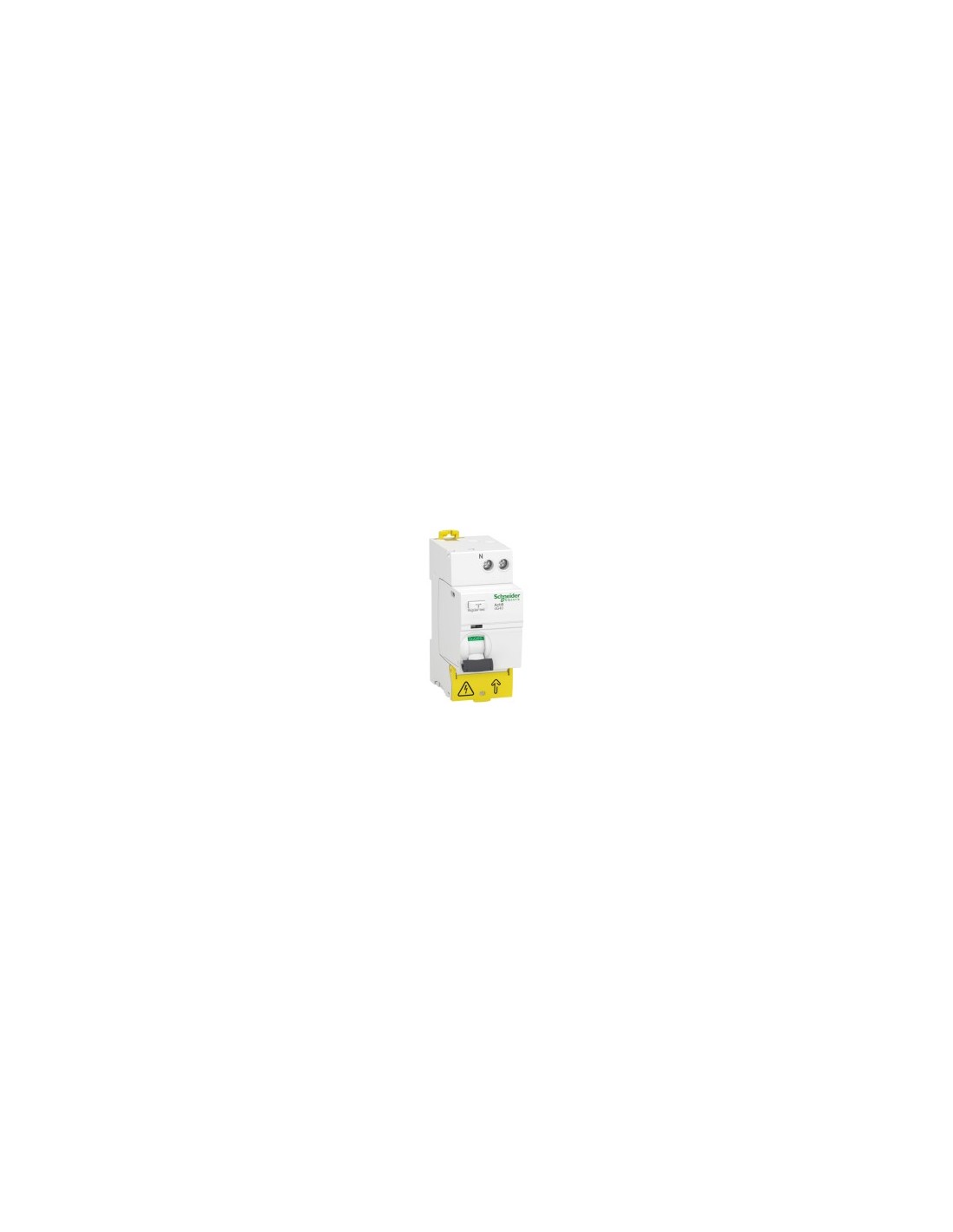

Acti9 iIG40 1PN 25A 30mA AC type differential switch

AC-type residual current circuit breaker from the Acti9 iIG40 range, designed for main distribution installations in single-phase networks. Provides instantaneous earth leakage protection with 30 mA sensitivity, ensuring safety under varying network conditions thanks to its voltage-independent trip technology. Compatible with nominal voltages of 220...240 V AC and frequency of 50 Hz.

Technical Features

• Number of poles: 1P + N
• Neutral position: Left
• Rated current [In]: 25 A
• Network type: AC
• Earth leakage sensitivity: 30 mA
• Protection delay: Instantaneous
• Protection class: Type AC
• Breaking capacity: Yes, in accordance with Icu
• Rated operating voltage [Ue]: 220...240 V AC 50 Hz
• Rated insulation voltage [Ui]: 500 V AC 50 Hz
• Surge voltage withstand [Uimp]: 6 kV
• Connection and breaking capacity: Idm 1500 A
• Conditional short-circuit current: 10000 A
• Contact position indicator: Yes
• Control type: Handle
• Mounting type: Clip-adjustable
• Mounting support: DIN rail
• Spacing: 9 mm, 4 steps
• Height: 85 mm
• Width: 36 mm
• Depth: 74 mm
• Weight: 184 g
• Color: White
• Mechanical durability: 20000 cycles
• Electrical durability: 15000 cycles
• Terminals: Tunnel-type (lower: 1…35 mm² rigid, 1…25 mm² flexible; upper: 1…16 mm² rigid, 1…10 mm² flexible)
• Stripping length: 14 mm
• Torque: 3.5 N·m (lower), 2 N·m (upper)
• Protection degree IP: IP20 (activate/deactivate Ig IP40 - cable type: modular enclosure)
• Contamination degree: 3
• Electromagnetic compatibility: Surge immunity 8/20 µs, 250 A (in accordance with EN/IEC 61008-2-1)
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2000 m
• Operating ambient temperature: -5…60 °C
• Storage ambient temperature: -40…85 °C
• Standards: EN/IEC 61008-2-1
• Certifications: CE, NF
• Locking: Lockable device
• Sustainable offering status: Green Premium product
• REACH Regulation: No SVHC content
• EU RoHS Directive: Compliant
• RoHS exemptions: Yes
• China RoHS: Outside China RoHS scope
• WEEE: Must be disposed of according to specific system in EU
• Halogen content: Halogen-free plastic content
