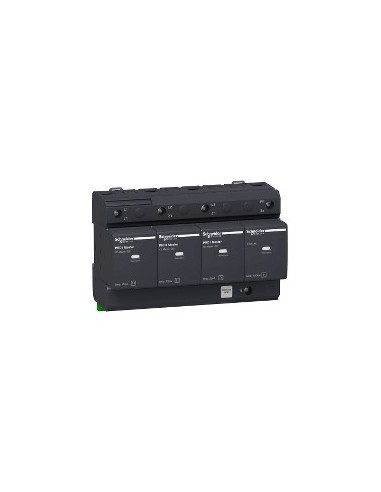

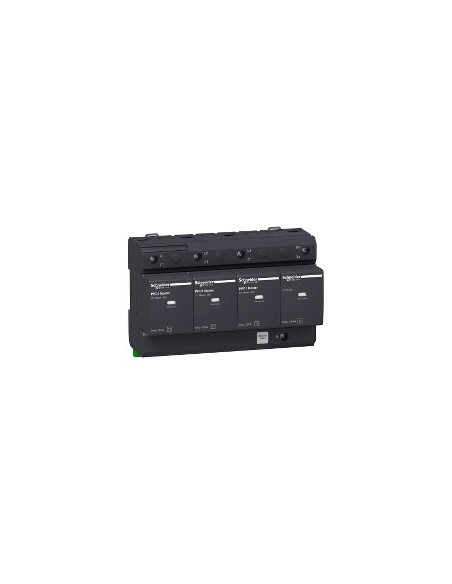

Surge Protector 3P+N Type 1 100 kA

Surge protector type 1, 3P+N, designed to protect electrical installations in distribution networks of small businesses. Compatible with TT and TN-S earthing systems, provides protection against transient overvoltages according to EN 61643-11:2012 and IEC 61643-11:2011 standards. Incorporates inter-electrode distance technology for effective response.

Technical Features

• Number of poles: 3P + N
• Rated operating voltage: 230/400 V AC ±10 %, 50/60 Hz
• Rated discharge current: 100 kA (common mode, N/PE), 25 kA (differential mode, L/N)
• Impulse current: 100 kA (common mode, N/PE), 25 kA (differential mode, L/N)
• Maximum continuous operating voltage: 350 V (differential mode, L/N), 350 V (common mode, N/PE)
• Voltage protection level: <1,5 kV (differential mode, L/N, type 2)
• Current monitoring: 0,1 kA (common mode, N/PE), 50 kA (differential mode, L/N)
• Remote signaling: 1 SD (1 C/O)
• Connections: Tunnel terminals, 2,5…35 mm² (upper and lower)
• Tightening torque: 4,5 N·m
• Surge current: 25 kA
• IK protection rating: IK05 (IEC 62262)
• Operating ambient temperature: -25…60 °C
• Storage ambient temperature: -40…80 °C
• Maximum operating altitude: 2000 m
• Relative humidity: 5…90 %
• Material: PBT (polybutylene terephthalate)
• Color: Anthracite grey (RAL 7016)
• Height: 90 mm
• Width: 142,8 mm
• Depth: 70 mm
• Weight: 1,31 kg
• Mounting mode: Adjustable clip (DIN rail)
• Spacing: 9 mm, 16 steps
• Associated disconnecting device: gG fuse 315 A standard, Compact NSX100F 100 A C curve - Icu 36 kA or Compact NSX100N 100 A C curve - Icu 50 kA
• Signaling circuit voltage: 1 A, 250 V AC, 50/60 Hz
• Certifications: CE, KEMA-KEUR
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• China RoHS: Product outside China RoHS scope
• RoHS Exemptions: Yes
• WEEE: Must be disposed of according to specific collection system in the EU
