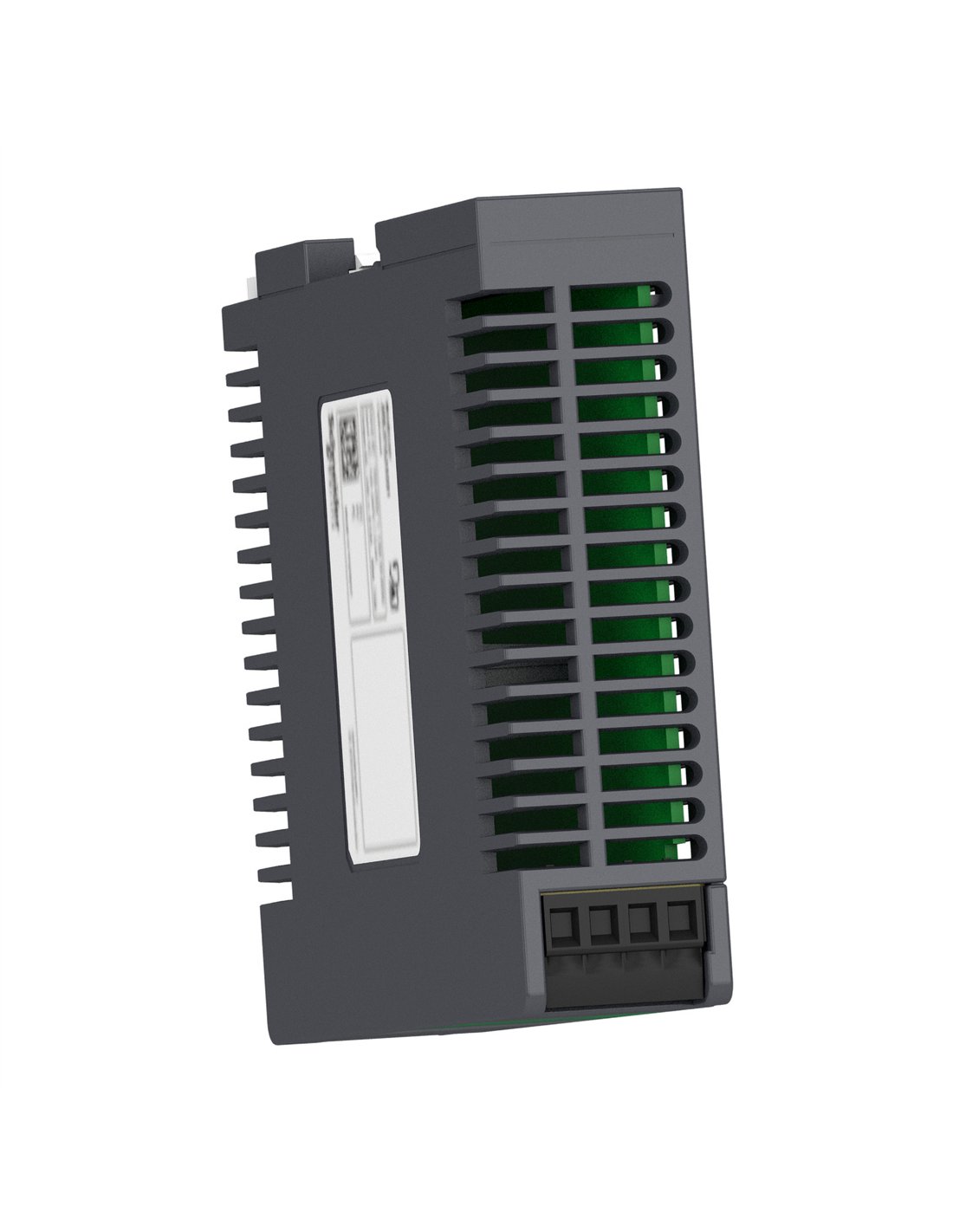

MODICON 12V DC 6.2A single-phase power supply with overload protection

The Modicon Premium regulated power supply is an efficient and reliable solution for automated systems. With an input range of 100-240 V AC and an output of 12 V DC at 6.2 A, this power supply is designed to offer a high degree of stability and protection in a variety of applications, from the simplest to the most complex.

• Product Type: Regulated Power Supply, Single-Phase
• Rated Power: 75 W
• Output Voltage: 12 V DC
• Output Current: 6.25 A
• Built-in protection against overload, short circuit, overvoltage, and undervoltage
• Wide Input Voltage Range: 100-240 V AC and 140-340 V DC
• Rated Mains Frequency: 50-60 Hz
• Connections: Screw terminals for input and output
• Protection Rating: IP20
• Operating temperature: -20…70 °C with current derating
• Estimated service life: 10 years
• Standards met: IEC 62368-1, EN/IEC 61010-1, among others
