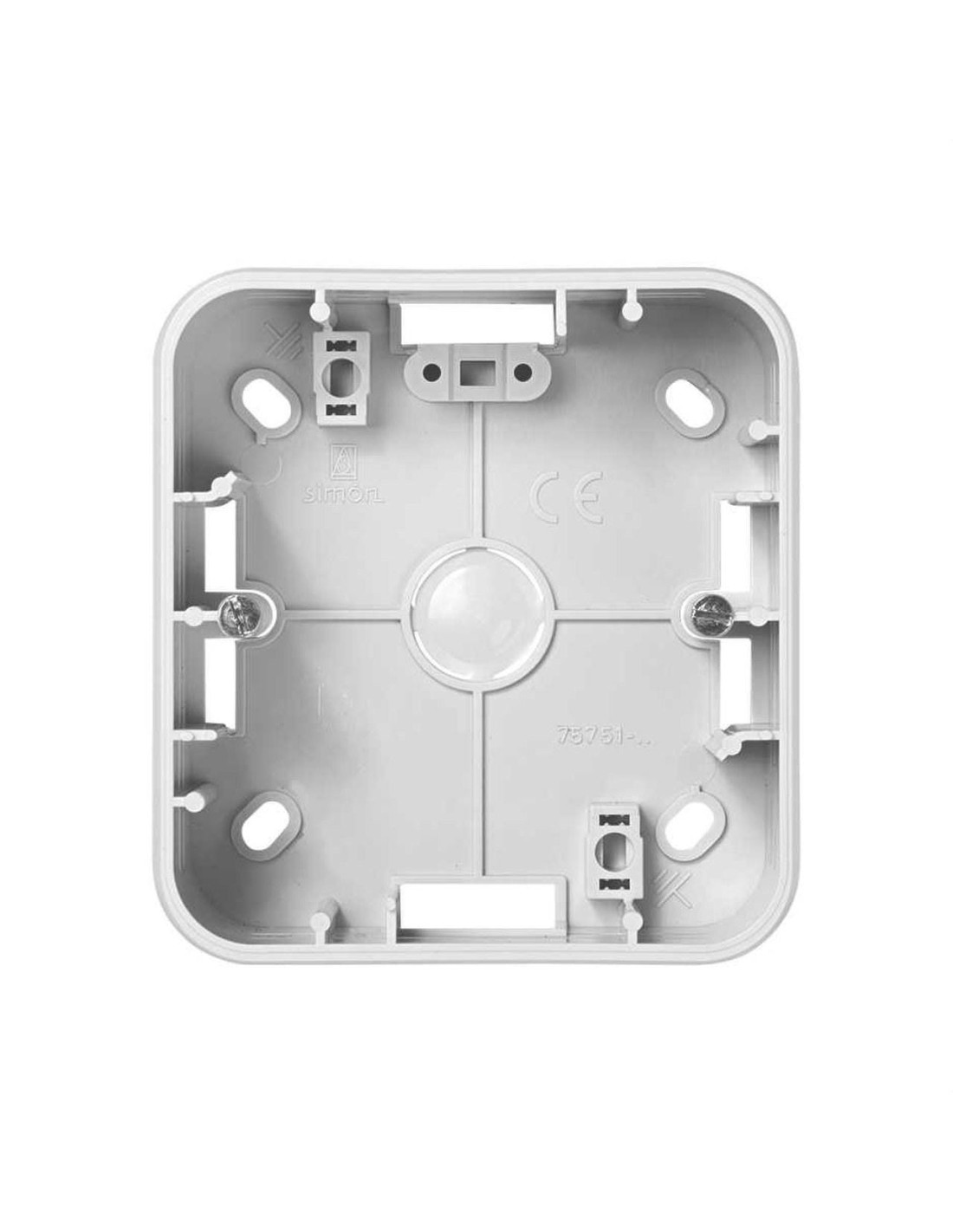

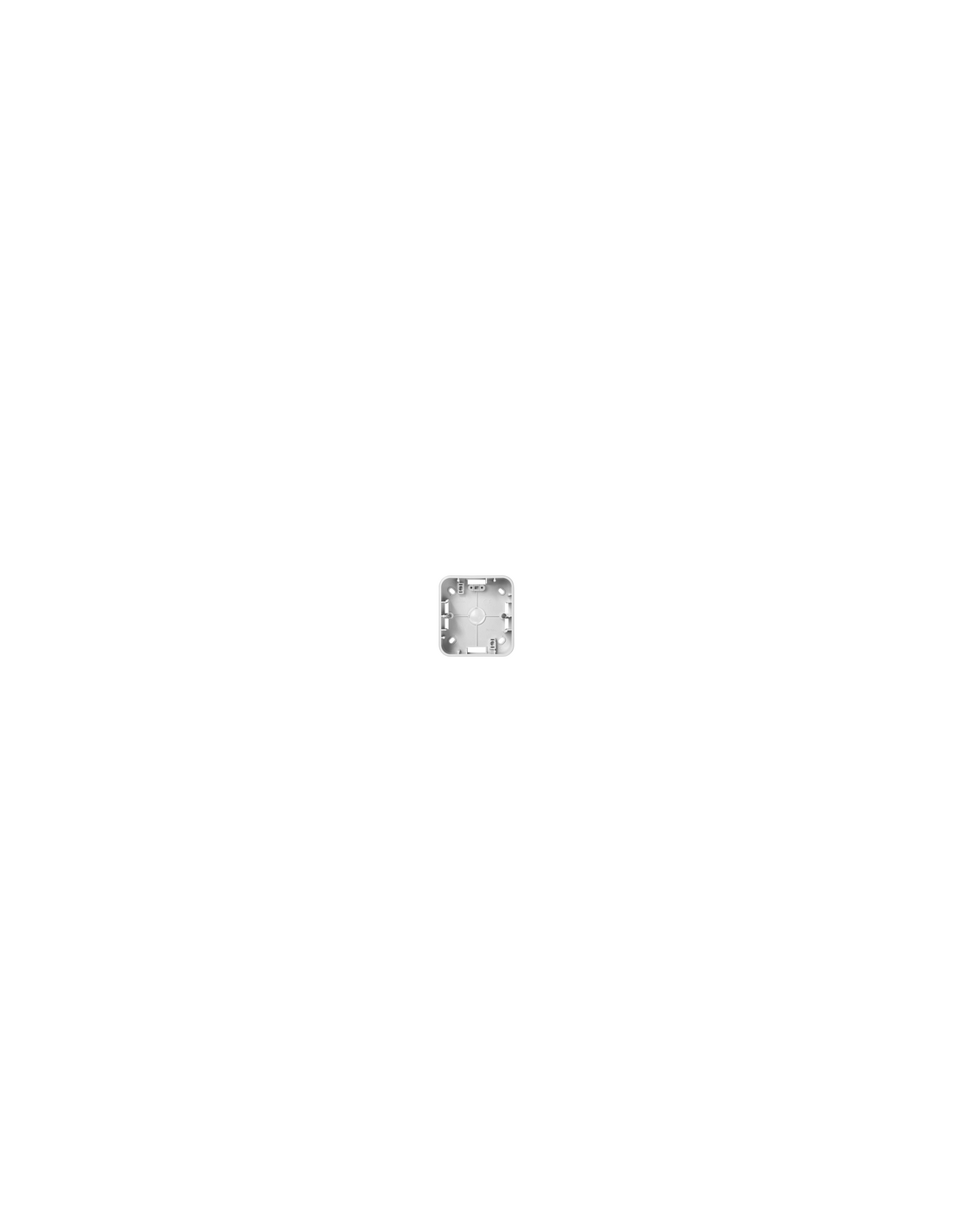

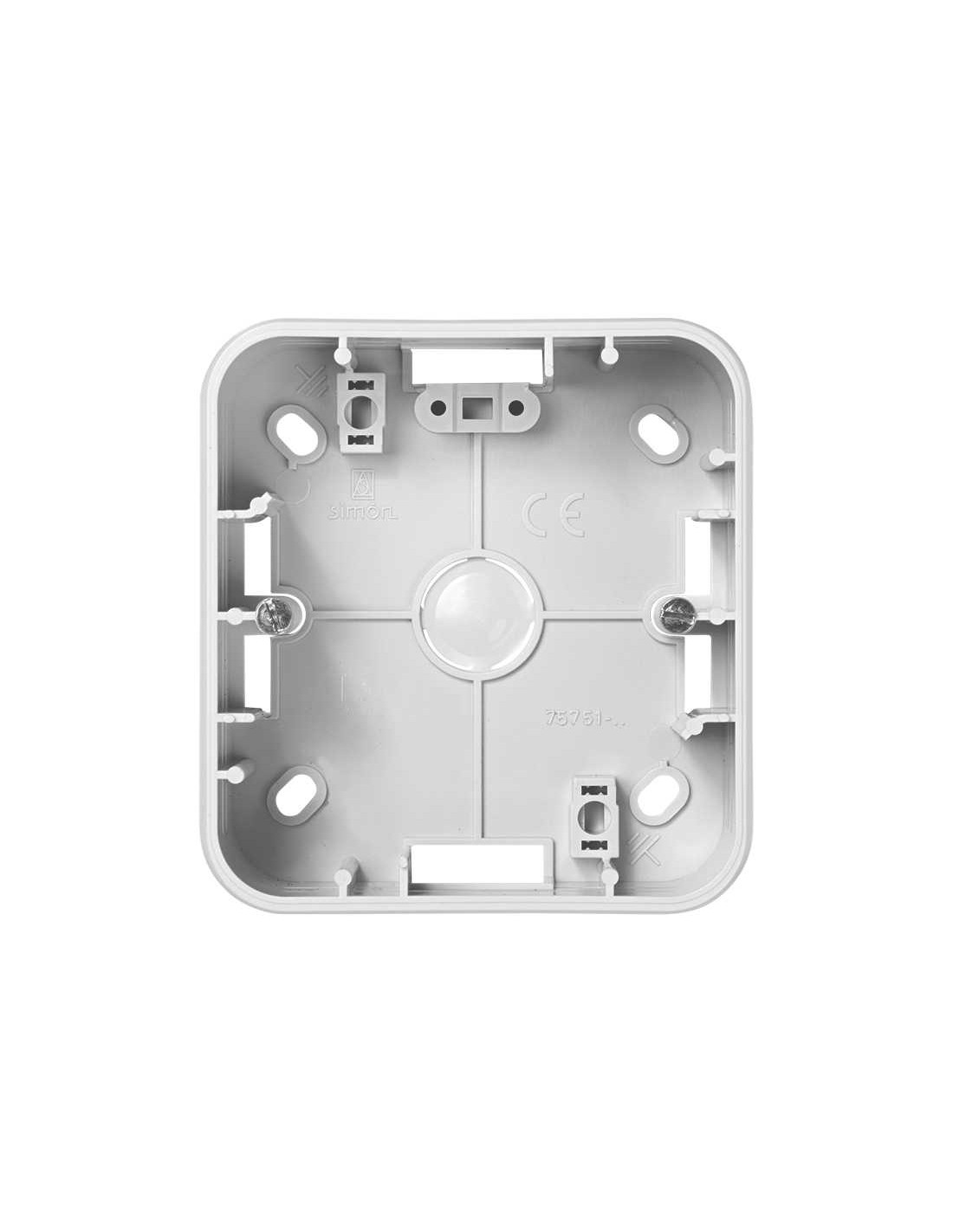

High surface Simon 75 box for 1 element white

The High surface box for 1 white Simon 75 is a component of the SERIE 75 - EMPOTRAR range, designed in white and square shape. Its versatility allows for both surface and recessed installation, adapting to horizontal or vertical mountings.

Technical characteristics

• Series: Simon 75
• Material: Thermoplastic
• Dimensions: 82 x 89 x 37 mm (Width, Height, Depth)
• Units per pack: 10
• Compatibility: Mechanisms Simon 75, Simon 77 and Simon 82
• ETIM class: EC000080
• Mounting systems: Surface mounted housing
• Number of modules: 1
• Origin: EN
• PVR: 8.549999999999999

Thanks to its thermoplastic construction, the piece is easy to clean with a soft cloth moistened in soapy water, avoiding abrasive products or chlorine to preserve its integrity.

For installation, a gap of 82x89 mm high and wide is required, with a minimum depth of 37 mm. The placement can be done by pressing the part or simply by placing it on the prepared surface.
