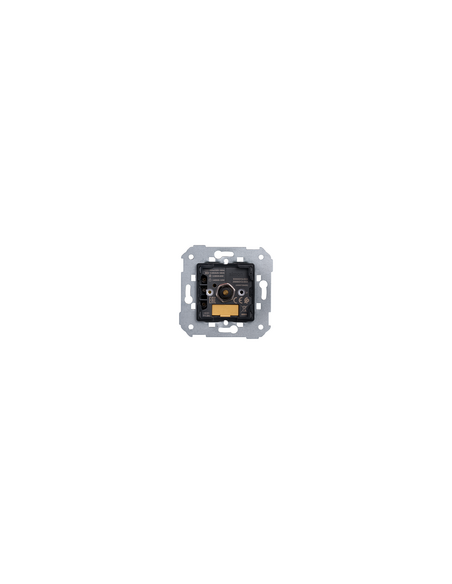

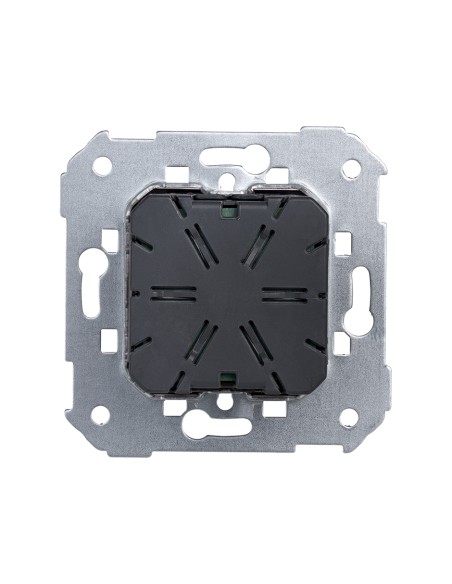

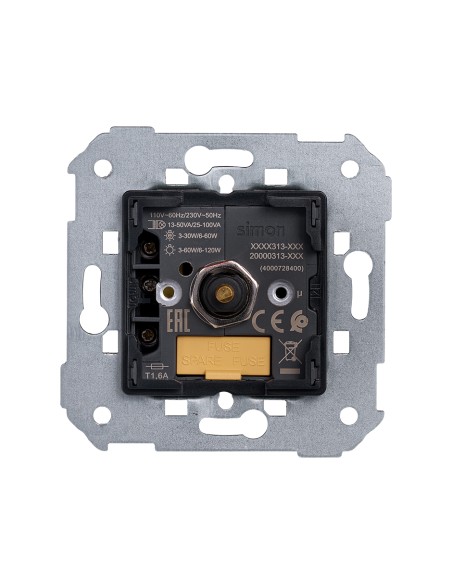

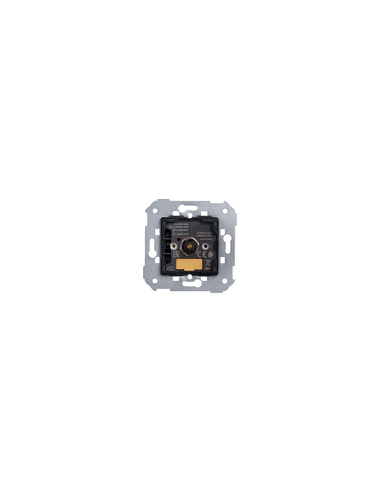

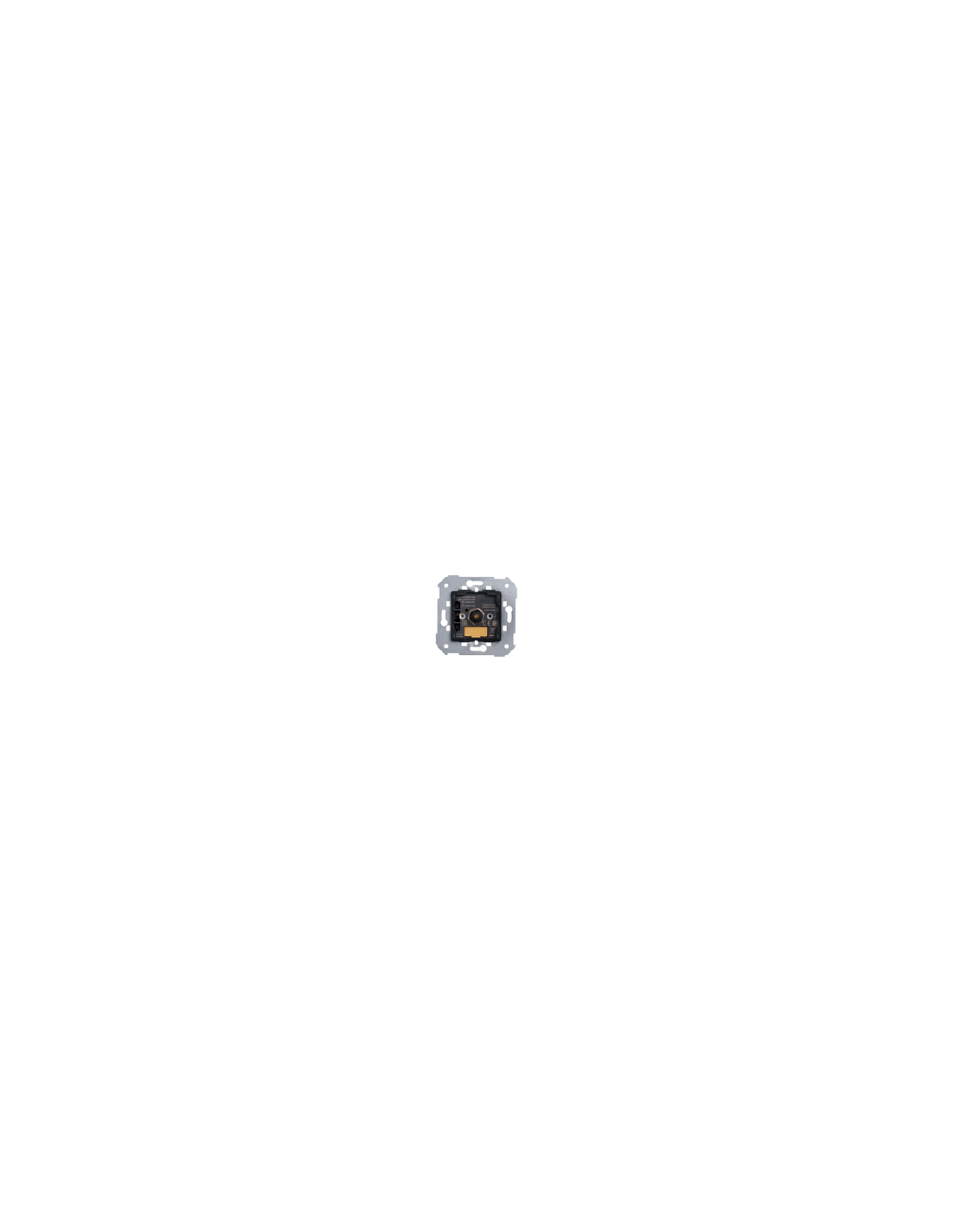

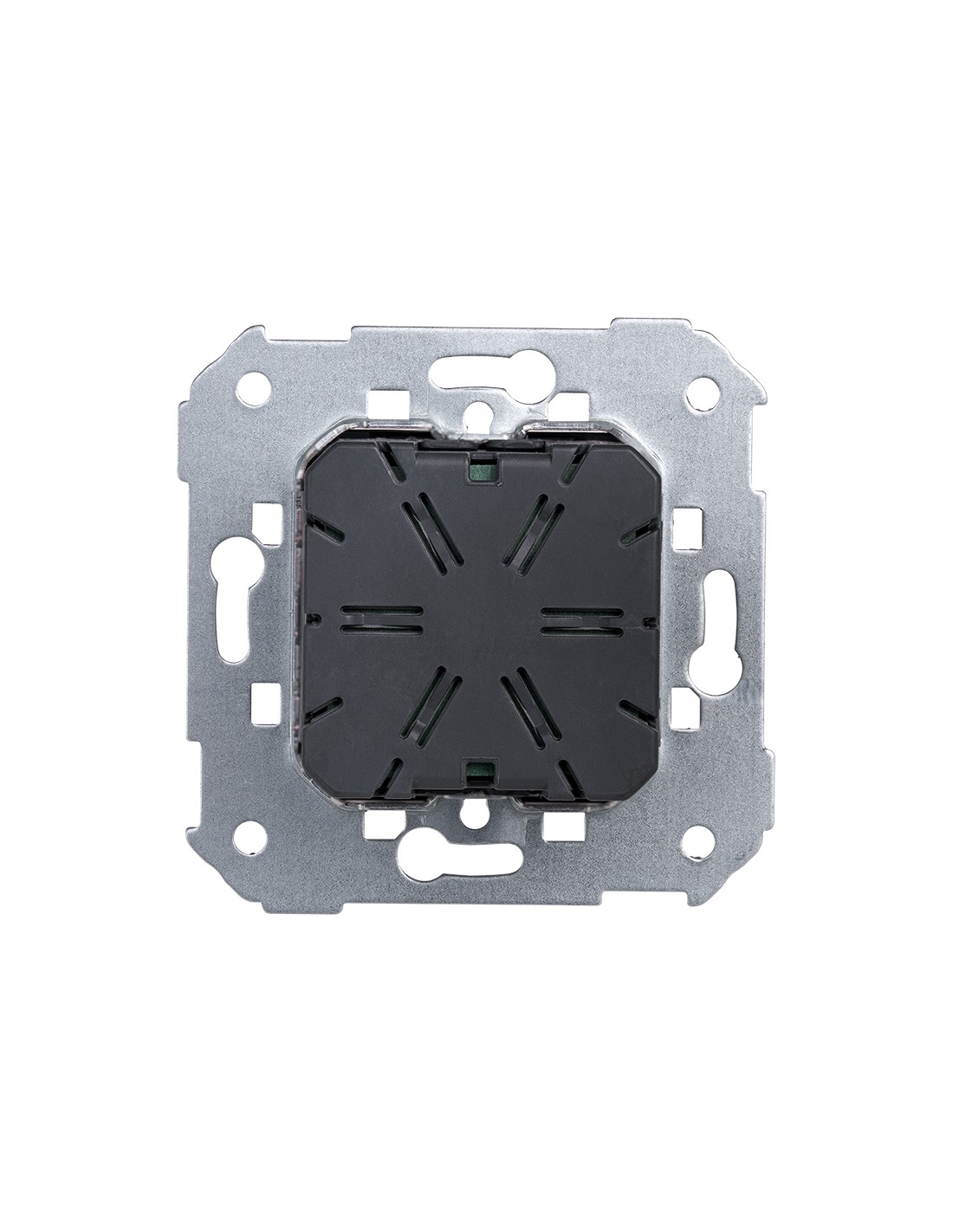

Simon 75 LED Dimmer Phase Cut 2-Wire No Neutral

The Simon 75 LED dimmer is a phase-cut electronic device designed to control intensity in dimmable LED lamps and compatible loads, allowing direct replacement of existing switches without the need for a neutral conductor.

Technical Specifications

• Series: Simon 75
• Nominal Voltage: 230 V~ at 50 Hz
• Max LED Power: up to 60 W (indicative range 6-120 W)
• Halogen power with transformer: up to 100 VA (indicative range 25-100 VA)
• Protection Rating: IP20
• Operating Temperature: 5 to 35 ºC
• Cable Section: 1.5 to 2.5 mm²
• Cable Stripping: 7 mm
• Installation Type: Recessed or Surface
• Orientations: Horizontal or Vertical
• Mounting: Universal with screw terminal connection
• Aesthetic Compatibility: Simon frames 27, 31, 75, 82 Concept, Detail and Nature
• Compliance: EN 60669-2-1, LVD, EMC and RoHS
• Warranty: 3 years

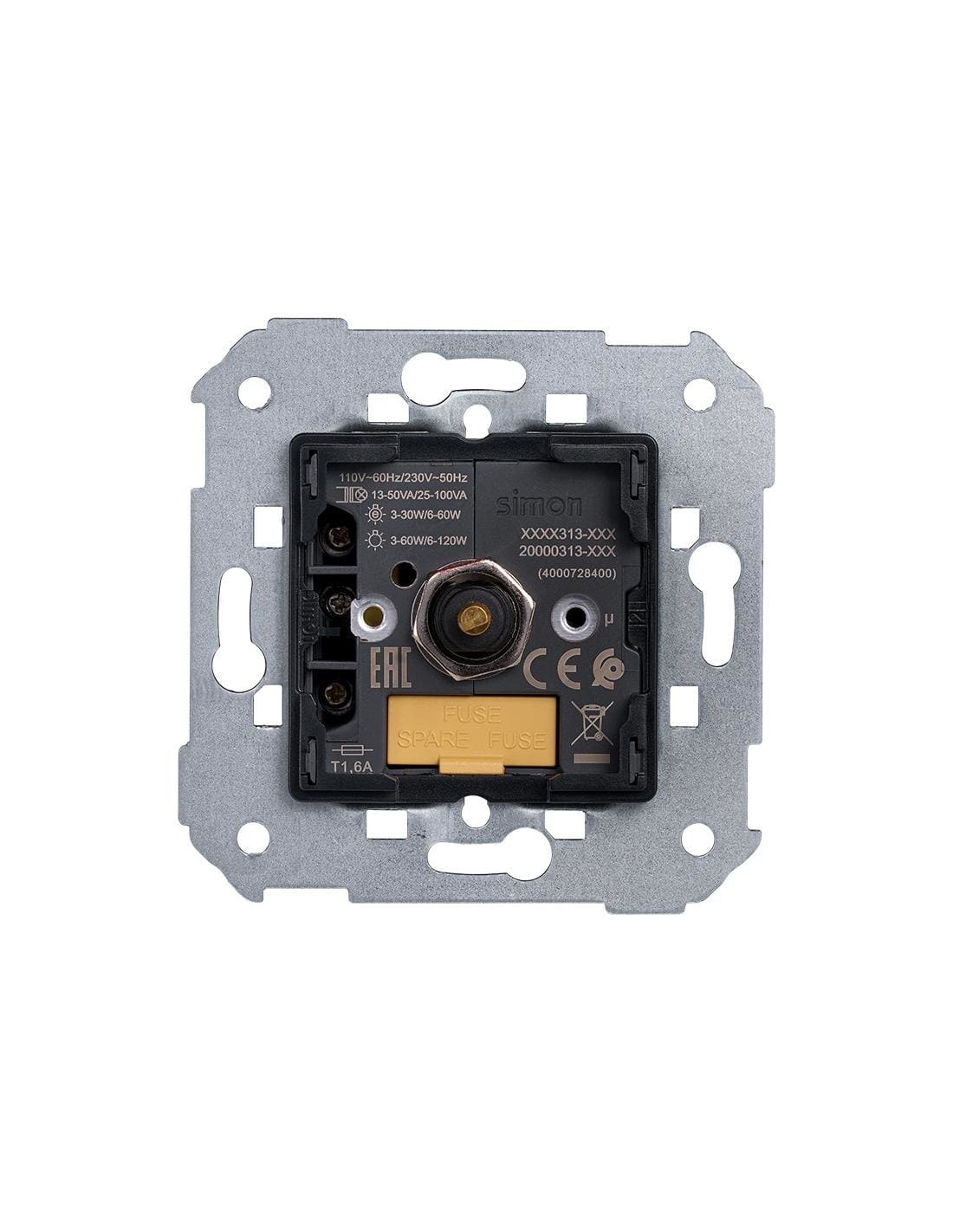

Thanks to its internal potentiometer, it allows adjustment of the minimum regulation level to eliminate flickering and ensure stable operation in LED devices. Its screw terminal system ensures safe and durable connections.

Installation is simple using a universal box, suitable for both recessed and surface mounting, integrating perfectly into electrical renovation projects requiring precise control of light flux.
