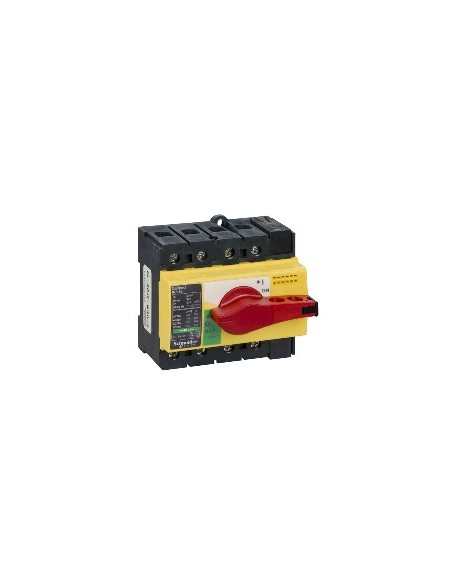

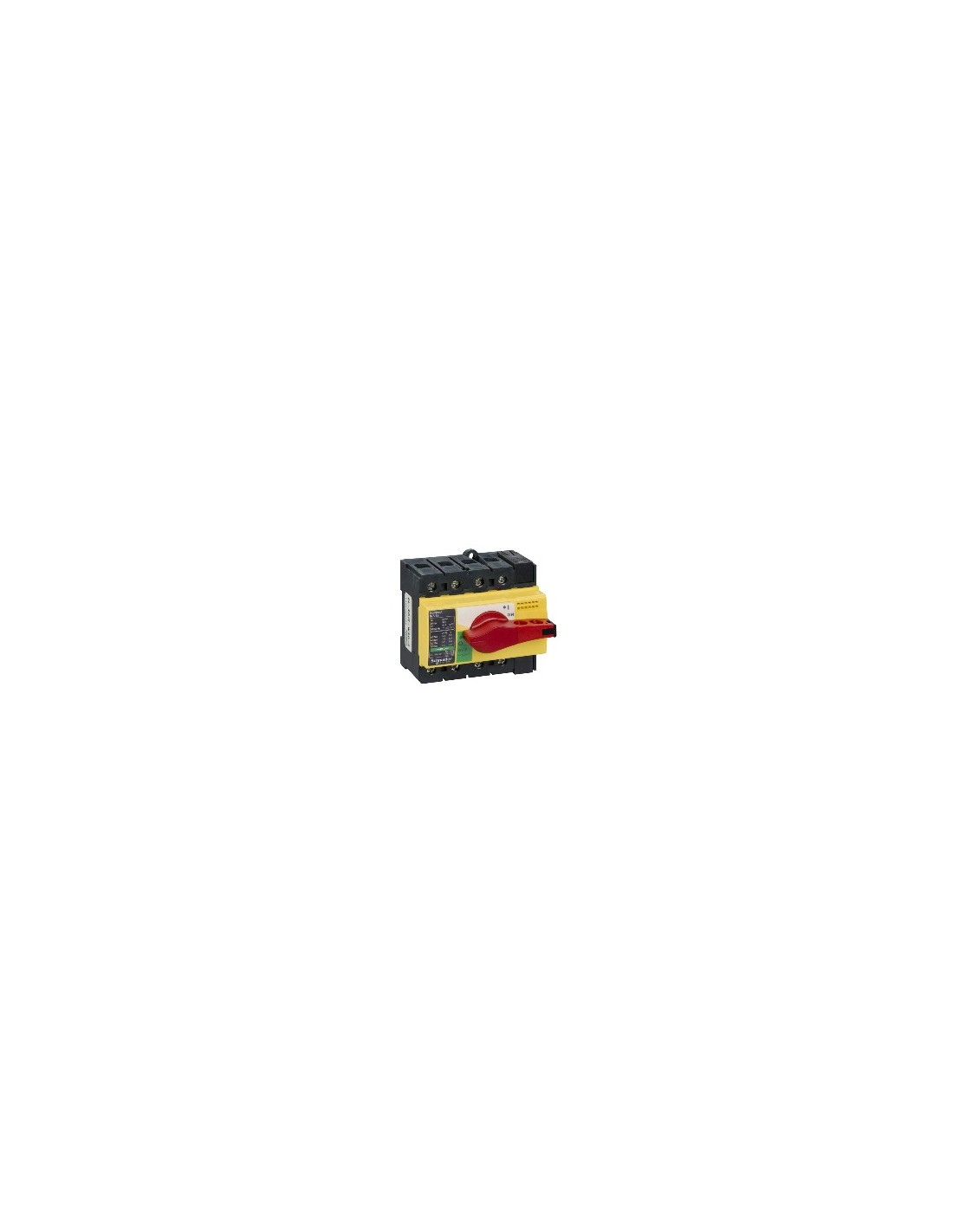

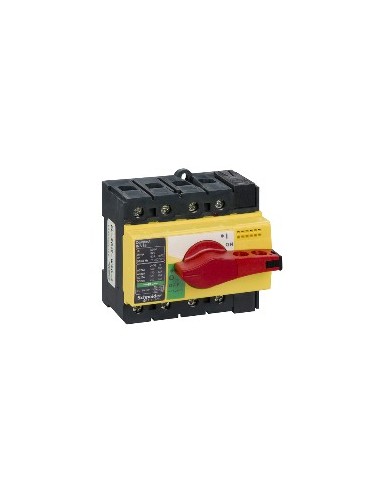

Interpact INS63 4P Red Isolating Switch

Compact 4-pole isolating switch from the ComPact range, designed for safe disconnection of electrical circuits in industrial and commercial installations. Fixed DIN rail mounting and rotary control allow for simple manual operation. Features a red handle and contact position indicator for visual verification of connection status.

Technical Specifications

• Number of poles: 4P
• Network type: AC
• Frequency: 50/60 Hz
• Rated operating current: AC-22A, state 1 63 A AC 50/60 Hz 220/240 V, 380/415 V, 440/480 V, 500 V; AC-23A, state 1 40 A and 63 A AC 50/60 Hz 500 V; DC-22A, state 1 63 A DC 125 V 2 poles in series; DC-23A, state 1 63 A DC 125 V 2 poles in series; DC-22A, state 1 63 A DC 250 V 4 poles in series; DC-23A, state 1 63 A DC 250 V 4 poles in series
• Rated insulation voltage: 690 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 63 A at 60 °C
• Rated short-circuit breaking capacity: 15 kA for isolating switch only 500 V AC 50/60 Hz; 75 kA with upstream circuit breaker 500 V AC 50/60 Hz
• Rated operating voltage: 500 V AC 50/60 Hz, 250 V DC
• Breaking capability: Yes
• Contact position indicator: Yes
• Visible breaking: No
• Pollution degree: 3
• Control type: Rotary handle
• Handle color: Red
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Frontal
• Bottom connection: Front
• Cable cross-section: 1.5…50 mm²
• Maximum power: AC-23, state 1 15 kW at 220/240 V AC 50/60 Hz, 22 kW at 500/525 V AC 50/60 Hz, 30 kW at 380/415 V AC 50/60 Hz, 30 kW at 440 V AC 50/60 Hz
• Service type: Continuous
• Intermittent service class: Class 120 - 60 %
• Cabinet dimensions: 190 mm x 115 mm x 55 mm
• Withstand current: 0.067 kA for 20 s, 1.73 kA for 3 s, 3 kA for 1 s, 5.5 kA for 30 s according to instantaneous and demand values
• Mechanical durability: 20000 cycles
• Electrical durability: AC-22A, state 1 1500 cycles at 220/240 V, 380/415 V, 440 V, 500 V AC; AC-23A, state 1 1500 cycles at 220/240 V, 380/415 V, 440 V, 500 V AC; DC-22A, state 1 1500 cycles at 250 V DC 4 poles in series; DC-23A, state 1 1500 cycles at 250 V DC 4 poles in series
• Connection pitch: 18 mm
• Height: 85 mm
• Width: 90 mm
• Depth: 62.5 mm
• Product weight: 0.6 kg
• Compatibility code: INS63
• Standards: EN > 40 A Instantaneous and demand values
• Product certifications: CCC KEMA-KEUR
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container
