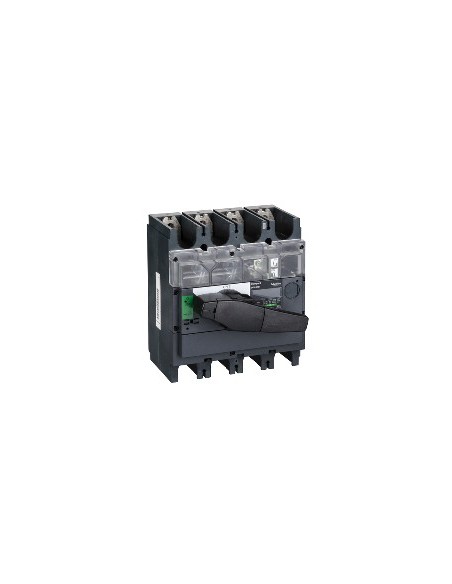

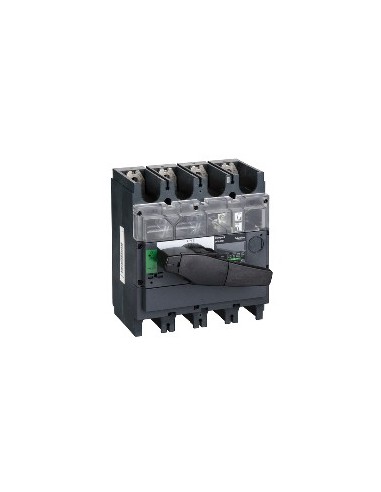

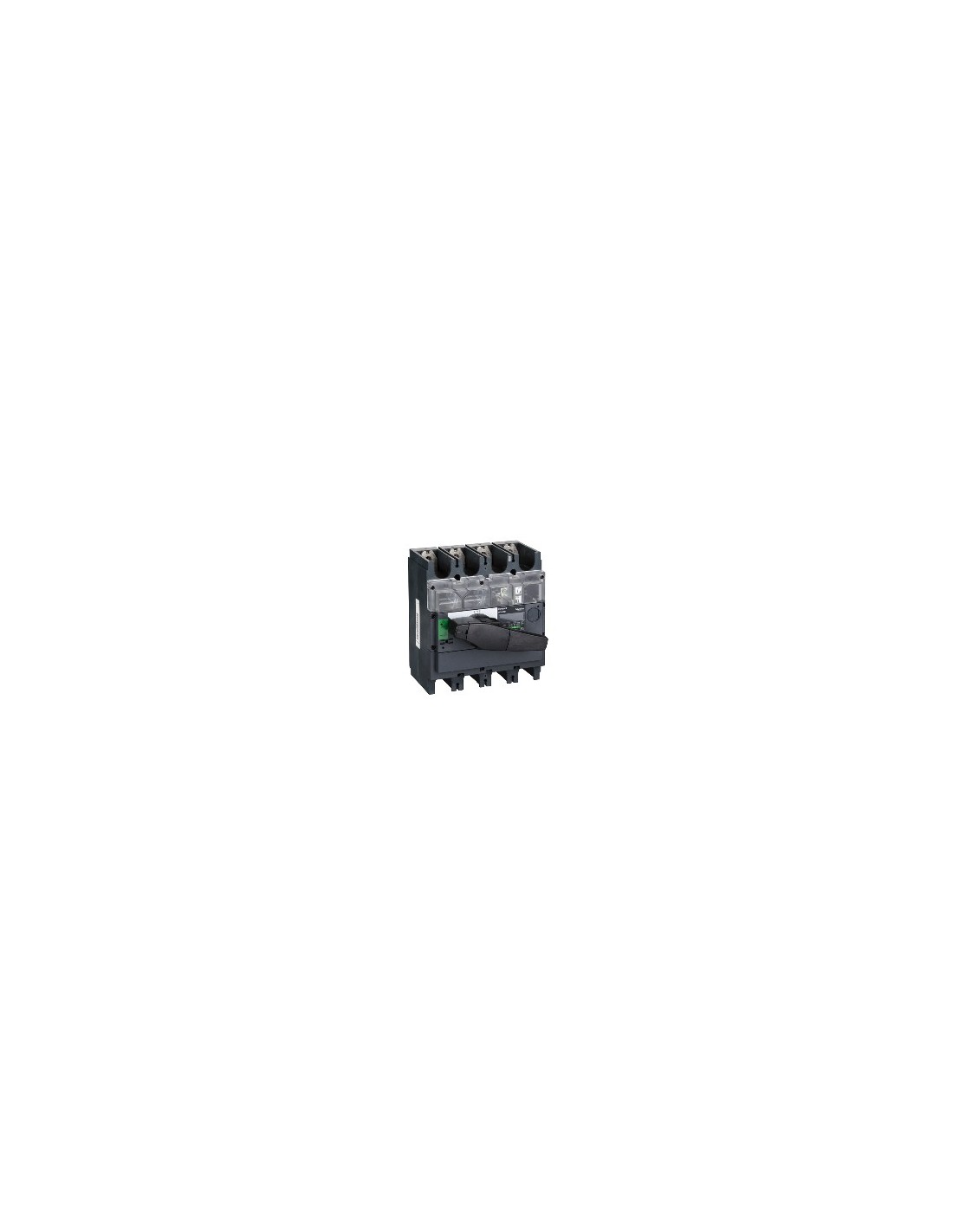

Compact Isolating Switch INV630 4-Pole 630 A Black

Compact 4-pole isolating switch designed for the safe disconnection of electrical circuits in industrial installations. Features visible breaking and a black rotary handle, allowing immediate visual verification of the open or closed state. Its fixed structure and rail mounting facilitate integration into electrical panels.

Technical Features

• Number of poles: 4P
• Network type: Alternating current AC
• Network frequency: 50/60 Hz
• Handle color: Black
• Rated operating current: AC-23A, state 1 500 A AC 50/60 Hz 500/525 V, AC-23A, state 1 500 A AC 50/60 Hz 660/690 V, AC-21A, state 1 630 A AC 50/60 Hz 220/240 V, AC-21A, state 1 630 A AC 50/60 Hz 380/415 V, AC-21A, state 1 630 A AC 50/60 Hz 440/480 V, AC-21A, state 1 630 A AC 50/60 Hz 480 V NEMA, AC-21A, state 1 630 A AC 50/60 Hz 500/525 V, AC-21A, state 1 630 A AC 50/60 Hz 660/690 V, AC-22A, state 1 550 A AC 50/60 Hz 660/690 V, AC-22A, state 1 630 A AC 50/60 Hz 220/240 V, AC-22A, state 1 630 A AC 50/60 Hz 380/415 V, AC-22A, state 1 630 A AC 50/60 Hz 440/480 V, AC-22A, state 1 630 A AC 50/60 Hz 480 V NEMA, AC-22A, state 1 630 A AC 50/60 Hz 500/525 V, AC-23A, state 1 630 A AC 50/60 Hz 220/240 V, AC-23A, state 1 630 A AC 50/60 Hz 380/415 V, AC-23A, state 1 630 A AC 50/60 Hz 440/480 V, AC-23A, state 1 630 A AC 50/60 Hz 480 V NEMA, AC-23B, state 1 630 A AC 50/60 Hz 220/240 V, AC-23B, state 1 630 A AC 50/60 Hz 380/415 V, AC-23B, state 1 630 A AC 50/60 Hz 440/480 V, AC-23B, state 1 630 A AC 50/60 Hz 480 V NEMA, AC-23B, state 1 630 A AC 50/60 Hz 500/525 V, AC-23B, state 1 630 A AC 50/60 Hz 660/690 V, DC-21A, state 1 550 A DC 125 V 2 poles in series, DC-22A, state 1 550 A DC 125 V 2 poles in series, DC-23A, state 1 550 A DC 125 V 2 poles in series, DC-23B, state 1 630 A DC 125 V 2 poles in series, DC-21A, state 1 550 A DC 250 V 4 poles in series, DC-22A, state 1 550 A DC 250 V 4 poles in series, DC-23A, state 1 550 A DC 250 V 4 poles in series, DC-23B, state 1 630 A DC 250 V 4 poles in series
• Rated insulation voltage: 750 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 630 A at 60 °C
• Rated short-circuit breaking capacity: 330 kA with upstream circuit breaker 690 V AC 50/60 Hz 50 kA, isolated switch only 690 V AC 50/60 Hz
• Rated operating voltage: 690 V AC 50/60 Hz, 250 V DC
• Breaking capacity: Yes
• Contact position indicator: Yes
• Visible breaking: Yes
• Contamination degree: 3
• Control type: Rotary handle
• Mounting type: Fixed
• Mounting support: Rail
• Top connection: Front
• Bottom connection: Front
• Maximum power: AC-23, state 1 200 kW at 220/240 V AC 50/60 Hz, AC-23, state 1 200 kW at 230 V AC 50/60 Hz, AC-23, state 1 315 kW at 380/415 V AC 50/60 Hz, AC-23, state 1 375 kW at 480 V AC 50/60 Hz, AC-23, state 1 400 kW at 440 V AC 50/60 Hz, AC-23, state 1 400 kW at 500/525 V AC 50/60 Hz, AC-23, state 1 560 kW at 660/690 V AC 50/60 Hz
• Rated service: Continuous
• Permissible short-time current: 11.5 kA for 3 s electrical durability, 20 kA for 1 s electrical durability, 4 kA for 30 s electrical durability, 4.9 kA for 20 s electrical durability
• Mechanical durability: 10000 cycles
• Electrical durability: AC-21A, state 1 1000 cycles 440 V AC 50/60 Hz, AC-21A, state 1 1000 cycles 500 V AC 50/60 Hz, AC-21A, state 1 1000 cycles 690 V AC 50/60 Hz, AC-22A, state 1 1000 cycles 440 V AC 50/60 Hz, AC-22A, state 1 1000 cycles 500 V AC 50/60 Hz, AC-22A, state 1 1000 cycles 690 V AC 50/60 Hz, AC-23A, state 1 1000 cycles 440 V AC 50/60 Hz, AC-23A, state 1 1000 cycles 500 V AC 50/60 Hz, AC-23A, state 1 1000 cycles 690 V AC 50/60 Hz, DC-21A, state 1 1000 cycles 250 V DC, DC-22A, state 1 1000 cycles 250 V DC, DC-23A, state 1 1000 cycles 250 V DC, AC-23B, state 1 200 cycles 500 V AC 50/60 Hz, AC-23B, state 1 200 cycles 690 V AC 50/60 Hz, DC-23B, state 1 200 cycles 250 V DC
• Connection pitch: 45 mm
• Height: 205 mm
• Width: 185 mm
• Depth: 130 mm
• Product weight: 4.9 kg
• Compatibility code: INV630
• Standards: EN 40 A Instantaneous and demand values
• Product certifications: CCC KEMA-KEUR
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• REACH Regulation: Reference does not contain SVHC
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: Product outside the scope of China RoHS. Informational declaration of substances
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container
