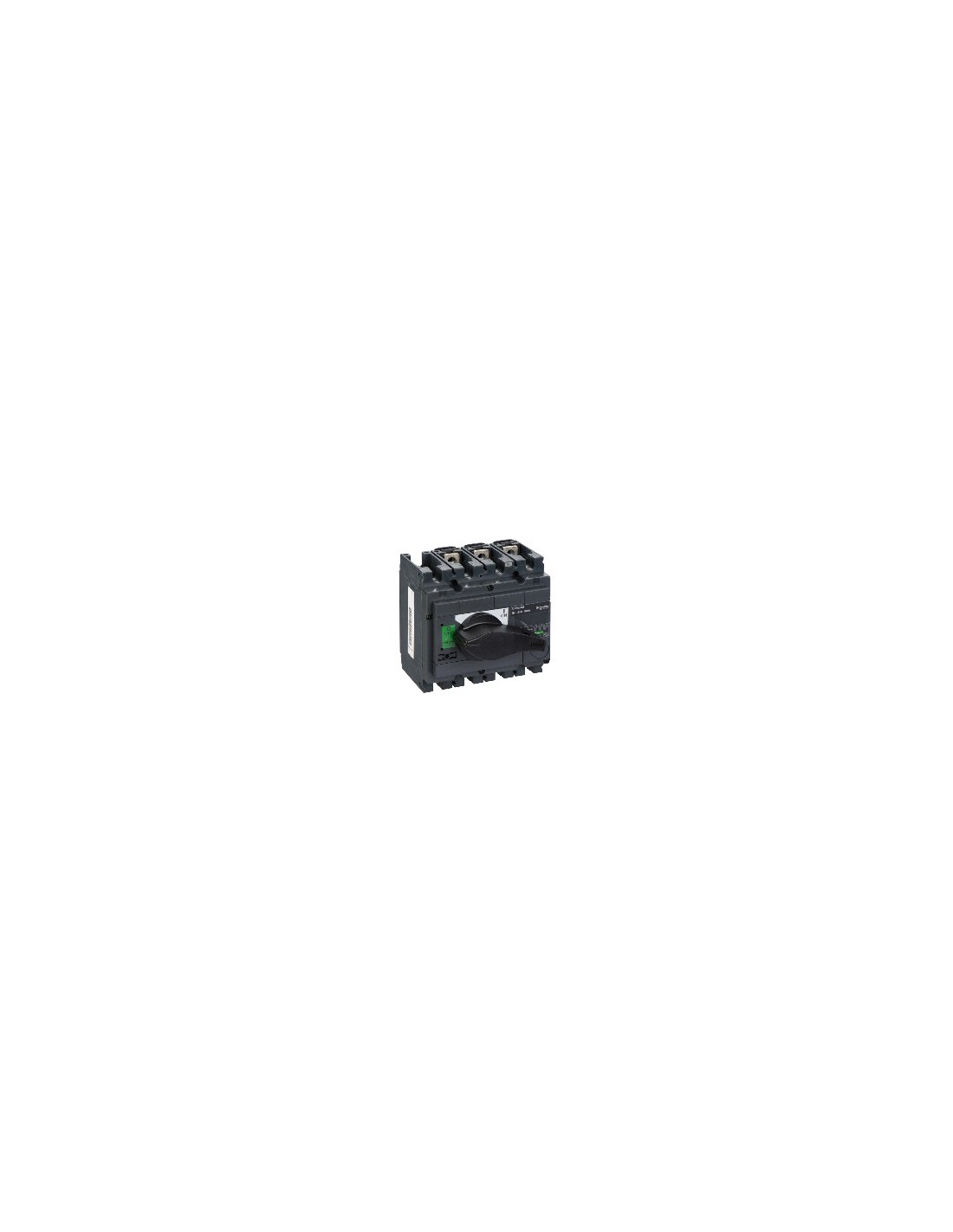

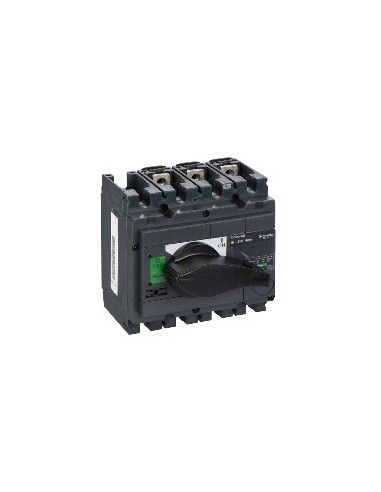

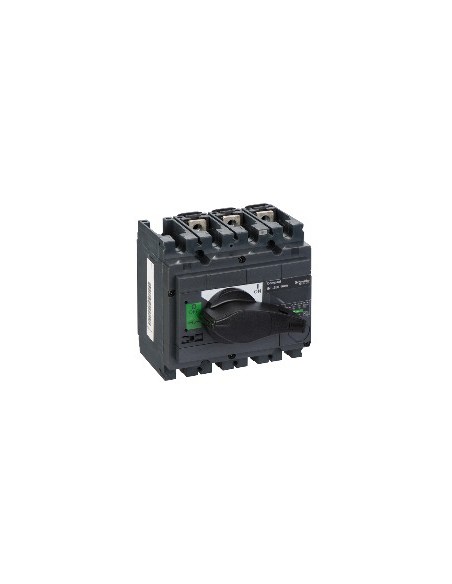

3P 160 A ComPact Isolating Switch

ComPact range 3P section switch, Interpact INS250 model, designed for industrial applications with alternating and continuous current. It is used to disconnect electrical circuits safely, ensuring insulation and power control in electrical installations. Its compact design allows direct integration into electrical panels.

Technical characteristics

• Number of poles: 3P
• Network type: Continuous current AC
• Network frequency: 50/60 Hz
• Nominal current of employment: 160 A
• Nominal insulation voltage: 750 V AC 50/60 Hz
• Nominal operating voltage: 250 V DC current, 690 V AC 50/60 Hz
• Nominal short circuit capacity: 30 kA single switch-selector 690 V AC 50/60 Hz
• Conventional thermal current: 160 A at 60 °C
• Sewing power: Yes
• Contact position indicator: Yes
• Visible cut: No
• Degree of contamination: 3
• Type of control: Rotary Command
• Handle colour: Black
• Type of assembly: Fixed
• Mounting bracket: Rail plate
• Top connection: Front
• Connection down: Front
• Maximum power: AC-23, status 1 110 kW at 500/525 V AC 50/60 Hz, 90 kW at 440 V AC 50/60 Hz, 90 kW at 660/690 V AC 50/60 Hz
• Mechanical durability: 15000 cycles
• Electrical durability: AC-22A and AC-23A, 1 1500 cycles in 440 V, 500 V and 690 V AC 50/60 Hz; DC-22A and DC-23A, 1 1500 cycles in 125 V DC 2 poles in series
• Admissible temporal current: 1.8 kA (30 s), 2.2 kA (20 s), 4.9 kA (3 s), 8.5 kA (1 s)
• Connection step: 35 mm
• Height: 136 mm
• Width: 140 mm
• Depth: 96 mm
• Weight of product: 2 kg
• Degree of IP protection: IP40 according to On / Off Ig
• Level of protection IK: IK07 according to H
• Operating ambient temperature: -25...70 °C
• Storage ambient temperature: -50...85 °C
• Standards: En> 40 A Instant and demand values
• Certifications: CCC, KEMA-KEUR
• Sustainable supply status: Product Green Premium
• EU RoHS Directive: As per
• No mercury: Yes
• REACh Regulation: Reference does not contain SVHC
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system
