Available In stock 346 Items Brand Lifud Reference LEDME LF-ACT020D-0550-42

€9.67

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Power (W) 20 W
Protection IP20
Adjustable Yes

20 W Triac adjustable drive, DC 25-40 V continuous output, 400-550 mA adjustable current. Power supply 220-240 V AC, power factor 0.9. Protection IP20 and 4 kV overvoltage. It works in temperature ranges from -30°C to +50°C. Made of polycarbonate (PC), compact design 122x40x25 mm.

Description

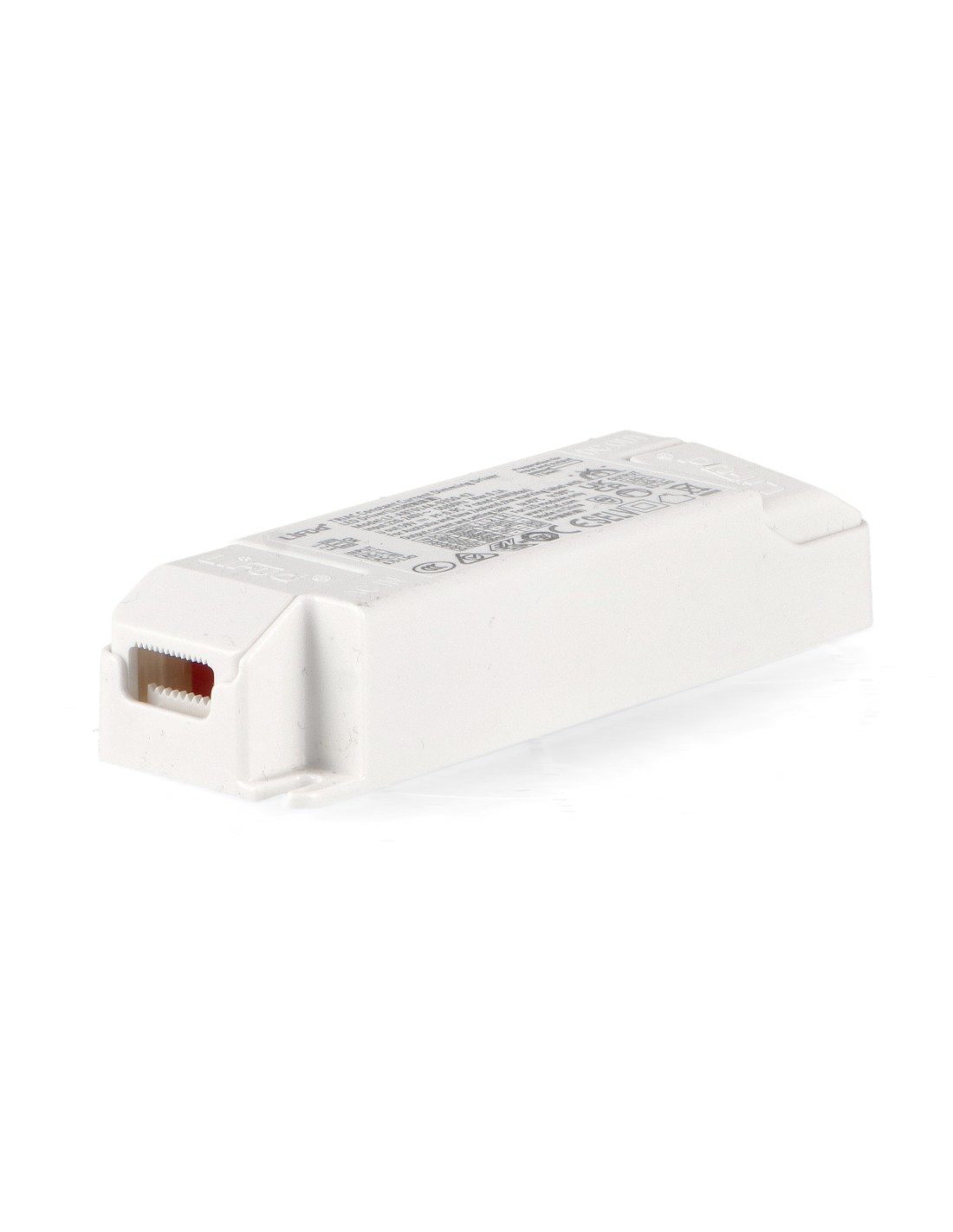

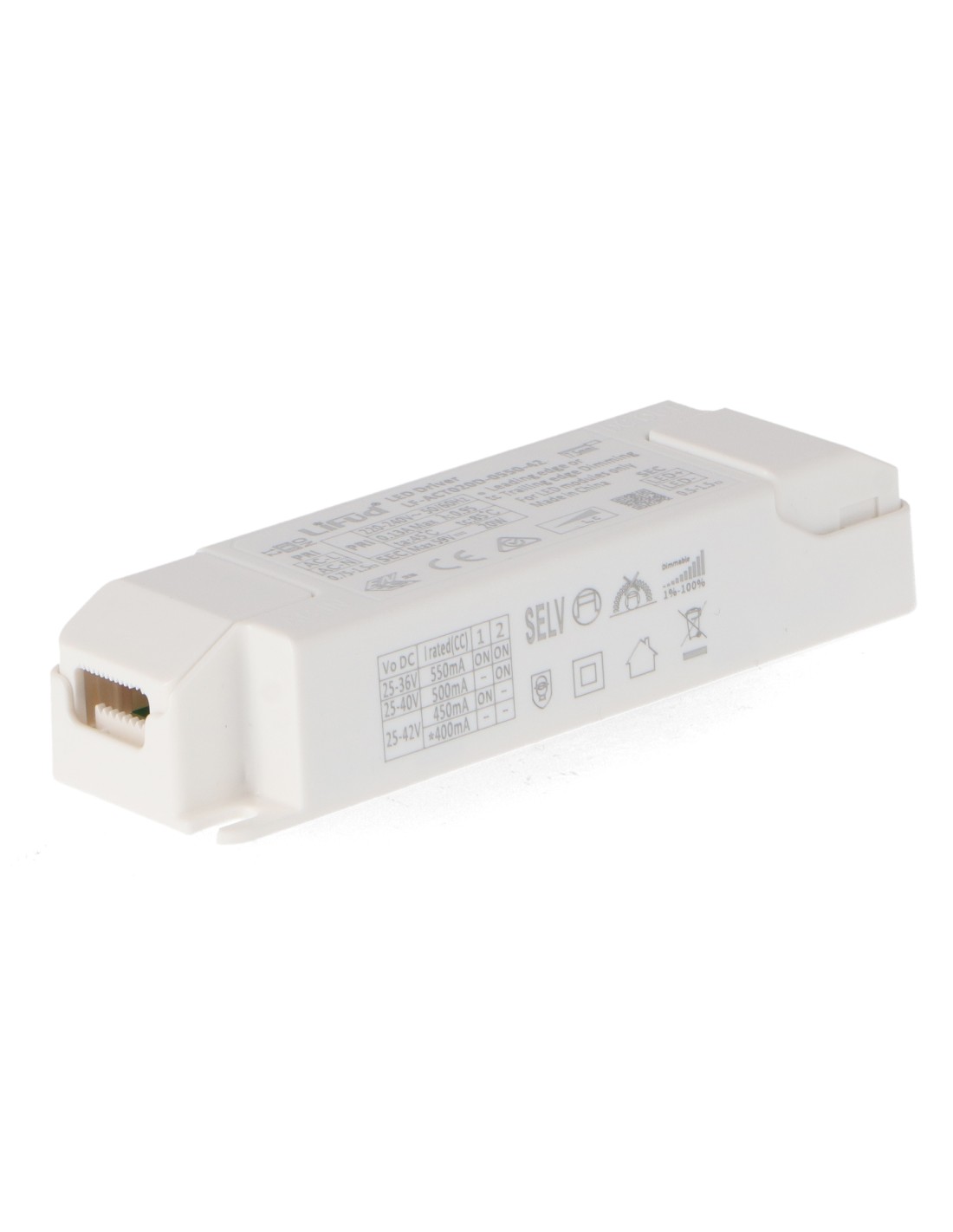

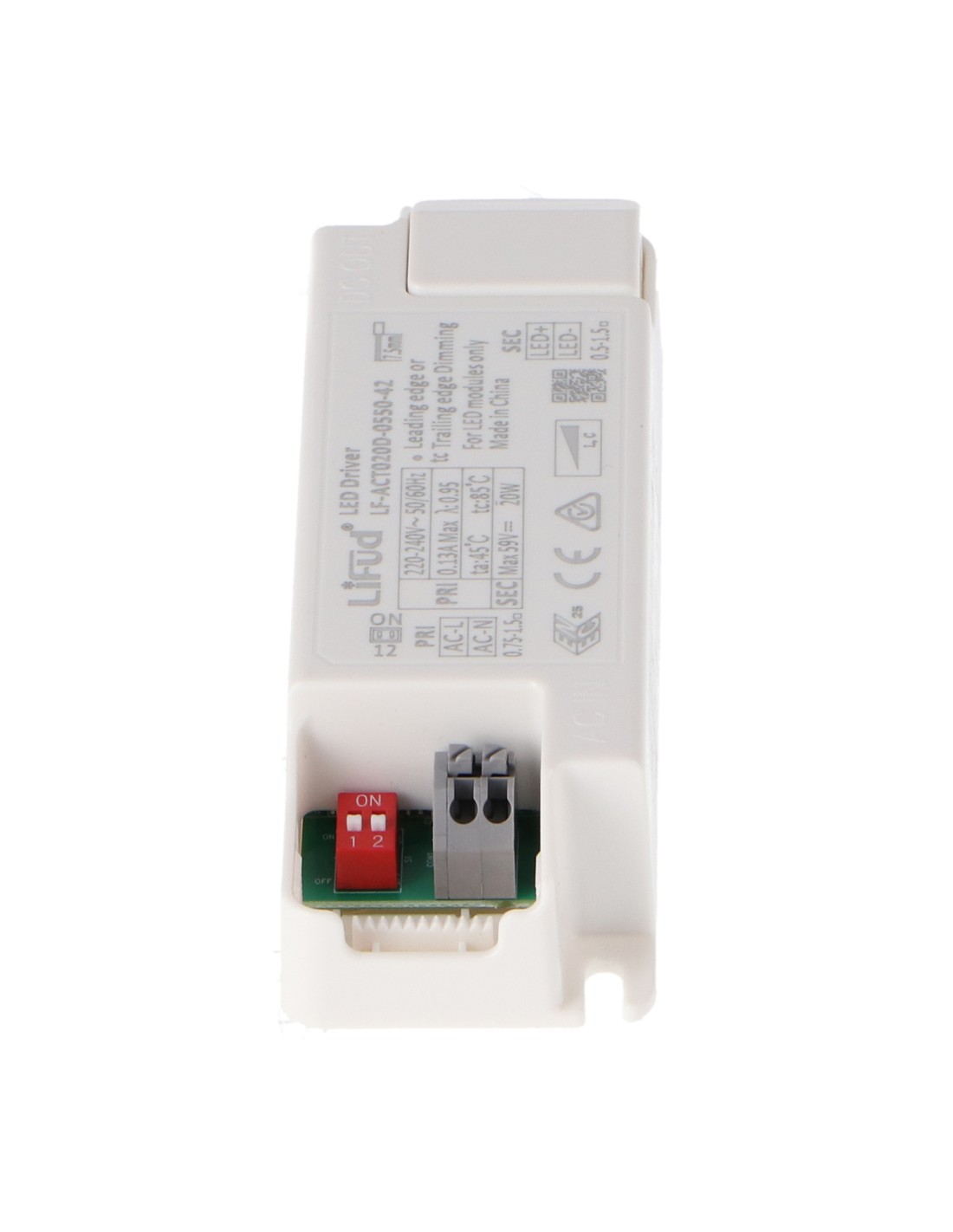

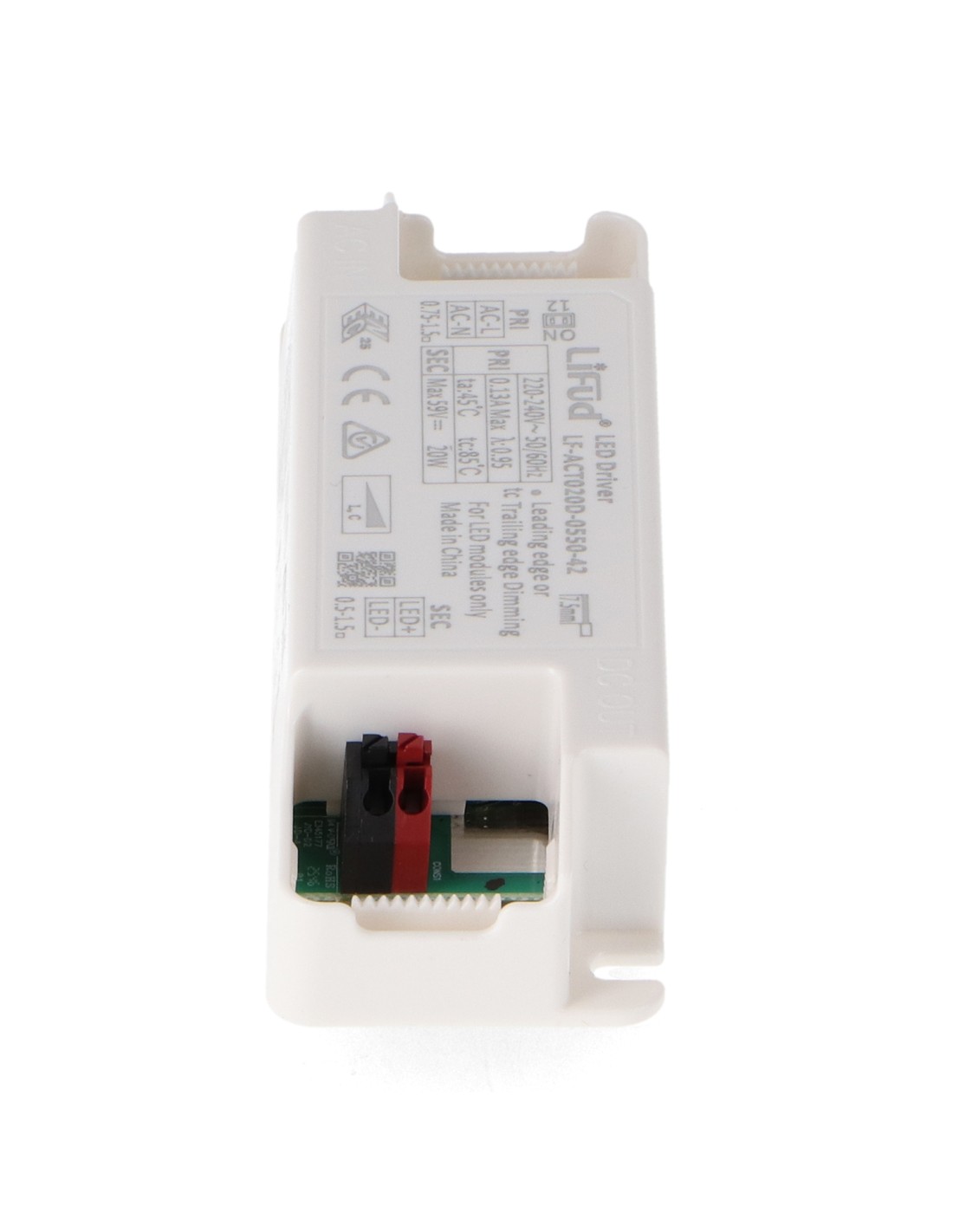

Lifud brand Triac adjustable driver, designed to power LED systems with continuous output of 25-40V DC and maximum power of 20W. Compatible with 220-240V AC power voltages, it offers a smooth regulation by controlling Triac without blinking (not flicker). Its compact and robust design, with dimensions of 122x40x25 mm and made of PC material, ensures a stable operation in environments with temperatures between -30°C and +50°C.

Technical characteristics

Maximum power: 20W
Power supply: 220-240V AC
Departure: 25-40V DC
Current Intensity: 400-550 mA
Regulatory: Triac
Power Factor: 0.9
Protection: IP20
Overvoltage protection: 4 kV
Working temperature: -30°C ~ +50°C
Material: PC
Dimension: 122x40x25 mm
Guarantee: 5 years

Product Details

Eléctrico

Nominal voltage (V)	220-240 V
Current type	AC

Iluminación

Power (W)	20 W
Adjustable	Yes

Protección

Protection	IP20

Otras

Manufacturer	Lifud
Reference	LEDME LF-ACT020D-0550-42
Material	PC

Información legal

Fabricante	Lifud
Dirección	C/ Barenys, 21 Pol. Ind. Alba, 43480 Vila-Seca, ES
Email	[email protected]
Teléfono	+34 977947947
Referencia	LEDME LF-ACT020D-0550-42

Advertencias de seguridad

No

In stock 346 Items

Downloads

Product sheet Store PDF Download
