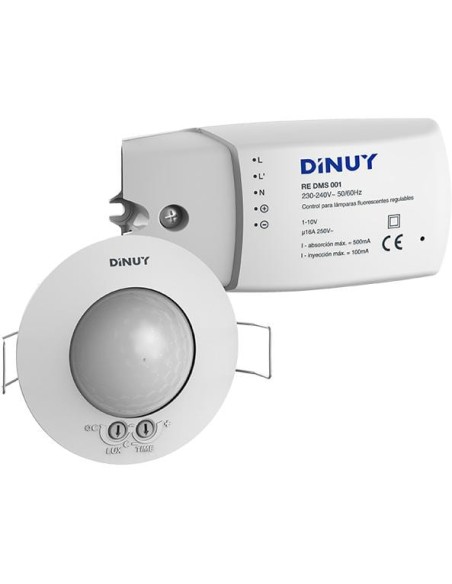

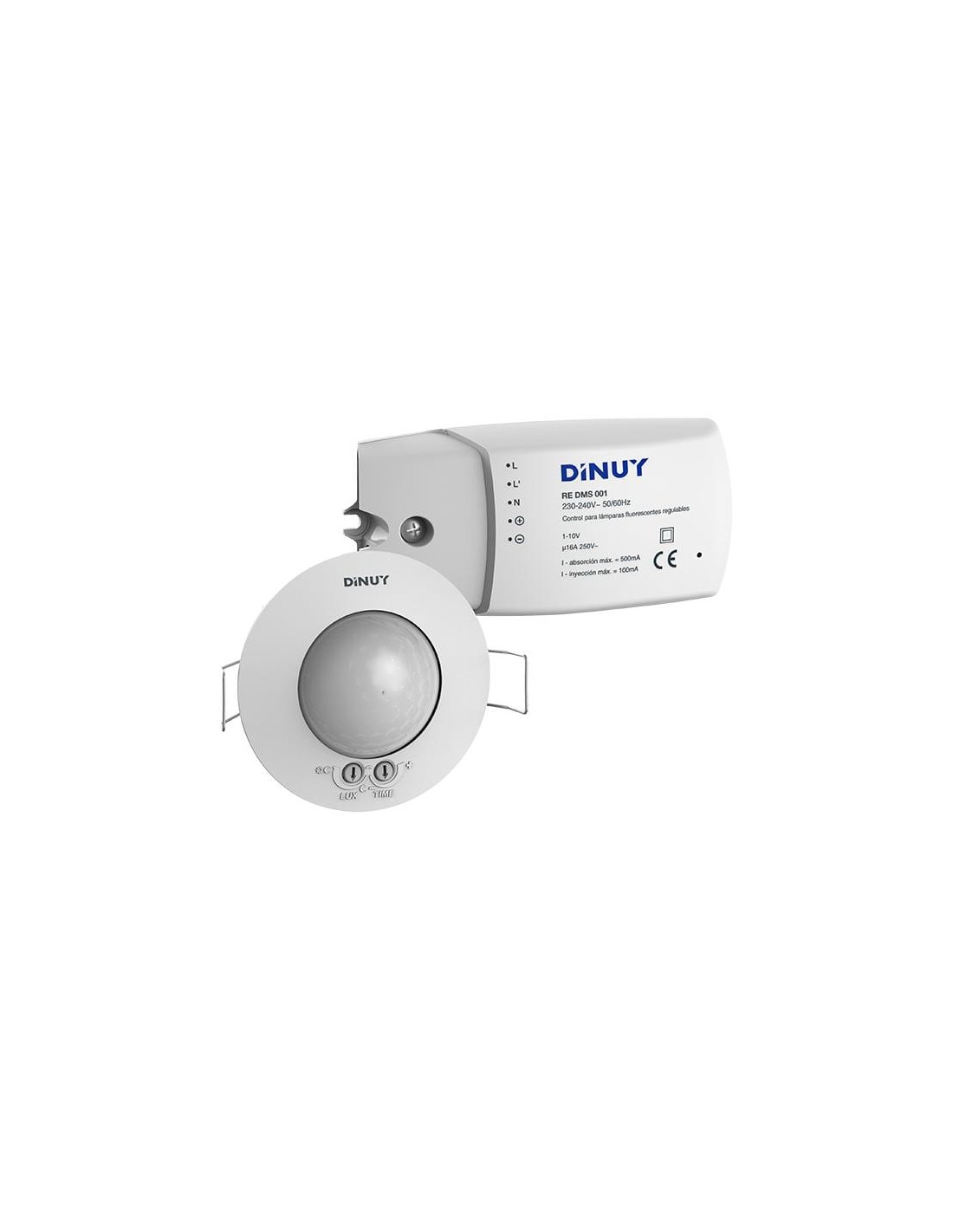

The 1-10V 1 channel Constant Control System is an intelligent electronic device designed to automate lighting in indoor environments. Its main technology consists of automatically compensating the incident natural light, applying to the luminaires the level of luminosity necessary to maintain a minimum pre-established lighting. This system integrates perfectly into offices, schools and hospitals, optimizing visual comfort and energy efficiency.
Technical characteristics
- Nominal voltage: 230 V
- Allocation current: 16 A
- Power consumption: 2 W
- Control intensity: 0.016 mA
- Frequency range: 50...60 Hz
- Device width: 53 mm
- Device height: 107 mm
- Relay output for total shutdown
- Support for DM SEN T03 slave sensors
The incorporation of an optional motion sensor allows to limit the activation of lighting exclusively to the presence of people, avoiding energy waste in empty spaces. In addition, the adjustment of the minimum level of regulation ensures that the luminaires never go out completely, ensuring a constant and safe light base.
The assembly is done in a recessed form on false ceiling or plaster, facilitating its installation without occupying visible space. Manual switching and regulation are possible by push-button or switch using the AC DMS 001 accessory, offering operational flexibility. Maintenance is simple, requiring only verification of electrical connections and correct orientation of the light sensor.
