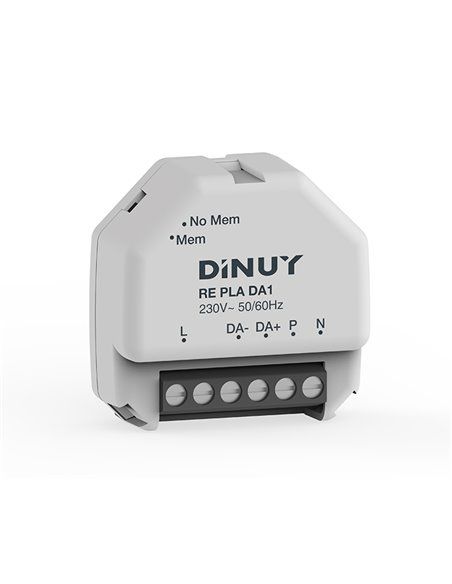

Reference DINUY RE PLA DA1

Available

€101.06

VAT included

• Dimmer, in tablet format, to control fluorescent or LED luminaires, with Ballast or Driver dimmable by DALI signal.
• Broadcast communication with DALI equipment.
• Possibility of controlling up to 64 DALI devices.
• Control by means of a conventional button: short presses turn on/off and long presses dim.
• Memory function.
• Flush mounting in a junction box.

In stock 48 Items

Email address

Description

Product reference RE PLA DA1
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption < 3W
Output Channels 1
Maximum power (VA) 0
Load Type Ballast or DALI Driver
Maximum absorption current per 1/10V (mA) 0
Maximum number of devices 64
Button control
Maximum number of illuminated pushbuttons 0
No. of modules 0
Type of connection terminals Captive screws
Cable section (mm2) 2.5< br/>Storage temperature (ºC) (min) -30
Storage temperature (ºC) (max) 70
Installation Registration box
Operating temperature (ºC) (min) 0
Operating Temperature (ºC) (max) 40
Environmental Protection IP20 according to UNE 20324
According to the Low Voltage Directives 2014/35/EU; Electromagnetic Compatibility 2014/30/EU; 2011/65/EU
In accordance with the UNE-EN 60669-1:2018 Standard; UNE-EN 60669-2-1:2005, +erratum:2008, +/A1:2010, +/A12:2011; UNE-EN 60669-2-3:2007

Product Details

EAN: 8422447015591
Manufacturer: Dinuy
Reference: DINUY RE PLA DA1
Nominal voltage (V): 0
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / [email protected] / +34 943627988
GPSR EU responsible person: Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / [email protected] / +34 943627988
GPSR e-mail manufacturer: [email protected]

In stock 48 Items

Reviews (0)

No reviews
