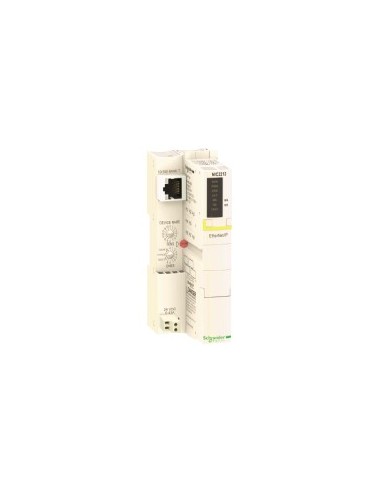

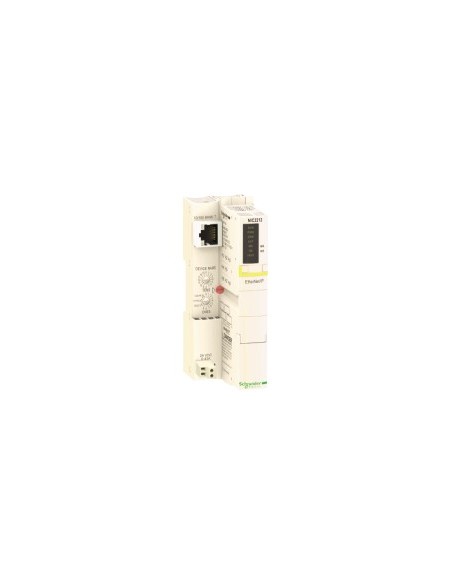

STB Ethernet/IP 10/100 Mbit/s network interface module

Standard network interface module for distributed solutions Modicon STB, compatible with Ethernet/IP according to IEEE 802.3. Allows communication at 10/100 Mbit/s via female RJ45 port with double-armoured braided pair cable. Supports medium or total duplex exchange mode, with one primary segment and up to six extensions. Compatible with up to 256 devices per segment and up to 32 I/O modules addressable per island.

Technical characteristics

• Ethernet port: 10BASE-T/100BASE-T
• Exchange mode: Average or total duplex
• Number of segments: 1 primary, maximum 6 extensions
• Number of devices per segment: 0...256
• Transmission speed: 10/100 Mbit/s
• Number of addressable I/O modules: 0...32 per island
• Communication service: Built-in Web (configuring, diagnostics and variable access), BootP/DHCP, SNMP Agent
• Nominal power supply voltage: 24 V DC
• Type of power supply: SELV
• Power voltage limits: 19,2...30 V
• Input current: 430 mA for supply circuit
• Nominal output current: 0.575 A at 60...70 °C, 1.2 A
• Output voltage: 5.25 V DC (tolerance: ±0.21%) for logic bus
• Degree of protection: IP20 according to EN 61131-2 class 1
• Operating ambient temperature: 0...60 °C (without declassification), -25...70 °C (with declassification)
• Storage ambient temperature: -40...85 °C
• Relative humidity: 95 % at 60 °C without condensation
• Vibration resistance: 3 gn in 58...150 Hz (DIN 35 x 7.5 mm), 5 gn in 58...150 Hz (DIN 35 x 15 mm), ±0.35 mm in 10...58 Hz
• Shock resistance: 30 gn for 11 ms according to IEC 88 reference 2-27
• Maximum operating altitude: ≤ 2000 m
• Degree of contamination: 2 according to IK07
• Status LED: ACT, RUN, ERR, MS, NS, PWR, TEST
• Dimensions: height 40 mm, width 128.3 mm, depth 70 mm
• Weight: 0.145 kg
• Standards: FM Classe 1 divisão 2, groups A, B, C and D T4A at 70 °C, IEC 61131-2: 2003
• Certifications: CE, UL, ODVA, C-Tick, CSA
• REACh Regulation: Do not contain SVHC
• EU RoHS Directive: Proactive (out-of-scope) compliance
• RoHS exemption: Yes
• RoHS China: Not applicable
• WEEE: It should be discarded by specific system in the EU
