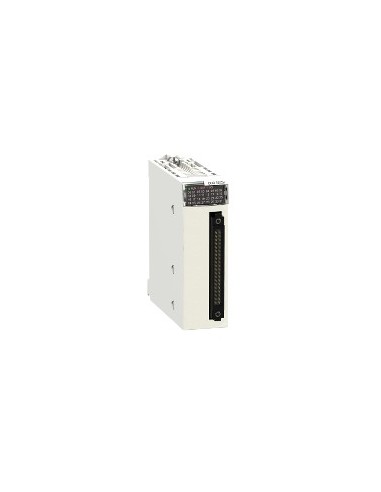

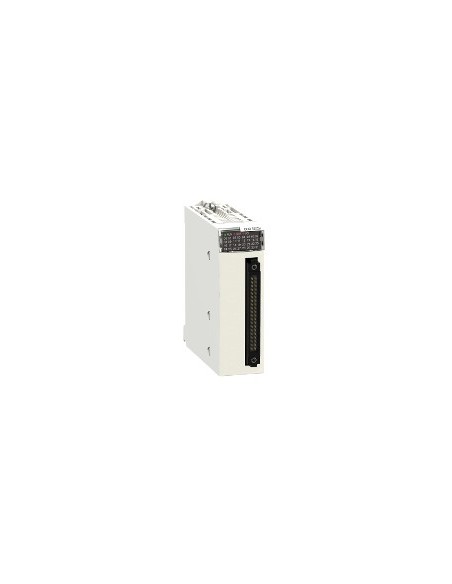

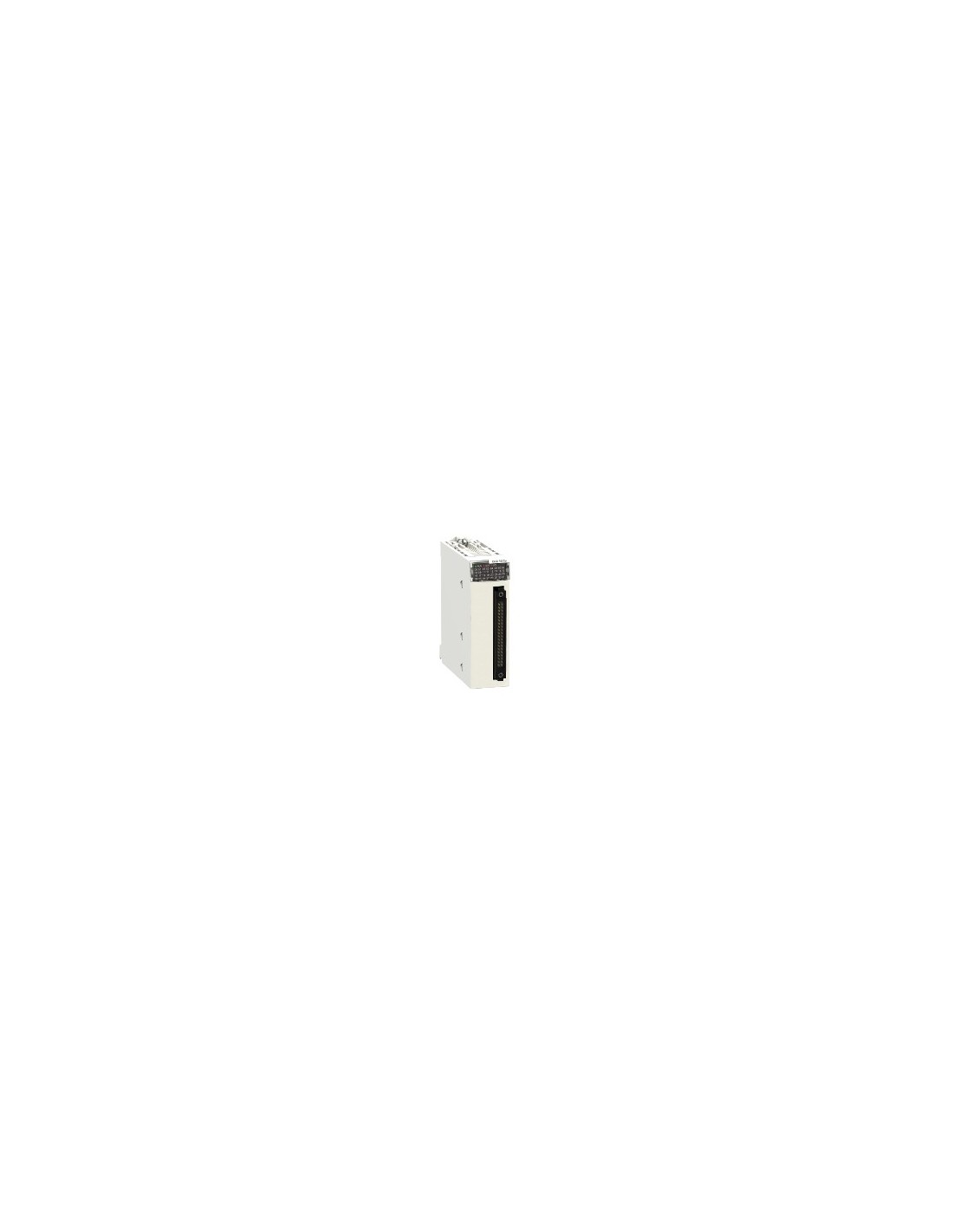

32-Channel Discrete Output Module 24 V DC

32-channel discrete output module, solid-state type, positive logic, designed for industrial applications in controlled environments. Compatible with EN/IEC 61131-2 standards, operates with output voltage of 24 V DC (19–30 V DC) and maximum current per channel of 0.1 A. Includes protection against reverse polarity, short circuits, overloads, and overvoltages. Features electrical insulation greater than 10 MΩ at 500 V DC and protection rating IP20. Operable between 0 and 60 °C, with vibration resistance of 3 gn and shock resistance of 30 gn.

Technical Specifications

• Number of discrete outputs: 32 according to EN/IEC 61131-2
• Digital output type: Solid-state
• Discrete output logic: Positive logic
• Output voltage: 24 V DC (19...30 V DC)
• Digital output current: 0.1 A
• Fixing: 0.125 A
• Current per module: 3.2 A
• Door contact: 0.1 mA in state 0
• Maximum voltage drop: <1.5 V in state 1
• Insulation resistance: > 10 MΩ at 500 V DC
• Power dissipated: 3.6 W
• Output response time: 1.2 ms
• Output parallelization: Yes, up to 3 max.
• Typical current consumption: 125 mA at 3.3 V DC
• MTBF: 312254 h
• Protection: Reverse polarity, short circuits, overloads, overvoltages
• Overload protection: Current limiter and electronic circuit breaker (0.125 A < Id < 0.185 A)
• Output overvoltage protection: Transil diode
• Short circuit protection: External 2 A fuse
• Reverse polarity protection: Built-in reverse diode
• Threshold detection voltage: > 18 V DC in state 0
• Maximum tungsten load: 1.2 W
• Switching frequency: 0.5/LI² Hz
• Maximum overload time: 15 ms
• Load ohmic impedance: >= 220 Ω
• Status LED: RUN (green), channel diagnostics (green), ERR (red), I/O (red)
• Weight: 0.11 kg
• Protection rating: IP20
• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
• Dielectric strength: 1500 V AC (output/ground), 1500 V AC (output/internal logic), 500 V DC (between channel groups)
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Storage ambient temperature: -40…85 °C
• Operating ambient temperature: 0…60 °C
• Relative humidity: 5…95 % at 55 °C without condensation
• Maximum operating altitude: 0...2000 m, 2000...5000 m with
• Sustainable offering status: Green Premium product
• REACH Regulation: Does not contain SVHC
• Compliant with REACH without SVHC: Yes
• EU RoHS Directive: Proactive compliance (outside scope)
• Mercury-free: Yes
• RoHS exemptions: Yes
• China RoHS Regulation: X
• WEEE: Must be disposed of through specific systems in the EU
