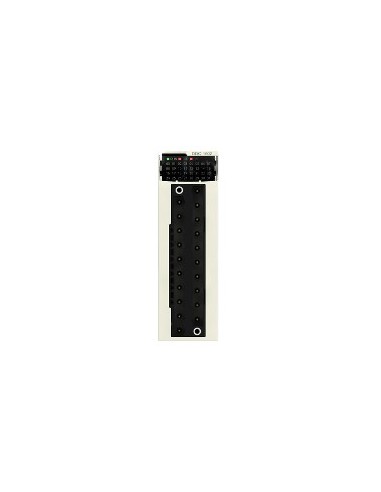

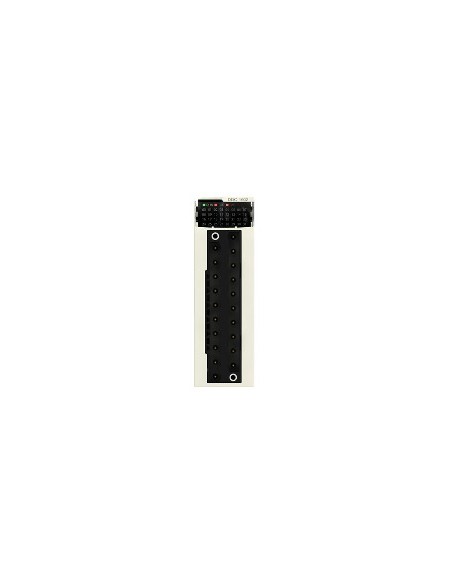

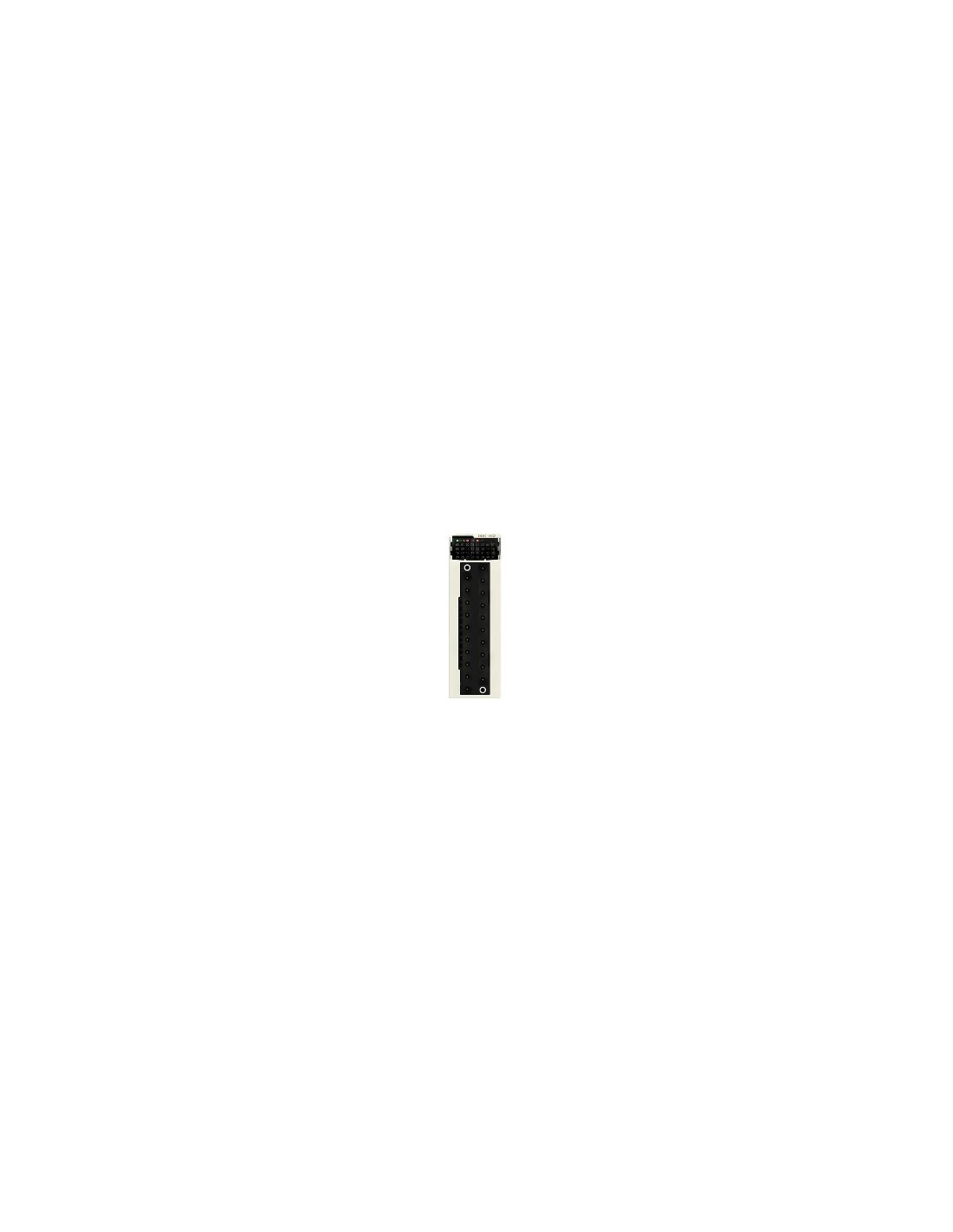

16-Channel Discrete Output Module 24 V DC

16-channel discrete output module, solid-state type, positive logic, designed for demanding industrial environments. Compatible with EN/IEC 61131-2 standards, enables control of digital signals in automated applications with high reliability under adverse conditions.

Technical Features

• Number of discrete outputs: 16 according to EN/IEC 61131-2
• Digital output type: Solid-state
• Discrete output logic: Positive logic
• Output voltage: 24 V DC (19...30 V DC)
• Digital output current: 0.5 A
• Mounting: 0.625 A
• Current per module: 10 A
• Door contact: 0.5 mA in state 0
• Maximum voltage drop: <1.2 V in state 1
• Insulation resistance: > 10 MΩ at 500 V DC
• Power dissipation: 4 W
• Output response time: 1.2 ms
• Output parallelization: Yes (up to 2)
• Typical current consumption: 79 mA at 3.3 V DC
• MTBF: 392285 h
• Protection: Reverse polarity, short circuits, overloads, overvoltage
• Threshold detection voltage: > 18 V DC in state 0
• Maximum tungsten load: 6 W
• Switching frequency: 0.5/LI² Hz
• Load impedance: > 48 Ω
• LED indicators: RUN (green), channel diagnosis (green), ERR (red), module I/O (red)
• Weight: 0.12 kg
• Protection rating: IP20
• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Operating temperature: -25…70 °C
• Storage temperature: -40…85 °C
• Relative humidity: 5…95 % at 55 °C without condensation
• Protective coating: Conformal coating
• Maximum operating altitude: 0...2000 m (2000...5000 m with)
• Environmental characteristics: Gas Gx, 3C4, 3S4, 3S4, Sal 2, 3B2, 3B2
• Dielectric strength: 1500 V AC (50/60 Hz, 1 min) output-to-ground and output-to-internal logic
• Green Premium product
• Compliant with REACh without SVHC
• RoHS EU: Proactive compliance (outside scope)
• Mercury-free
• RoHS exemptions: Yes
• WEEE: Disposal through specific systems in the EU
