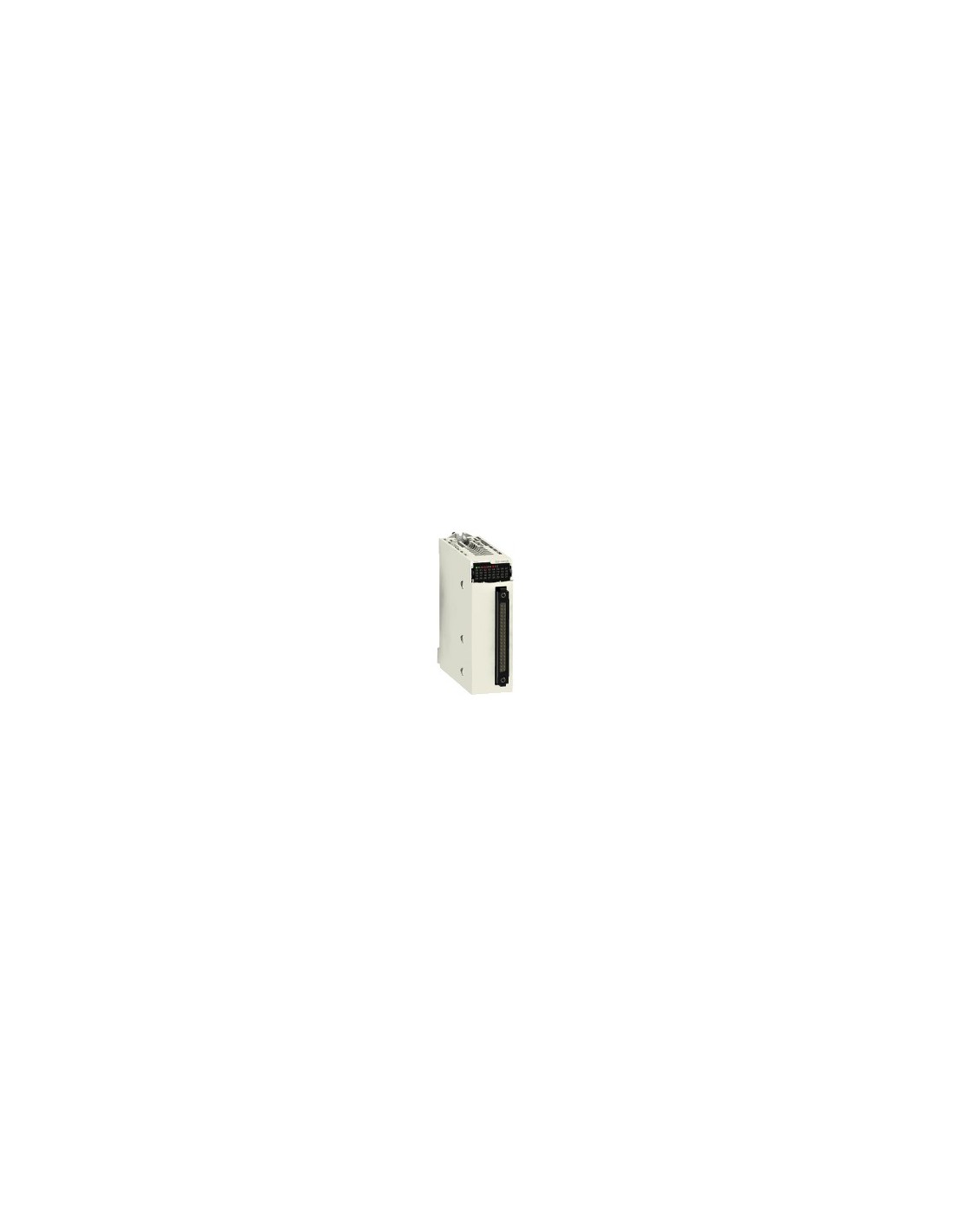

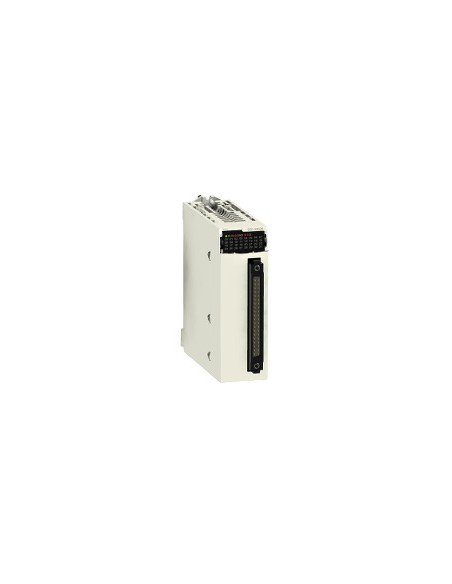

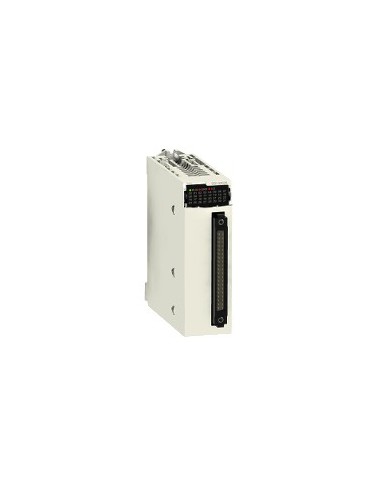

Discrete input module 32 channels 24 V DC

32-channel discrete input module for industrial automation systems, compatible with the Modicon X80 range. Designed to receive digital signals isolated from proximity sensors 2/3 cables, according to IEC 60947-5-2 and IEC 61131-2 type 1.

Technical characteristics

• Number of digital entries: 32
• Type of entry: Current collector (positive logic)
• Input voltage: 24 V DC positive
• Tensions range: 19...30 V
• Discreet input current: 2,5 mA
• Current status 1 guaranteed: >= 2 mA
• Current status 0 guaranteed: <= 0.5 mA
• Input impedance: 9600 Ohm
• Insulation resistance: > 10 M↔ to 500 V DC
• Typical CC filtering: 4 ms
• Maximum CC filtration: 7 ms
• Parallel entries: No
• Typical current consumption: 121 mA to 3.3 V DC
• Dissipated power: 3.9 W
• MTBF: 696320 h
• Dielectric force: 1500 V AC (50/60 Hz) for 1 minute between primary and secondary; 500 V DC for 1 minute between channel groups
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Operating ambient temperature: 0...60 °C
• Storage ambient temperature: -40...85 °C
• Relative humidity: 5...95 % at 55 °C without condensation
• Maximum operating altitude: 0...2000 m (up to 5000 m with reduction)
• Degree of IP protection: IP20
• Status LED: RUN (green), diagnostic channel (green), ERR (red), I/O module (red)
• Weight: 0.112 kg
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• According to REACh without SVCC: Yes
• RoHS EU: Proactive (out-of-scope) compliance
• Contains mercury: No
• RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: It should be discarded by specific system in the EU
