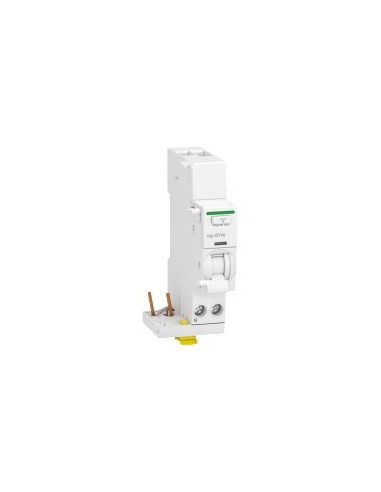

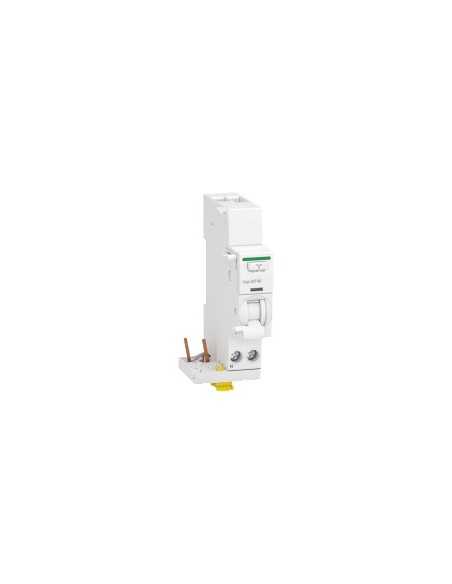

Vigi Block 1P+N 40A 30mA AC Type AD

The Vigi Block 1P+N 40A 30mA AC Type AD from the Acti9 range is designed to protect electrical circuits in outlet installations. It provides instantaneous protection against earth leakage residual currents with a sensitivity of 30 mA, operating independently of voltage, ensuring safety even under reduced voltage conditions. Its design allows integration into single-phase electrical systems with a nominal voltage of 230 V AC 50 Hz.

Technical Features

• Number of poles: 1P + N
• Neutral position: Left
• Nominal current [In]: 40 A
• Network type: AC
• Earth leakage sensitivity: 30 mA
• Protection delay: Instantaneous
• Protection class: Type AC
• Rated operating voltage [Ue]: 230 V AC 50 Hz
• Rated insulation voltage [Ui]: 400 V AC 50 Hz (in accordance with EN/IEC 61009-2-1)
• Impulse withstand voltage [Uimp]: 4 kV (in accordance with EN/IEC 61009-2-1)
• Protection degree IP: IP20 (in accordance with IP40 - cable type: modular enclosure)
• Contamination degree: 3 (in accordance with EN/IEC 61009-2-1)
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2000 m
• Operating ambient temperature: -5…60 °C
• Storage ambient temperature: -40…85 °C
• Mechanical durability: 20000 cycles
• Electrical durability: 10000 cycles
• Connections - terminals: Lower tunnel terminal 1…16 mm² rigid, 1…10 mm² flexible
• Cable stripping length: 14 mm for lower connection
• Torque: 2 N·m lower
• Mounting support: DIN rail
• Mounting type: Adjustable clip
• Electrical connection to MCB: Via screws
• Spacing: 9 mm (2 steps)
• Height: 91 mm
• Width: 36 mm
• Depth: 74 mm
• Color: White
• Local indicators: Fault indication
• Standards: EN/IEC 61009-2-1
• Certifications: CE, NF
• Sustainable offering status: Green Premium product
• REACH Regulation: No SVHC present
• EU RoHS Directive: Compliant
• RoHS exemptions: Yes
• China RoHS regulation: Product outside the scope of China RoHS
• WEEE: Must be disposed of according to specific system in the EU
• Halogen content: No halogens (plastic and cables)
