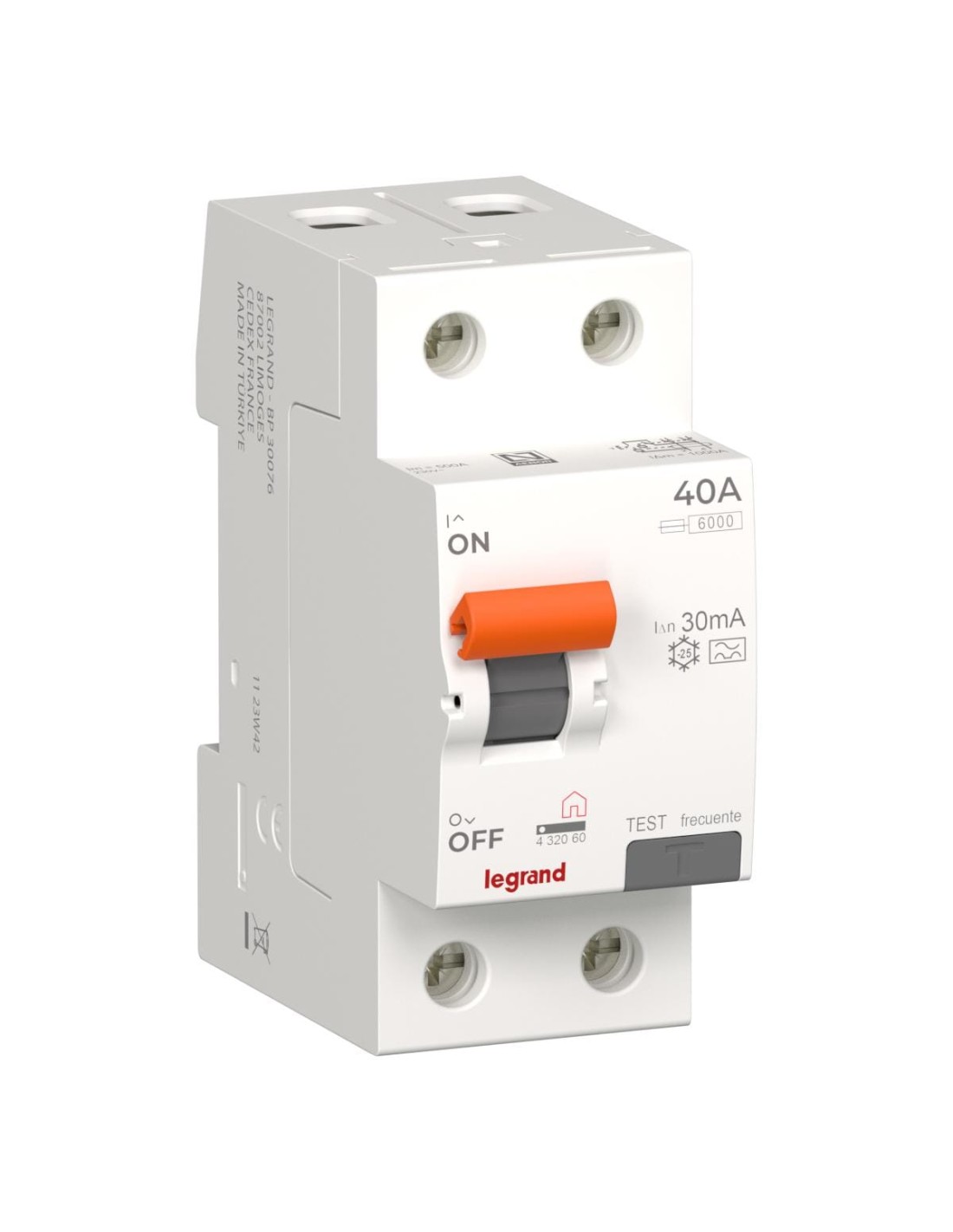

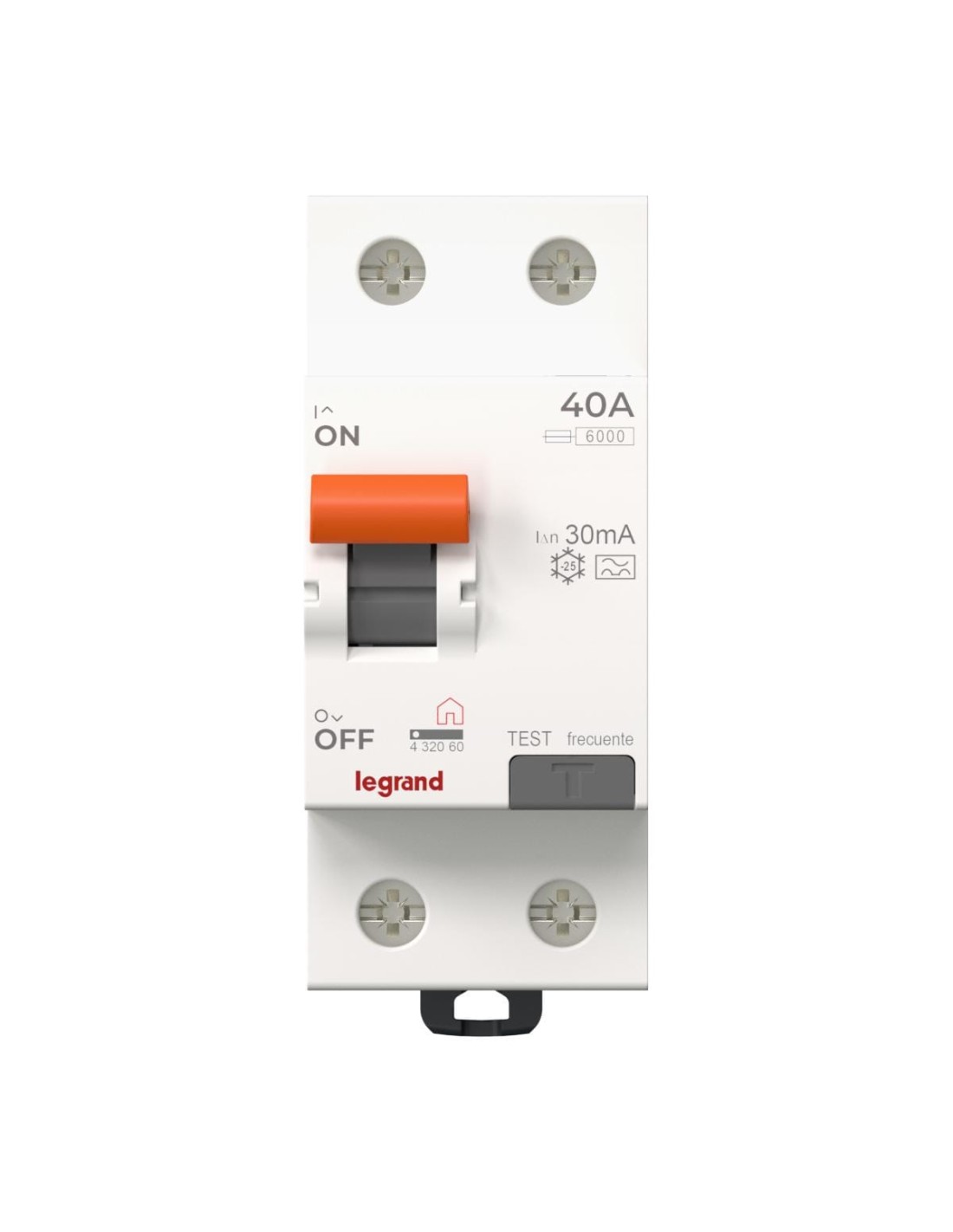

RX Differential Switch 2P 230V 40A 30mA Type A

RX Differential Switch 2P 230V 40A 30mA Type A

RX Differential Switch 2P 230V 40A 30mA Type A

RX Differential Switch 2P 230V 40A 30mA Type A

RX Differential Switch 2P 230V 40A 30mA Type A

Available In stock 16 Items

Reference LEGRAND 432060

€26.87

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

Two-pole residual current device for 230 V and 40 A, with 30 mA sensitivity and Type A leakage current detection. Mounts on a DIN rail, withstands 10 kA short-circuit current, and offers protection against direct and indirect contact.

Description

Two-pole residual current device designed to protect people against direct and indirect contact and the risk of electric shock. It also provides protection against fires caused by persistent earth fault currents, operating with a 30 mA tripping sensitivity.

Technical features

Number of poles: 2
Nominal voltage: 230 V AC
Rated current: 40 A
Tripping sensitivity: 0.03 A (30 mA)
Leakage current type: Type A
Short-circuit breaking capacity (Icw): 10 kA
Overcurrent withstand: 0.25 kA
Frequency: 50 Hz
Protection rating: IP20
Width: 2 modules
Depth: 44 mm
Operating temperature: -25...60 °C
Conductor connection: 0.75...35 mm² (multiple) and 0.75...50 mm² (solid)
Mounting method: DIN rail
Padlockable: Yes
Color: White

This device mounts on a DIN rail and allows the connection of conductors with varying cross-sections. The presence of a padlockable system facilitates safe maintenance. Its compact 2-module design optimizes space within the electrical panel.

Product Details

Eléctrico

Nominal voltage (V)	230
Rated voltage	230
Rated current (A)	40

Protección

Protection	IP20

Otras

Frequency	50
Sensitivity	30 mA
EAN	3414973045567
Manufacturer	LEGRAND
No. of poles	2P
Reference	LEGRAND 432060

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 432060
EAN	3414973045567

Advertencias de seguridad

No

In stock 16 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
