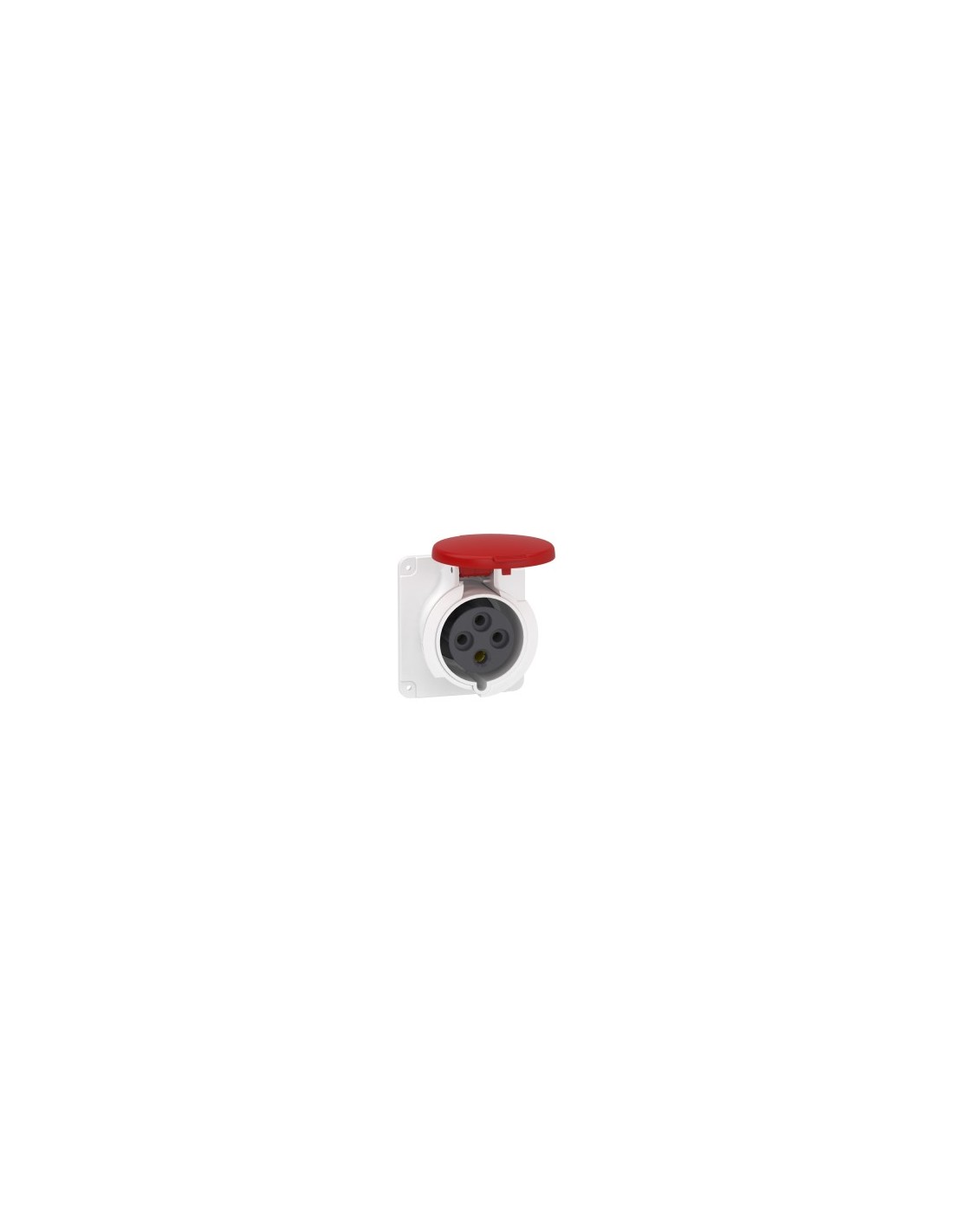

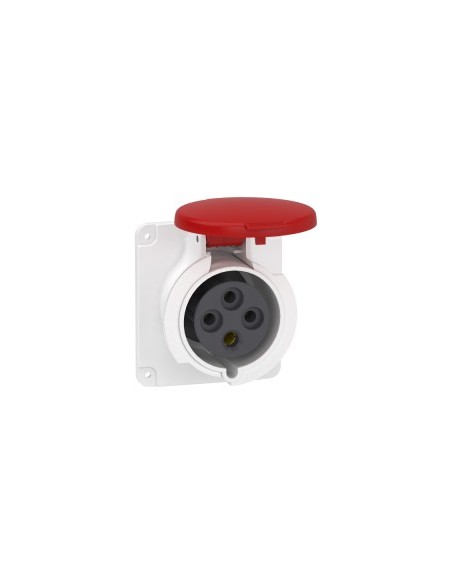

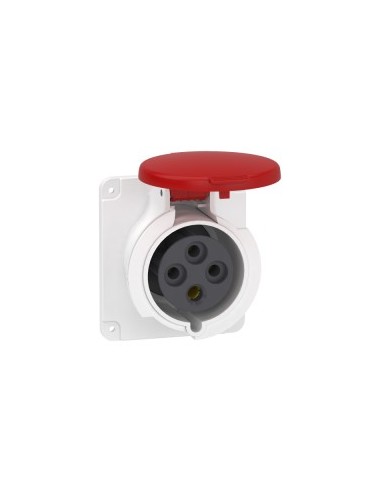

Straight Socket PratiKa 32 A IP44 3P+E 380 V
Straight Socket PratiKa 32 A IP44 3P+E 380 V

Straight Socket PratiKa 32 A IP44 3P+E 380 V

Available In stock 9 Items Reference IMPO PKY32G434
€17.65
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP44
  • Colour Grey

Rectangular panel socket PK Patrika, 32 A, 3P+E, 380-415 V AC, 50/60 Hz, with IP44 and IK08 protection rating, made of engineering self-extinguishing polymer, bronze contacts, quick connection for cables 2.5–6 mm², designed for industrial installations in small commercial and residential environments.

Description

Rectangular panel socket PK Patrika designed for industrial connection in low-voltage systems. Suitable for use in commercial and residential environments, providing a safe and efficient connection for electrical equipment. Its straight design and panel mounting facilitate integration into electrical panels.

Technical Features

  • Number of poles: 3P+E
  • Power supply type: AC
  • Rated current: 32 A
  • Rated operating voltage: 380...415 V
  • Supply frequency: 50/60 Hz
  • Earth terminal position: 6 o'clock
  • Housing material: Engineering self-extinguishing polymer
  • Contact material: Bronze (sleeves)
  • Quick connection
  • Cable cross-section: 2.5…6 mm²
  • Protection rating IP: IP44 (according to IEC 60529)
  • Impact protection rating IK: IK08 (according to EN 62262)
  • Fire resistance: 850 °C (according to IEC 60695-2-1)
  • Operating ambient temperature: 35 °C (86400 s)
  • Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
  • Color: Grey (RAL 7035)
  • Voltage color code: Red
  • Weight: 0.256 kg
  • Dimensions: 91 x 100 x 127 mm (width x height x depth)
  • Standards: IEC 60309-1, IEC 60309-2
  • Compatibility: Pratika socket
  • Sustainable offering status: Green Premium product
  • EU RoHS Directive: Compliant
  • Contains SVHC above threshold (REACh)
  • Mercury-free
  • Product outside the scope of China RoHS

Product Details

Dimensiones

Width 100 mm
Depth 127 mm
Weight (kg) 0,256 kg

Eléctrico

Nominal voltage (V) 380...415 V
Rated current (A) 32

Protección

Protection IP44

Otras

Frequency 50/60 Hz
EAN 3303432012236
Manufacturer SCHNEIDER
Range Industrial
Reference IMPO PKY32G434
Cable cross-section (mm²) 6 mm²
Colour Grey
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO PKY32G434
EAN 3303432012236
9 Items
