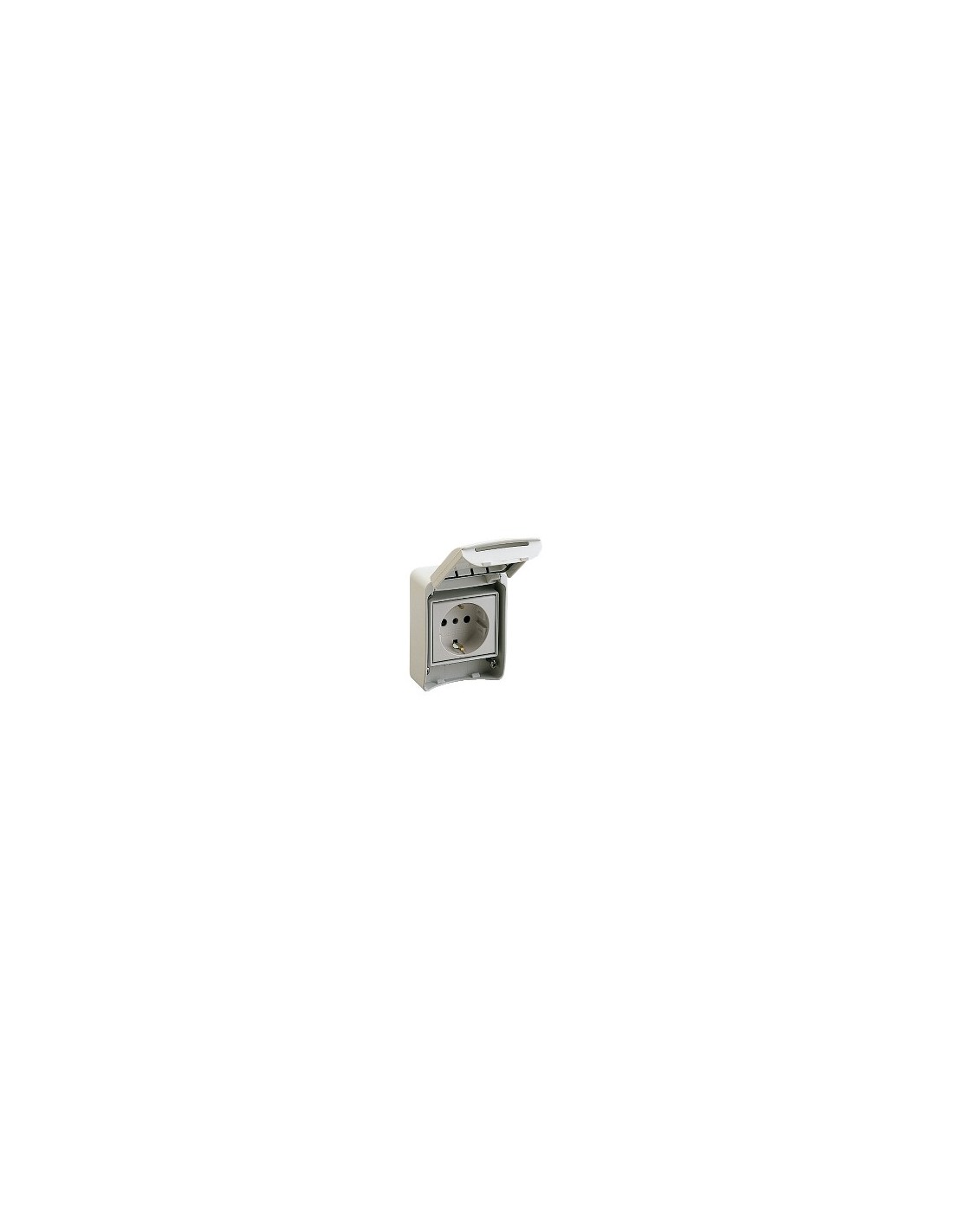

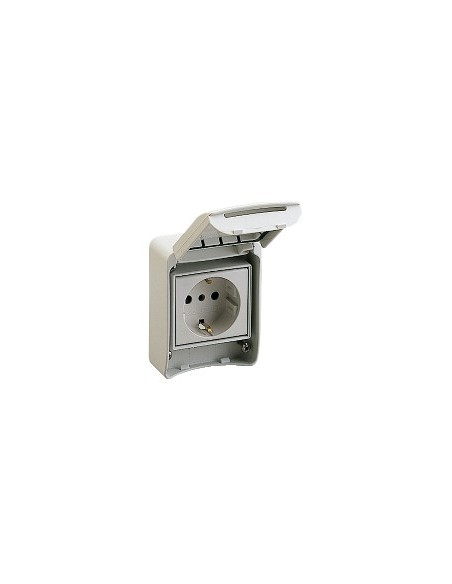

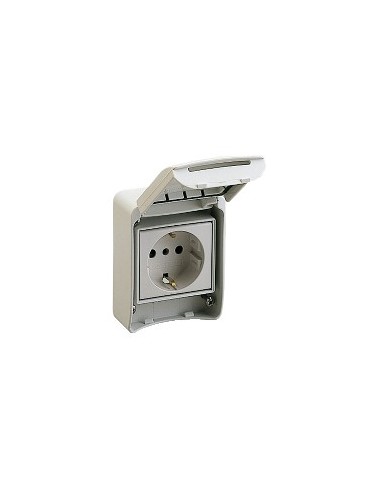

Recessed socket Pratika 2P+E 16 A grey

Embossable socket with flange from the PratiKa range, designed for surface panel installation. Compatible with German household standard, it offers a secure connection for electrical devices in residential or commercial environments. Its structure is built with self-extinguishing engineering polymer and stainless steel contacts to ensure durability and electrical safety.

Technical characteristics

• Number of poles: 2P+E
• Network type: AC
• Output standard: German Domestic
• Nominal current: 16 A / 10 A
• Network frequency: 50/60 Hz
• Nominal employment voltage: 250 V
• Housing material: Self-extinguishing engineering polymer
• Contact material: Pines and springs in stainless steel
• Degree of IP protection: IP65
• Level of protection IK: IK09
• Fire resistance: 850 °C
• Operating ambient temperature: -25...40 °C
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Standards: IEC 60884
• Assembly: Surface / panel mounted
• Number of sockets: 1
• Connections: Screws, screws and screws
• Base size: 80 x 80 x 45 mm
• Height: 85 mm
• Width: 65 mm
• Depth: 45.2 mm
• Weight: 0.112 kg
• Colour: Grey (RAL 7035)
• Compatibility code: Take Pratika.

Robust design and resistant materials allow its use in demanding environments, ensuring a reliable and secure connection. Its construction in self-extinguishing polymer and fire resistance increase safety in case of overheating.
