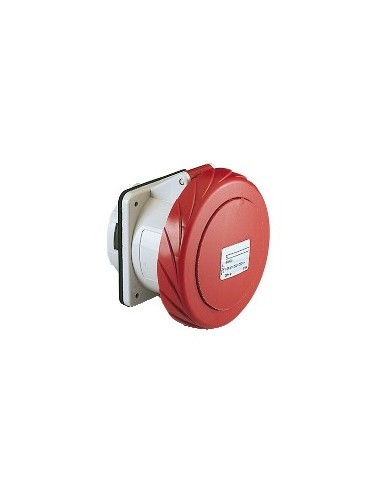

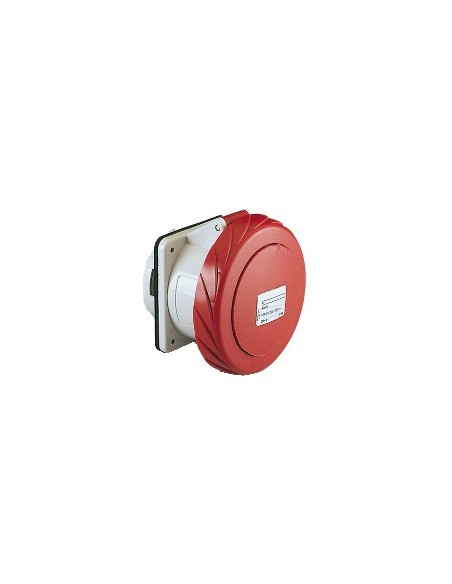

Industrial Socket 125 A 3P+N+E IP67
Industrial Socket 125 A 3P+N+E IP67

Industrial Socket 125 A 3P+N+E IP67

Available In stock 10 Items Reference IMPO 81695
€172.86
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP67 - uso externo
  • Colour Grey

Industrial socket 3P+N+E, 125 A, 380-415 V AC, panel mounting, IP67 protection rating and IK08. Made of self-extinguishing polymer, contacts in stainless steel and nickel-plated brass. Compatible with EN 60309 standard, suitable for demanding industrial environments, resistant to temperatures up to 850 °C and relative humidity up to 90 %.

Description

Industrial socket type PratiKa, panel-mounted, designed for low-voltage applications in industrial environments. Compatible with international standards, provides safe and durable connection for electrical installations in demanding conditions.

Technical Features

  • Number of poles: 3P + N + E
  • Rated operating voltage: 380...415 V AC
  • Rated current: 125 A
  • Supply frequency: 50/60 Hz
  • Earth terminal position clockwise: 6 o'clock
  • Housing material: Engineering self-extinguishing polymer
  • Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
  • Connections: Captive screws, fully loosened
  • Wire cross-section supported: 16…70 mm²
  • Protection rating IP: IP67
  • Protection rating IK: IK08
  • Fire resistance: 850 °C
  • Operating ambient temperature: 35 °C
  • Standards: EN 60309-1, EN 60309-2
  • Weight: 1.346 kg
  • Dimensions: 110 x 114 x 161 mm (width x height x depth)
  • Color: Grey (RAL 7035)
  • Voltage color code: Red
  • Sustainable offering status: Green Premium product
  • Contains SVHC above threshold (REACh)
  • Product outside the scope of EU RoHS and China RoHS

Product Details

Dimensiones

Width 114
Long 110
Depth 16,1 cm
Weight (kg) 1,346

Eléctrico

Current type AC
Rated current (A) 125

Protección

Protection IP67 - uso externo

Otras

Frequency 50/60 Hz
EAN 3303430816959
Manufacturer SCHNEIDER
Range Industrial
No. of poles 3P+N+E
Reference IMPO 81695
Cable cross-section (mm²) 16
Colour Grey
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 81695
EAN 3303430816959
10 Items
