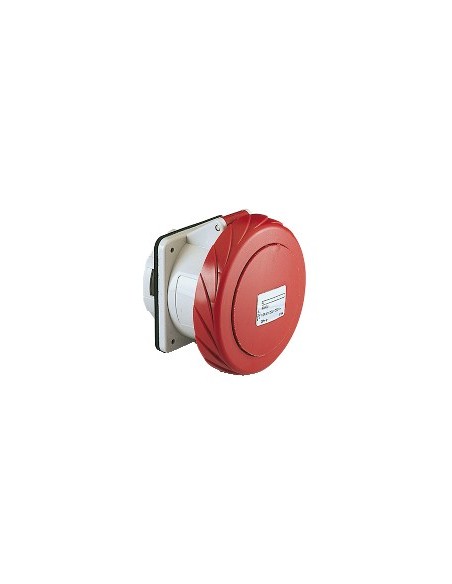

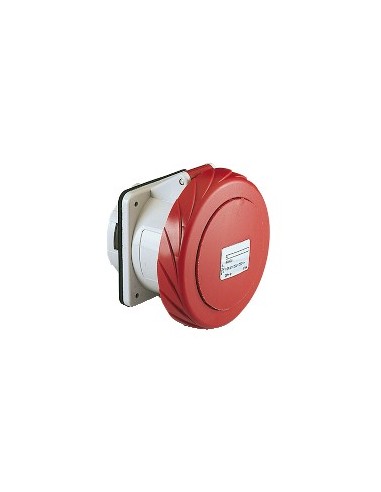

Industrial Socket 3P+N+E 63 A IP67

Flat industrial socket for panel mounting, designed for low-voltage applications in demanding environments. Compatible with industrial standards, providing a secure and durable connection for electrical equipment in commercial and residential settings.

Technical Features

• Number of poles: 3P + N + E
• Rated current: 63 A
• Rated operating voltage: 380...415 V AC
• Supply frequency: 50/60 Hz
• Earth terminal position clockwise: 6 o'clock
• Housing material: Engineering self-extinguishing polymer
• Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
• Connections: Captive screws, fully loosened
• Cable cross-section: 6…25 mm²
• Protection rating IP: IP67 according to IEC 60529
• Protection rating IK: IK08 according to EN 62262
• Fire resistance: 850 °C according to IEC 60695-2-11
• Operating ambient temperature: 35 °C (86400 s)
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Standards: EN 60309-1, EN 60309-2
• Weight: 0.52 kg
• Dimensions: 325 x 175 x 120 mm
• Color: Grey (RAL 7035)
• Voltage color code: Red
• Market segment: Small businesses, Residential
• Compatibility code: Pratika Socket
• Sustainable offering status: Green Premium product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS: Outside scope
• Mercury-free: Yes
• RoHS exemptions: Yes
