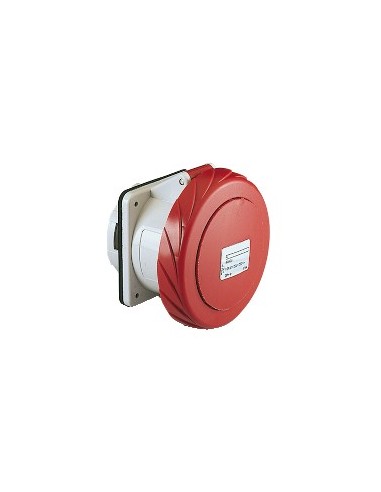

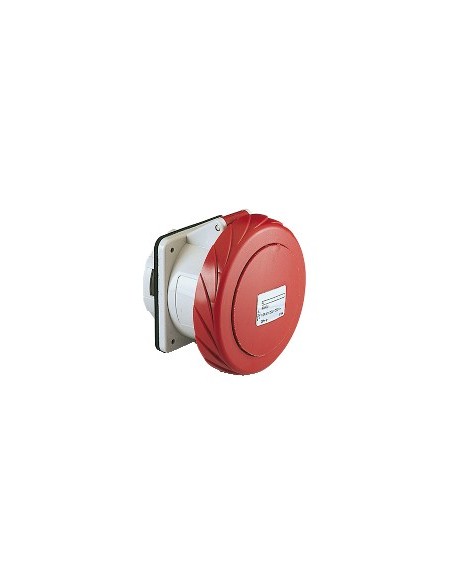

Industrial Socket 3P+E 63 A IP67
Industrial Socket 3P+E 63 A IP67

Industrial Socket 3P+E 63 A IP67

Available In stock 10 Items Reference IMPO 81682
€75.93
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP67 - uso externo
  • Colour Grey

Industrial socket rated at 63 A, 3P+E, for panel mounting, with a nominal voltage of 380...415 V AC, frequency 50/60 Hz, IP67 protection rating, and IK08. Manufactured with self-extinguishing polymer, contacts made of stainless steel and nickel-plated brass, compliant with EN 60309-1/2 standard, designed for demanding industrial environments.

Description

Rectangular industrial socket designed for low-voltage installations with 3P+E connection, compatible with industrial standards. Ideal for demanding applications where high reliability and protection against external agents are required.

Technical Features

  • Number of poles: 3P+E
  • Rated operating voltage: 380...415 V AC
  • Rated current: 63 A
  • Supply frequency: 50/60 Hz
  • Earth terminal position clockwise: 6 o'clock
  • Housing material: Engineering self-extinguishing polymer
  • Contacts: Stainless steel pins and springs, nickel-plated brass sleeves
  • Connections: Captive screws, fully loosened
  • Cable cross-section: 6…25 mm²
  • Protection rating IP: IP67 according to IEC 60529
  • Impact protection rating IK: IK08 according to EN 62262
  • Fire resistance: 850 °C according to IEC 60695-2-11
  • Operating ambient temperature: 35 °C (86400 s)
  • Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
  • Standards: EN 60309-1, EN 60309-2
  • Weight: 0.474 kg
  • Dimensions: 325 x 175 x 120 mm
  • Color: Grey (RAL 7035)
  • Voltage color code: Red
  • Compatibility code: PratiKa Socket
  • Sustainable offering status: Green Premium Product
  • REACH Regulation: Contains SVHC above threshold
  • EU RoHS Directive: Proactive compliance (outside scope)
  • China RoHS Regulation: Outside scope

Product Details

Dimensiones

Depth 120 mm
Weight (kg) 0,474 kg

Eléctrico

Nominal voltage (V) 380...415 V
Rated current (A) 63

Protección

Protection IP67 - uso externo

Otras

Frequency 50/60 Hz
EAN 3303430816829
Manufacturer SCHNEIDER
Range Industrial
No. of poles 3P+E
Reference IMPO 81682
Colour Grey
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 81682
EAN 3303430816829
10 Items
