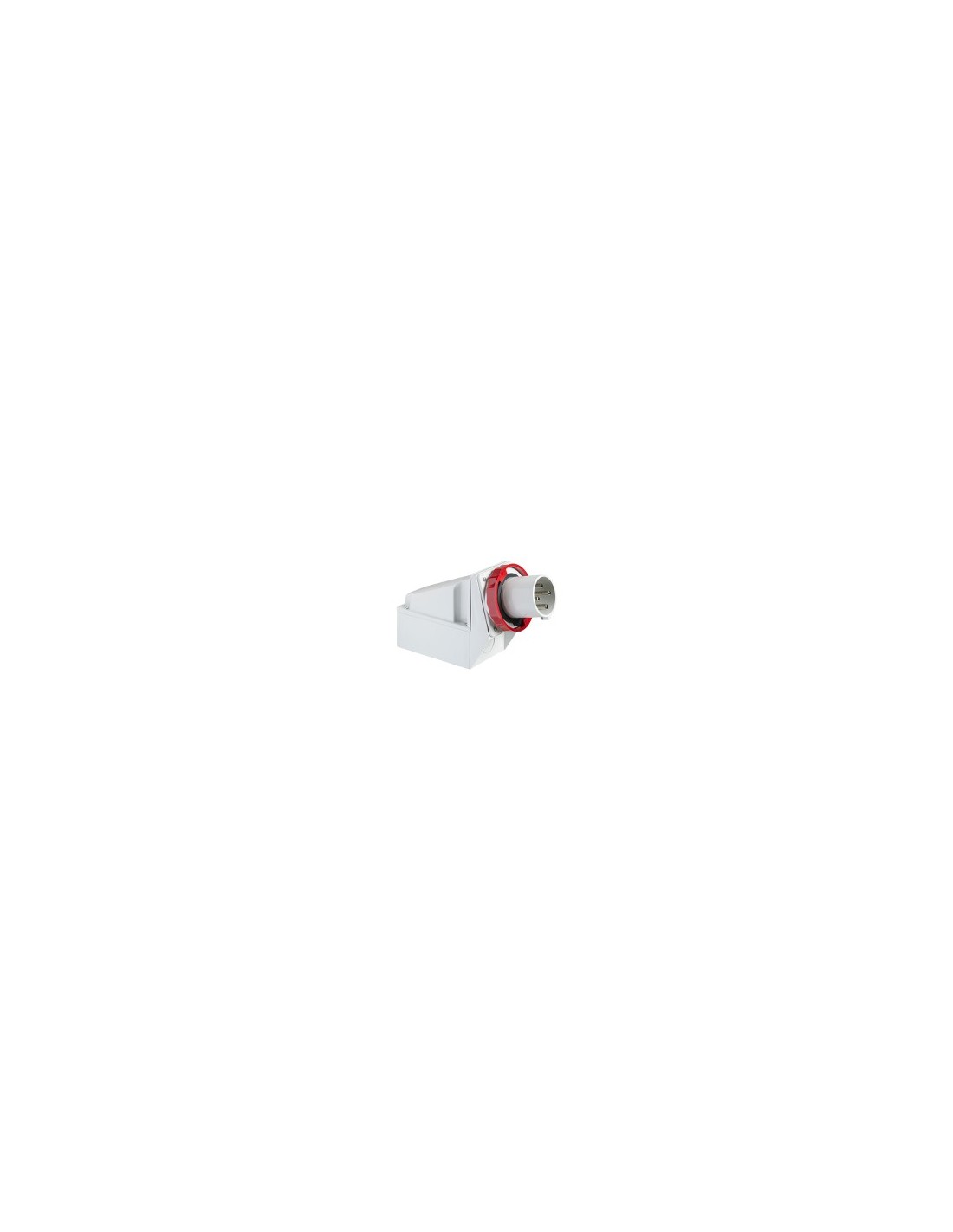

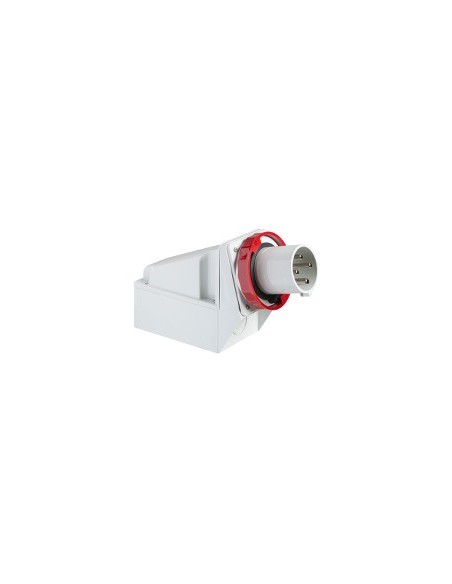

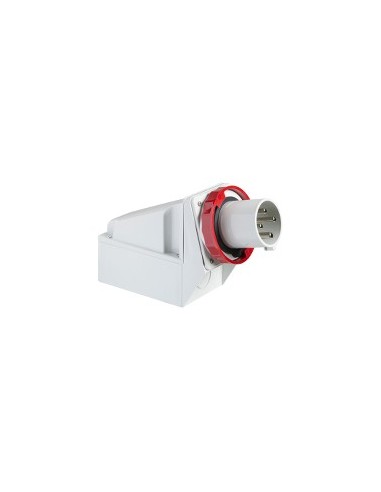

PratiKa Wall Socket 125 A 3P+N+E IP67

PratiKa industrial wall socket with 3P+N+E connection, designed for low-voltage installations in industrial environments and small commercial settings. Compatible with the PratiKa system, it provides a secure and robust connection for loads up to 125 A and voltages of 380...415 V AC, operating at 50/60 Hz. Its angled design and recessed wall mounting facilitate integration into limited spaces.

Technical Features

• Number of poles: 3P+N+E
• Nominal current: 125 A
• Nominal operating voltage: 380...415 V AC
• Supply frequency: 50/60 Hz
• Earth terminal position: 6 o'clock
• Socket and plug material: Engineering self-extinguishing polymer
• Contact material: Nickel-plated brass pins
• Connections: Non-loosening screws
• Cable cross-section: 16…70 mm²
• Cable entry: Cable gland
• Thread type: Pg 48
• Protection rating IP: IP67
• Impact protection rating IK: IK08
• Fire resistance: 850 °C
• Maximum operating altitude: 2000 m
• Operating ambient temperature: -25…40 °C
• Weight: 1.864 kg
• Dimensions: 114 x 224 x 354 mm (width x depth x height)
• Color: Grey (RAL 7035)
• Voltage code: Red
• Standards: EN 60309-1, EN 60309-2

Designed for demanding industrial environments, its robust construction and IP67 protection ensure safe operation under adverse conditions. Ideal for applications in small commercial settings and environments exposed to dust and moisture.
