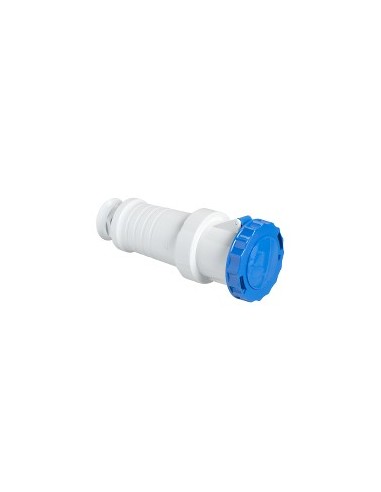

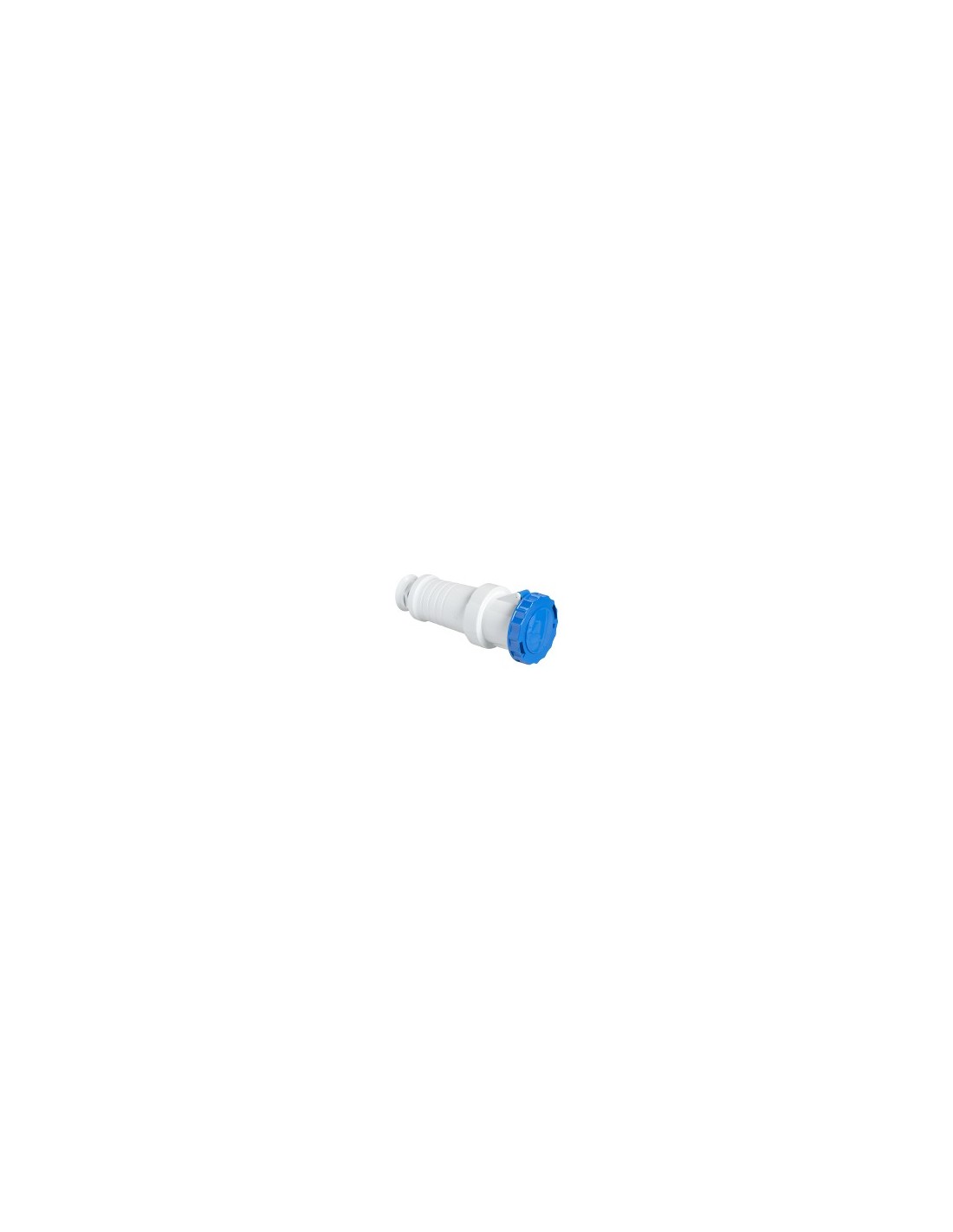

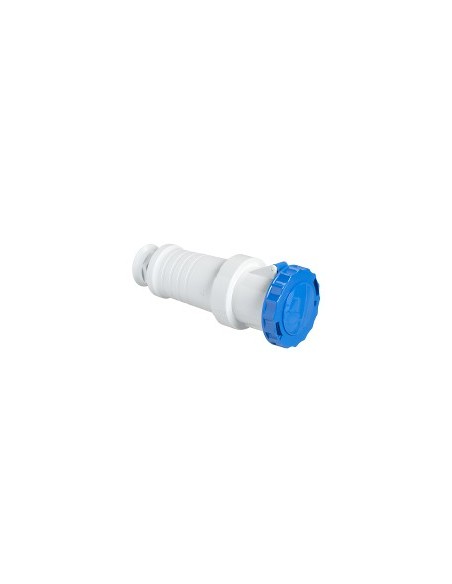

PratiKa Straight Socket 125 A 2P+E IP67

High-capacity industrial straight mobile connector, designed for low-voltage applications with a nominal current of 125 A and operating voltage of 200...250 V AC. Its robust structure and IP67 protection make it suitable for demanding environments, including outdoor use and areas exposed to dust and water. Compatible with industrial standards IEC 60309-1 and IEC 60309-2.

Technical Features

• Number of poles: 2P+E
• Network type: AC
• Rated current: 125 A
• Rated operating voltage: 200...250 V
• Supply frequency: 50/60 Hz
• Earth terminal position: 6 h
• Housing material: Engineering self-extinguishing polymer
• Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
• Connections: Non-loosening screws
• Cable cross-section: 16…70 mm²
• Outer cable diameter: 26…48 mm
• Cable entry: Cable gland
• Thread type: Pg 48
• Protection rating IP: IP67 (IEC 60529)
• Protection rating IK: IK08 (EN 62262)
• Fire resistance: 850 °C (IEC 60695-2-1)
• Operating ambient temperature: -25…40 °C
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Weight: 1.4 kg
• Dimensions: 131 mm (height) x 131 mm (width) x 325 mm (depth)
• Color: Gray (RAL 7035), blue voltage code
• Standards: IEC 60309-1, IEC 60309-2
• Sustainable offering status: Green Premium product
• EU RoHS Directive: Compliant
• Contains SVHC above threshold (REACh)
• Mercury-free product
• RoHS exemptions: Yes
