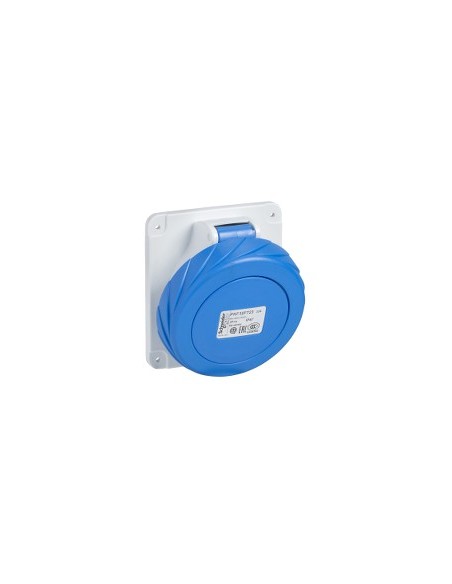

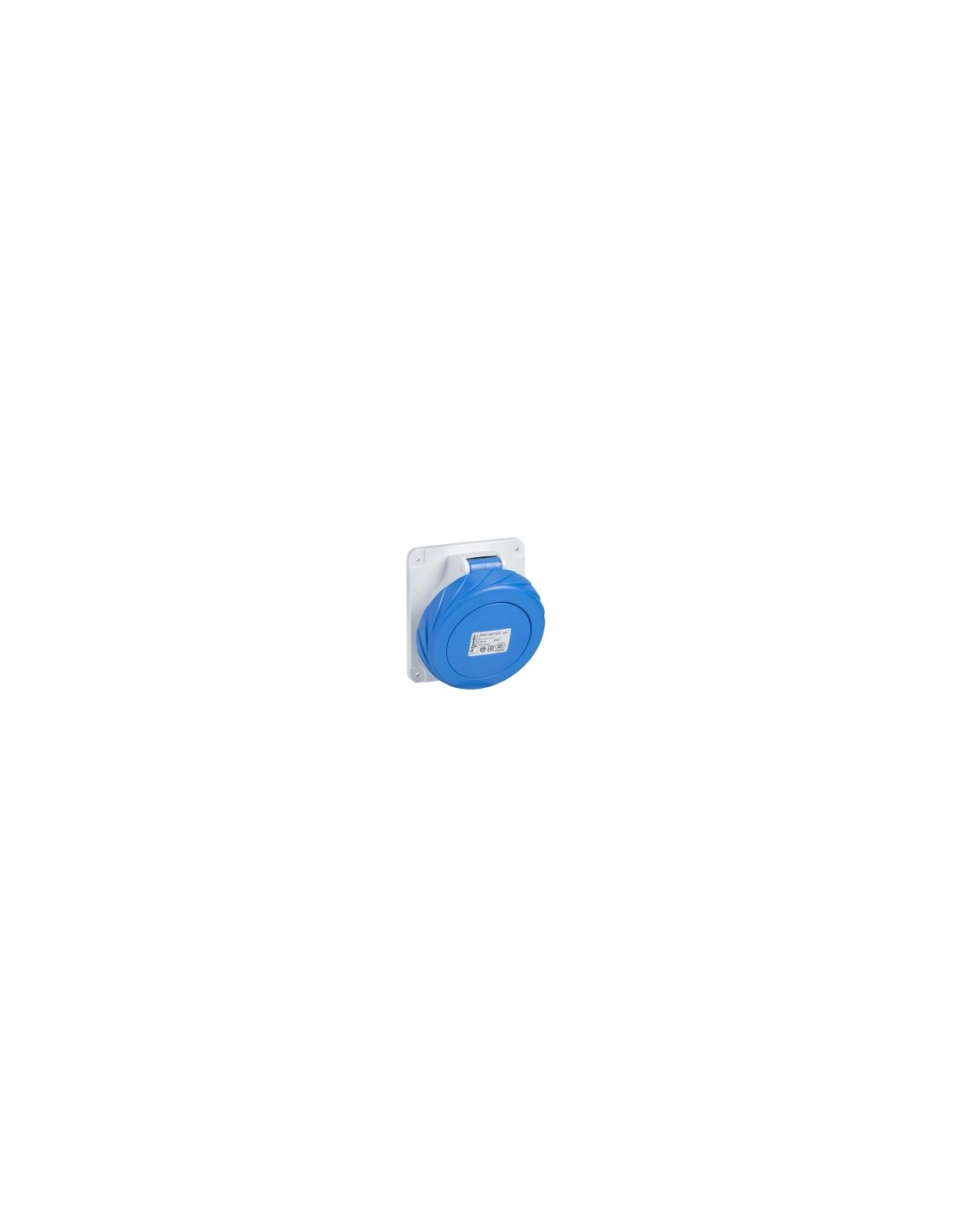

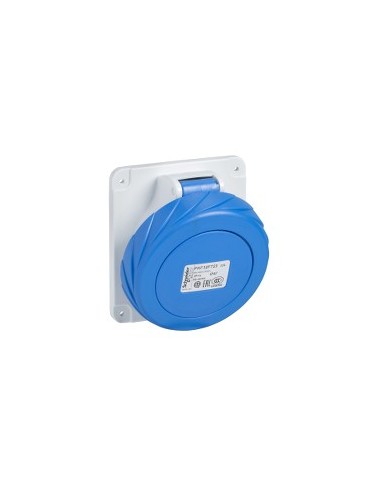

Industrial angle socket, 125 A, 2P+E, 200...250 V AC, panel mounting. Complies with EN 60309-1 and EN 60309-2 standards. IP67 and IK08 protection. Brass nickel-plated and stainless steel contacts. Cable section 16…70 mm². Housing made of self-extinguishing engineering polymer. Operating temperature up to 35 °C.
Description
Industrial angle socket from the PratiKa range, designed for low-voltage installations with 2P+E connection. Compatible with industrial standards, supports nominal currents up to 125 A and voltages from 200 to 250 V AC, operating at 50/60 Hz. Panel mounting with self-extinguishing engineering polymer housing, contacts made of stainless steel and nickel-plated brass. Protected with IP67 and IK08 ratings, resistant to impacts and aggressive environments.
Product Details
| Width | 110 |
|---|---|
| Depth | 114 |
| Weight (kg) | 1,022 |
| Nominal voltage (V) | 200...250 V |
|---|---|
| Rated voltage | 250 |
| Rated current (A) | 125 |
| Protection | IP67 - uso externo |
|---|
| Frequency | 50/60 Hz |
|---|---|
| EAN | 3303430812906 |
| Manufacturer | SCHNEIDER |
| Range | Industrial |
| No. of poles | 2P+E |
| Reference | IMPO 81290 |
| Cable cross-section (mm²) | 16 |
| Colour | Grey |
| Material | Polímero |
Información legal
| Fabricante | SCHNEIDER |
|---|---|
| Dirección | Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES |
| [email protected] | |
| Teléfono | +34 930289900 |
| Referencia | IMPO 81290 |
| EAN | 3303430812906 |
