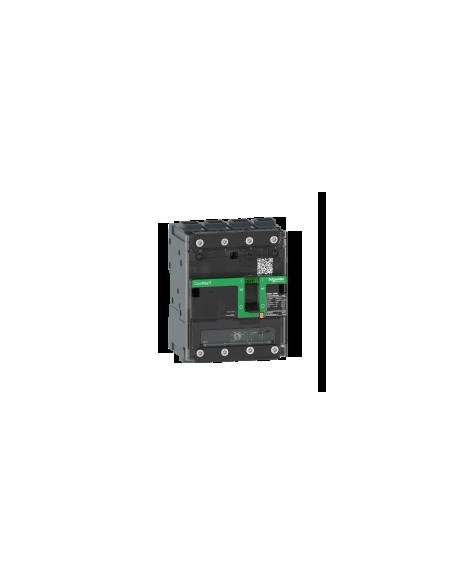

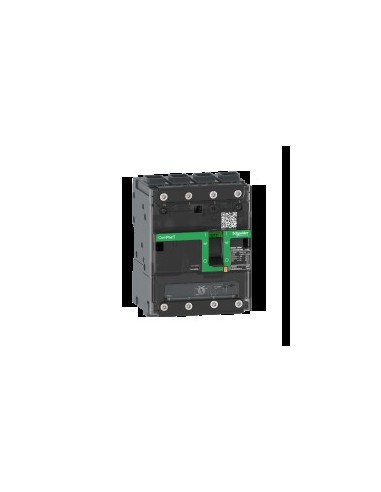

ComPacT NSXm100N 4P4R 32A Automatic Circuit Breaker

ComPacT NSXm100N 4P4R 32 A automatic circuit breaker, designed for industrial applications with currents above 0.1 A. Offers thermal-magnetic protection with TM-D unit, adjustable long-time current setting between 0.7 and 1.0 In. Protects 4 poles with neutral on the left, fixed mounting, compatible with signaling and control accessories. Supports voltages up to 690 V AC, frequencies 50/60 Hz, and breaking capacity Icu up to 50 kA at 440 V AC and 10 kA at 690 V AC.

Technical Features

• Number of poles: 4P
• Description of protected poles: 4R
• Neutral position: Left
• Rated current [In]: 32 A at 40 °C
• Rated operating voltage [Ue]: 690 V AC 50/60 Hz
• Network type: AC
• Supply frequency: 50/60 Hz
• Switching capacity: Yes, in accordance with En > 50 A
• Usage category: A
• Breaking capacity [Icu]: 90 kA at 220–240 V AC, 50 kA at 380–415 V AC, 50 kA at 440 V AC, 25 kA at 500 V AC, 15 kA at 525 V AC, 10 kA at 660–690 V AC
• Service breaking capacity [Ics]: 90 kA at 220–240 V AC, 50 kA at 380–415 V AC, 50 kA at 440 V AC, 25 kA at 500 V AC, 15 kA at 525 V AC, 2.5 kA at 660–690 V AC
• Control unit: TM-D
• Tripping unit technology: Thermal-magnetic
• Protection functions: LIG
• Control type: Handle
• Mounting type: Fixed
• Rated insulation voltage [Ui]: 800 V AC 50/60 Hz
• Surge voltage withstand [Uimp]: 8 kV
• Mechanical durability: 20000 cycles
• Electrical durability: 20000 cycles at 440 V In/2, 10000 cycles at 440 V In, 10000 cycles at 690 V In/2, 5000 cycles at 690 V In
• Power dissipated per pole: 2.94 W
• Mounting support: Rear plate
• Mounting position: Horizontal and vertical (plano por la parte posterior)
• Top connection: Front
• Bottom connection: Front
• Connections - terminals: 1 IK07 2.5…95 mm² (rigid or stranded aluminum/copper), 1 IK07 2.5…70 mm² (flexible copper)
• Connection pitch: 35 mm with spacers, 27 mm without spacers
• 9 mm steps: 12 module
• Tripping unit rating: 32 A at 40 °C
• Adjustable long-time detection setting Ir: Adjustable, range 0.7–1 x In
• Long-time delay: Fixed
• Neutral protection setting: 1 x Ir (cable type: 4R)
• Instantaneous detection Ii: Fixed, range 600 A
• Earth leakage protection: No
• Number of slots: 1 for auxiliary switch OF, 1 for Dakota alarm switch, 1 for trip coil MN or MX
• Local signaling: Auxiliary contact presence, status 1 flag (cable color: green)
• Width: 108 mm
• Height: 137 mm
• Depth: 80 mm
• Weight: 1.42 kg
• Color: Gray (RAL 7016)
• Standards: HB2
• Contamination degree: 3 in accordance with IK07
• Protection rating IP: IP40 in accordance with IEC 60529
• Protection rating IK: IK07 in accordance with IEC 62262
• Operating ambient temperature: -25 °C to 70 °C
• Storage ambient temperature: -50 °C to 85 °C
• Relative humidity: 0 % to 95 %
• Maximum operating altitude: 2000 m without derating, 5000 m with restrictions
• Sustainable offering status: Green Premium product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• RoHS exemptions: Yes
• China RoHS regulation: Product outside the scope of China RoHS
