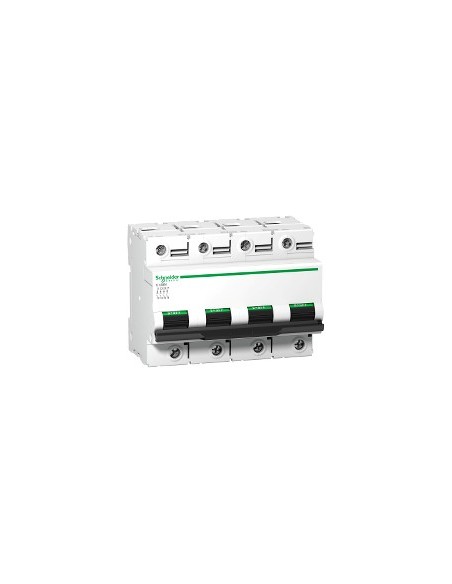

Acti9 C120N 4P 80 A C Curve Magnetic Thermal Switch

Miniature 4P magnetic thermal switch designed to protect electrical circuits in residential and small commercial installations. Offers thermal-magnetic protection with C curve, suitable for inductive loads and motor starting. Mounting on a 35 mm DIN rail allows flexible installation in electrical panels.

Technical Features

• Number of poles: 4P
• Number of protected poles: 4
• Neutral position: Left
• Rated current [In]: 80 A at 30 °C
• Network type: AC
• Tripping unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity: 10,000 A Icn at 230...400 V AC 50/60 Hz according to EN/IEC 60898-1
• Service breaking capacity [Ics]: 7,500 A at 75 % according to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
• Network frequency: 50/60 Hz
• Rated operating voltage [Ue]: 220...240 V, 230...400 V, 380...415 V, 440 V AC 50/60 Hz
• Magnetic trip threshold: 5...10 x In
• Limitation class: 3 according to Icu
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz according to Icu
• Surge voltage withstand [Uimp]: 6 kV according to Icu
• Contact position indicator: Yes
• Control type: Handle
• Local indications: On/Off indication
• Mounting type: Adjustable clip
• Mounting support: Symmetrical 35 mm DIN rail
• Spacing: 9 mm
• Height: 81 mm
• Width: 108 mm
• Depth: 73 mm
• Weight: 0.82 kg
• Color: White
• Mechanical durability: 20,000 cycles
• Electrical durability: 5,000 cycles according to En > 50 A
• Connections: Tunnel-type terminals 1…50 mm² rigid, 1.5…35 mm² flexible
• Cable stripping length: 15 mm
• Tightening torque: 3.5 N·m
• Earth leakage protection: Independent block
• Protection rating IP: IP20 according to Activate/Deactivate Ig
• Contamination degree: 3 according to En > 50 A
• Overvoltage category: IV
• Tropicalization: 2 according to IEC 60068-1
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2,000 m
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -40…85 °C
• Standards: EN/IEC 60898-1 Icu
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: Proactive China RoHS declaration (outside legal RoHS China scope)
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container.
