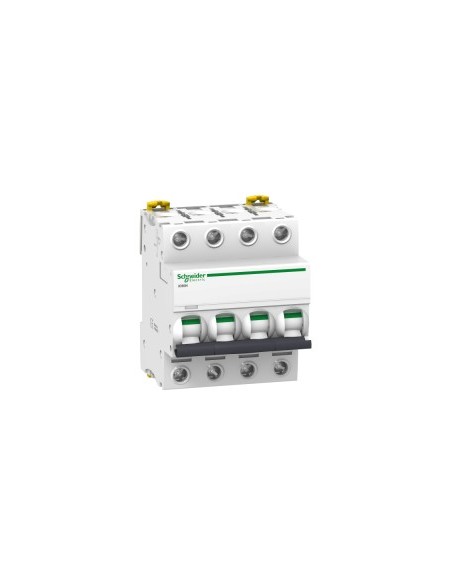

4P modular magnetic thermal switch with a rated current of 10 A and C curve, designed for overload and short-circuit protection in single-phase and three-phase electrical installations. Compatible with DIN rail mounting, provides safe operation on AC and DC networks, with a breaking capacity of 6000 A at 400 V AC 50/60 Hz.
Technical Features
- Number of poles: 4P
- Number of protected poles: 4
- Rated current [In]: 10 A
- Network type: AC, DC
- Trip unit technology: Thermal-magnetic
- Curve code: C
- Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz
- Service breaking capacity [Ics]: 6000 A 100% according to EN 60898-1 - 400 V AC 50/60 Hz
- Limitation class: 3
- Rated operating voltage [Ue]: 220...240 V AC 50/60 Hz, 400 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, 125...180 V DC
- Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
- Surge voltage withstand [Uimp]: 6 kV
- Magnetic trip threshold: 8 x In +/- 20%
- Contact position indicator: Yes
- Local indicators: Trip indicator
- Control type: Handle
- Mounting type: Fixed
- Mounting support: DIN rail
- Connections - terminals: Single terminal - cable type: top or bottom) 1…25 mm² rigid, 1…16 mm² flexible
- Stripped cable length for terminal connection: 14 mm for top or bottom connection
- Tightening torque: 2 N·m top or bottom
- Protection degree IP: IP20
- Contamination degree: 3
- Overvoltage category: IV
- Tropicalization: 2 according to IEC 60068-1
- Relative humidity: 95% at 55 °C
- Maximum operating altitude: 0...2000 m
- Operating ambient temperature: -35…70 °C
- Storage ambient temperature: -40…85 °C
- Mechanical durability: 20000 cycles
- Electrical durability: 10000 cycles
- Earth leakage protection: Independent block
- Standards: IEC 60898-1, EN 60898-1, HB1, En> 50 A
- Quality labels: NF
- Compatibility code: IC60
- Sustainable offering status: Green Premium product
- EU RoHS Directive: Compliant
- Halogen content: Halogen-free product
- REACH Regulation: The reference does not contain SVHC
- Waste Electrical and Electronic Equipment (WEEE): In the European Union market, the product must be disposed of according to a specific waste collection system
