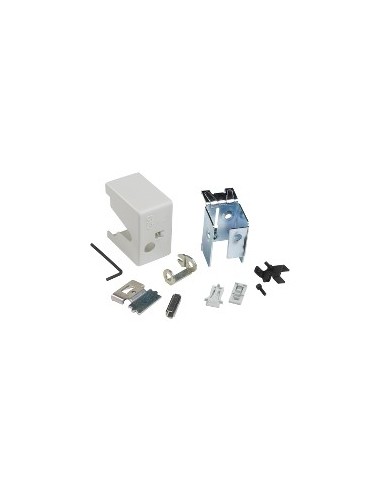

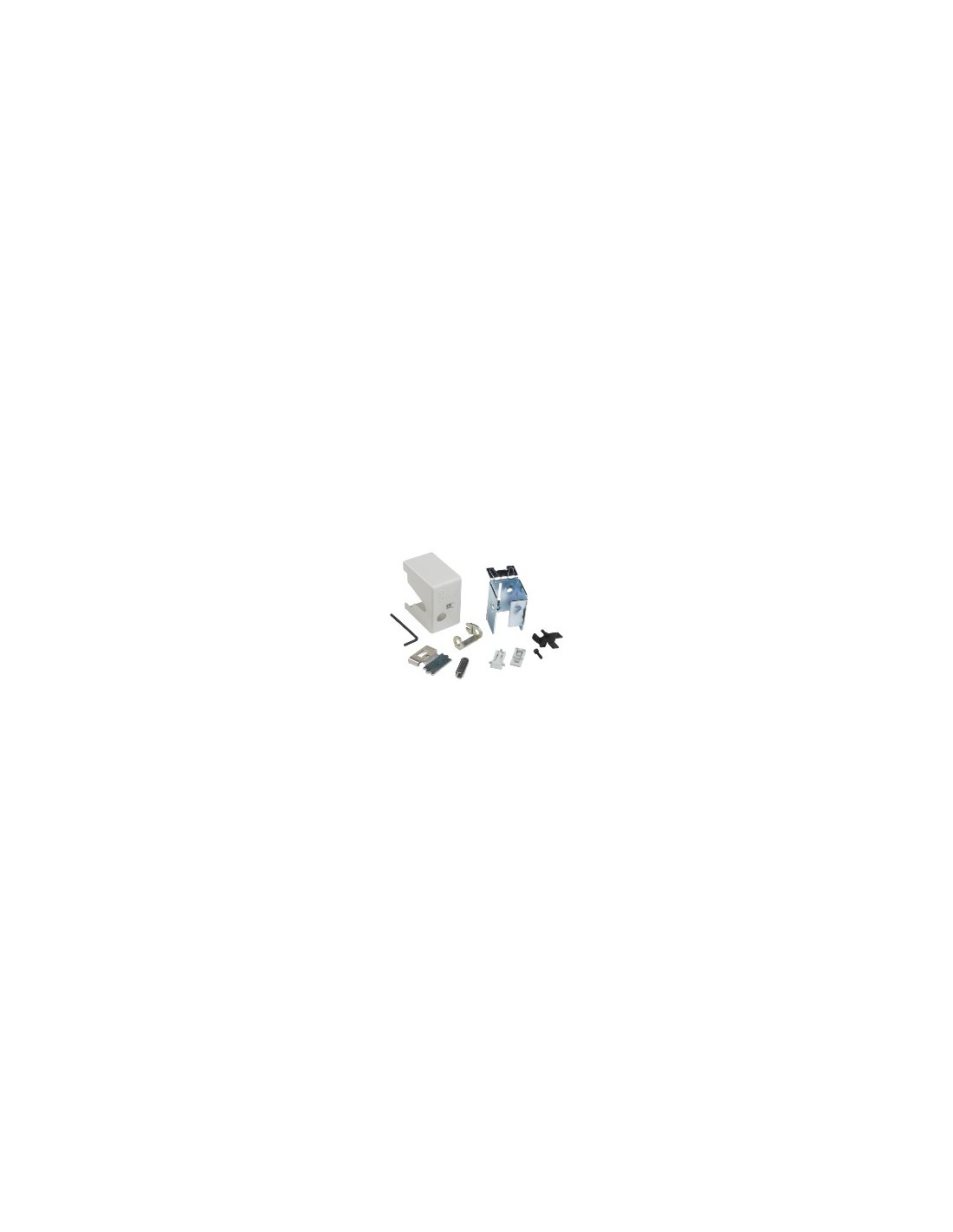

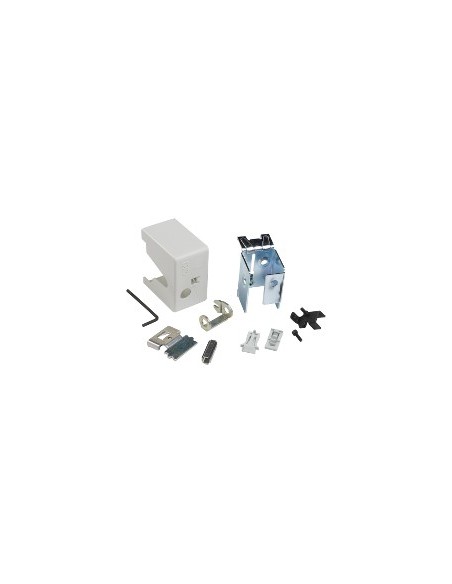

Front rotary handle mechanism C60
Front rotary handle mechanism C60

Front rotary handle mechanism C60

Available In stock 7 Items Reference IMPO 27046
€40.57
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía

Front swivel handle mechanism compatible with ranges C60, DPN, Vigi, ProDis and other series. Designed for installation in front of electrical cabinets. It supports voltages up to 690 V AC. It complies with RoHS EU and REACh regulations without SVCH. Ideal for applications in small shops.

Description

Front rotary control for mechanisms of the range C60 DPN Vigi ProDis NC45...125 Clario Dardo Plus I Multi 9 ISW 20...32 Librio, designed as a complement for the model 27047. Its installation is done in front position, facilitating access and control in environments of small businesses.

Technical characteristics

  • Product range: C60 DPN Vigi ProDis NC45...125 Clario Dardo Plus I Multi 9 ISW 20...32 Librio
  • Type of product or component: Swivel handle mechanism
  • Accessory/component type: Control accessories
  • Place of assembly of rotary control: Front
  • Product compatibility: C60 ISW C60H-DC C120NA-DC DPN C60CTRL C60 UL489 DC DPN Vigi C60 UL489 C60 UL1077 C120
  • Compatibility code: RO_CLIC
  • REACh Regulation: Reference does not contain SVHC
  • According to REACh without SVCC: Yes
  • EU RoHS Directive: As per
  • Without toxic heavy metals: Yes
  • No mercury: Yes
  • Information on RoHS exemptions: Yes
  • RoHS China Regulations: Proactive statement by RoHS China (out of the legal reach of RoHS China)
  • WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container

Product Details

Eléctrico

Nominal voltage (V) 690 V
Current type AC

Otras

EAN 3303430270461
Manufacturer SCHNEIDER
Reference IMPO 27046
Piece type Electrical mechanisms

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 27046
EAN 3303430270461
7 Items
