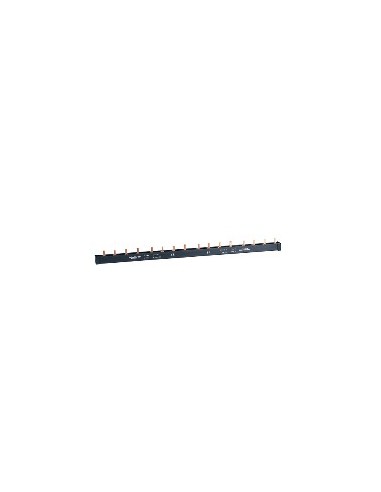

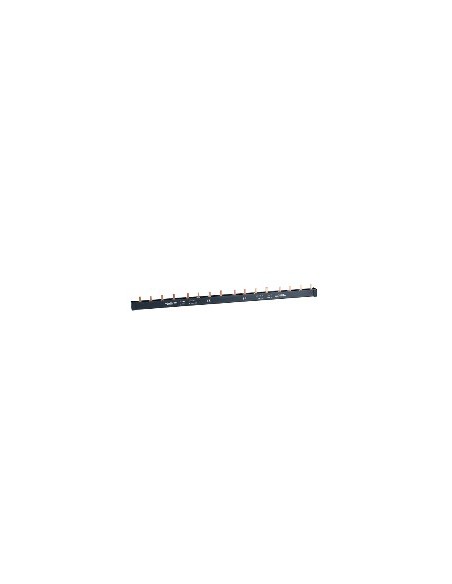

4-pole connection comb 27 mm

Tetrapolar comb of 24 modules of 18 mm, designed for connection in electrical distribution systems. Compatible with the Acti 9 NG125LMA and Acti 9 C120NA-DC range, it has a configuration of 4 3P+N addresses with 16 27 mm span poles.

Technical characteristics

• Total number of 18 mm modules: 24
• Number of addresses: 4 3P+N
• Pole configuration for 1 track: 1 3P + N 1 4P
• Connection step: 27 mm
• Connector type: Tooth
• Distance between tracks: 108 mm
• Marked: N L1 L2 L3
• Insulation: Isolated
• Presentation of the device: Trimmed
• Nominal current of employment: 125 A at 40 °C
• Nominal employment voltage [Ue]: 500 V AC
• Nominal insulation voltage [Ui]: 620 V AC
• Type of assembly: Horizontal
• Mounting location: Upper at tunnel-type terminals
• 9 mm steps: 48
• Width: 430 mm
• Colour: Anthracite grey - cable type: RAL 7016
• Range compatibility: Acti 9 NG125LMA Acti 9 C120NA-DC
• Standards: IK07
• Fire resistance: 960 °C (30 s) according to IEC 60695-2-1
• Degree of contamination: 3
• Sustainable supply status: Product Green Premium
• REACh Regulation: Reference does not contain SVHC
• According to REACh without SVCC: Yes
• EU RoHS Directive: As per
• Without toxic heavy metals: Yes
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Proactive statement by RoHS China (out of the legal reach of RoHS China)
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
