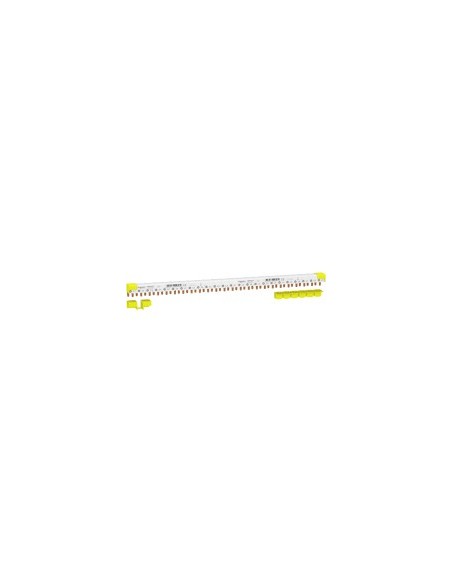

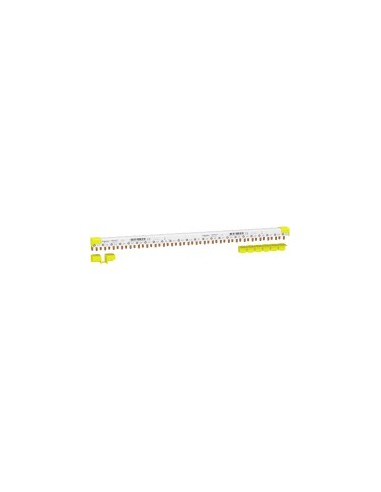

3P+N connection comb of the Acti9 range, designed for horizontal assembly in terminals of the upper tunnel type. Compatible with a wide range of Acti9 series devices, it allows a secure and efficient connection in three-phase electrical installations with neutral. Its balanced configuration facilitates an orderly distribution of phases and neutral.
Technical characteristics
- Total number of 18 mm modules: 24
- Number of addresses: 8 tracks N + 3 L (balanced)
- Connection step: 9 mm between phase and neutral, 18 mm between phases
- Connector type: Tooth
- Distance between tracks: 54 mm
- Marked: N L1 N L2 N L3
- Insulation: Isolated
- Presentation of the device: Trimmed
- Nominal current of employment [Ye]: 80 A at 40 °C
- Nominal use voltage [Ue]: 230 V AC Phase/N, 400 V AC Phase/Phase
- Isolation rated voltage [Ui]: 440 V AC according to IEC 61439-1
- Voltage peak resistance [Uimp]: 4 kV
- Type of assembly: Horizontal
- Mounting location: Upper at tunnel-type terminals
- 9 mm steps: 48
- Height: 32 mm
- Width: 434 mm
- Depth: 28 mm
- Product weight: 180 g
- Colour: White (RAL 9003)
- Range compatibility: Acti9 DT40 Vigi, Acti9 DT60 Vigi, TG40 Vigi, TG60 Multi 9 N40 Vigi, Multi 9 NC100, Acti9 iDT40, Acti9 iDD40, Acti9 iDD40 TG Vigi, iTG40, Acti9 iIG40, Acti9 iDT40K, Acti9 iDD40K, Acti9 iIG40K
- Standards: EN/IEC 60439-1
- Fire resistance: 960 °C (30 s) according to IEC 60695-2-1
- Degree of contamination: 3 according to EN/IEC 60439-1
- Degree of IP protection: IP20 with end parts and tooth covers
- Sustainable supply status: Product Green Premium
- REACh Regulation: Reference does not contain SVHC
- According to REACh without SVCC: Yes
- EU RoHS Directive: As per
- Without toxic heavy metals: Yes
- No mercury: Yes
- Information on RoHS exemptions: Yes
- RoHS China Regulations: Proactive statement by RoHS China (out of the legal reach of RoHS China)
- WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a garbage container.
