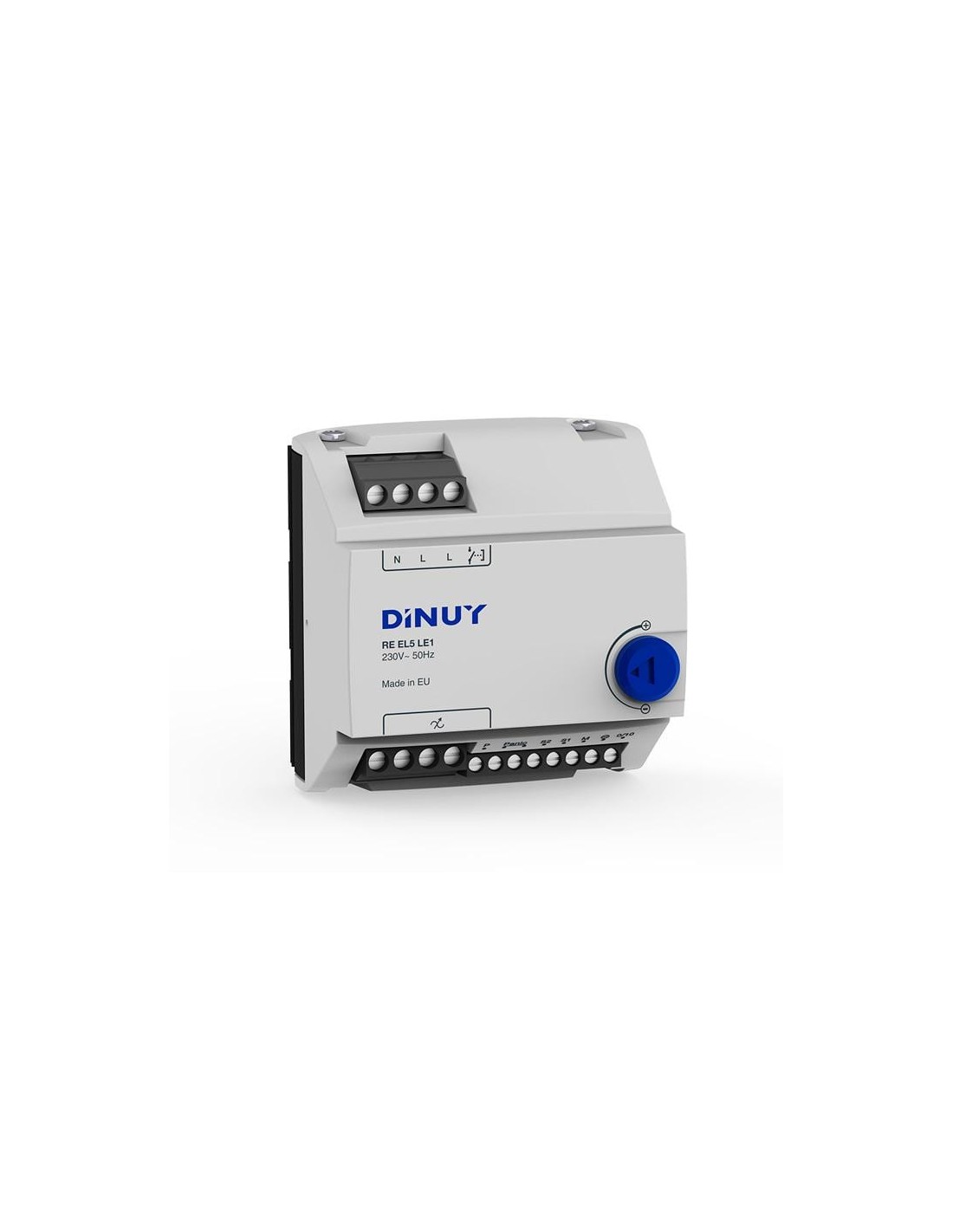

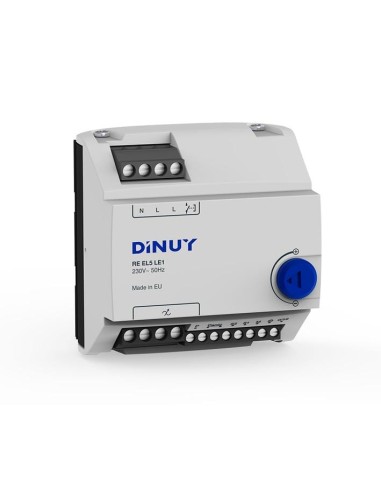

Modular LED Regulator 230V 5 modules DIN rail

The Sonepar modular regulator is an electronic control device specifically designed for the dimming of LED lamps and lighting strips via phase-cutting at the beginning of the cycle. Its technology allows precise management of light intensity in residential, commercial, and industrial environments requiring efficient and energy-saving adjustable lighting systems.

Technical Features

• Modular format 5 modules wide for DIN rail mounting.
• Versatile control via push button, integrated potentiometer or analog signals 0/10V and 1/10V.
• Memory function that restores the previous state after power cuts.
• Adaptable selector to configure the regulation curve according to the lamp type.
• Master/Slave configuration to expand controlled power with multiple interconnected units.
• Anti-panic input that activates maximum lighting in security alarms.
• Nominal voltage: 230 V, Frequency: 50 Hz, Own consumption: 2.5 W.
• Dimensions: 87.5 x 90 x 65 mm, Material: Grey matte thermoplastic (RAL 9003).
• Click fixation and cable section compatible up to 6 mm².

This system ensures uniform flicker-free lighting, optimizing the performance of LED drivers. The interconnection possibility allows creating complex control networks from a single point, facilitating centralized management of large luminous surfaces with high operational flexibility.

Installation is simple via DRA adapter for DIN rail and click fixation, requiring a minimum box depth of 0 mm. Its robust design in halogen-free thermoplastic ensures durability in standard IP20 installations, being ideal for integration into existing electrical panels without deep structural modifications.
