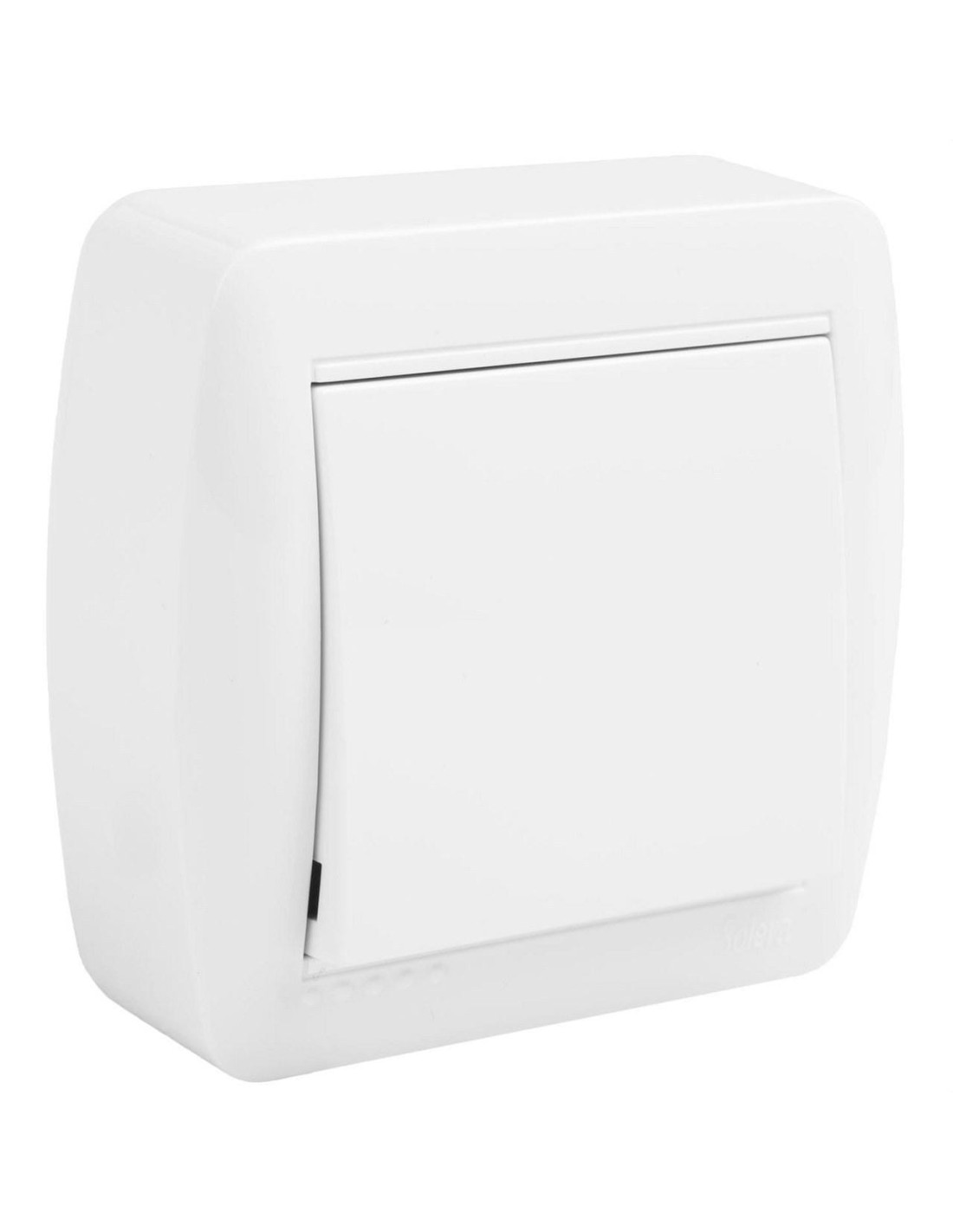

Mural Series 10A 250V White Cross Switch

The Mural series cross switch is an intermediate switch designed for modern cabling systems, allowing lighting control from multiple points. Its silver contact technology ensures high breaking power and durability in residential and commercial environments. This device integrates perfectly into walls with plaster or plaster, offering an aesthetic and functional solution for electrical management. It has a swing mechanism that ensures smooth and precise operation every time it is activated.

Technical characteristics

• Nominal voltage: 250 V
• Assigned current: 10 A
• Housing material: Halogen-free thermoplastic
• Colour: White bright surface
• Dimensions: 74x72x28 mm
• Connection type: Hole terminals
• Input for channels: 10x12, 10x16 and 10x22
• Intensity fluorescent lamps: 10 A
• Degree of protection: IP20
• Method of assembly: Superficial (spray)

The main advantages lie in its robustness and compatibility with existing infrastructures. Silver contacts minimize energy loss and prevent overheating during frequent on-off cycles. The absence of halogens contributes to a lower emission of toxic fumes in case of fire, improving the overall safety of the building. Its compact design allows a discreet installation without occupying additional space in the cabling channels.

For installation, it is necessary to attach the device to the motherboard using screws suitable for wall thickness. Wires must be connected to the hole terminals following the circuit's electrical scheme, ensuring a correct tightening to avoid partial contacts.
