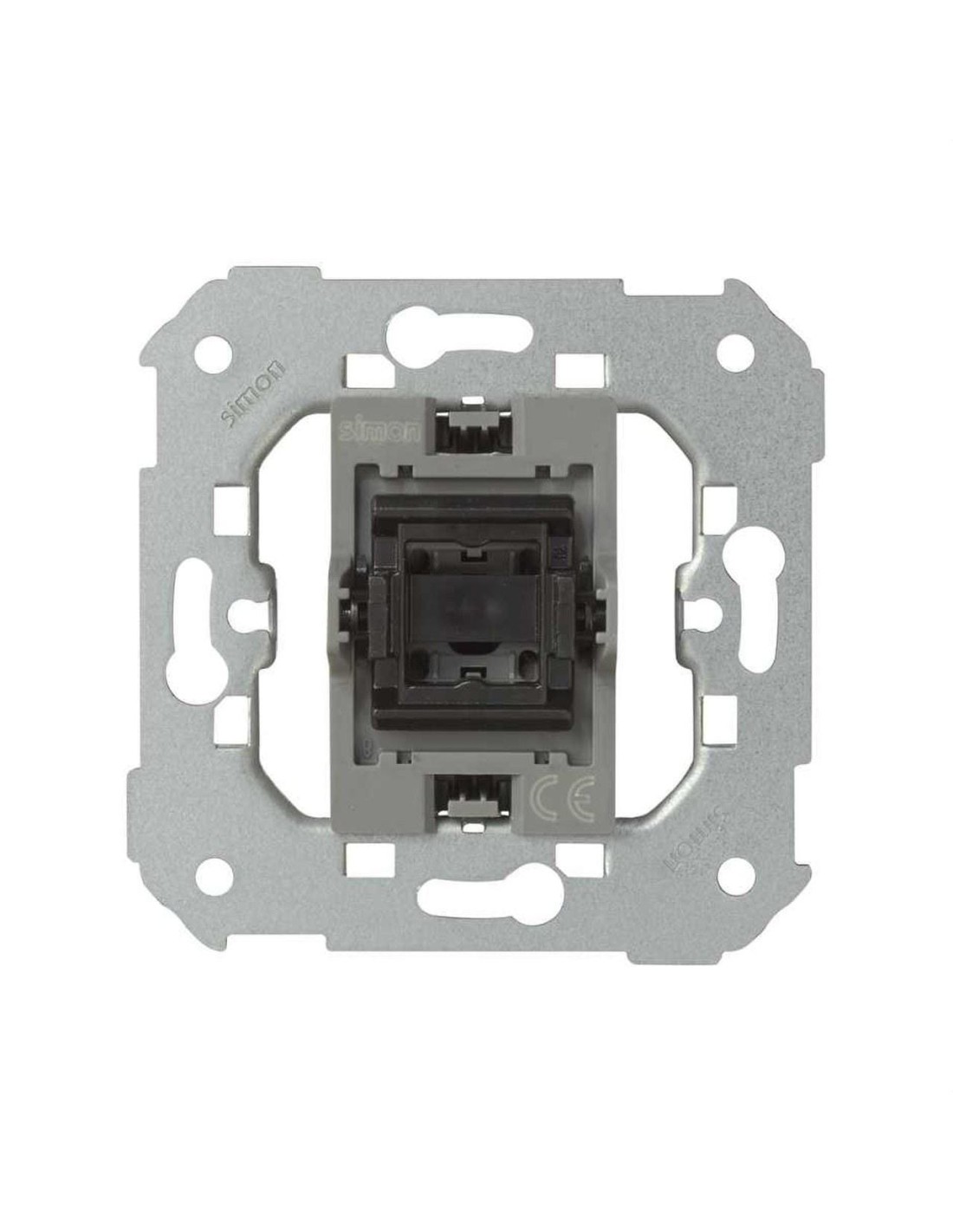

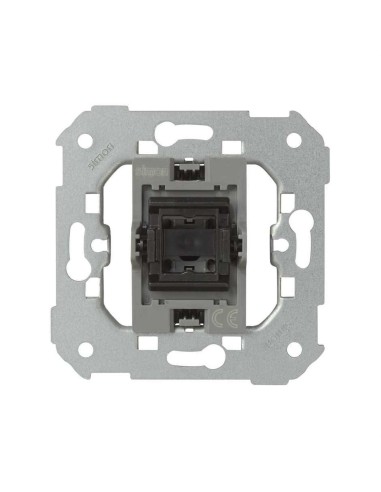

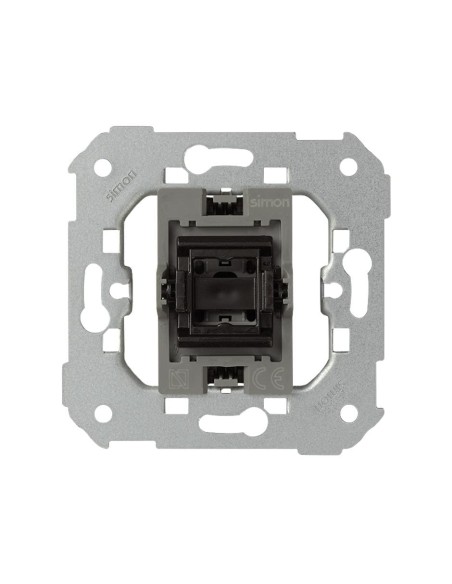

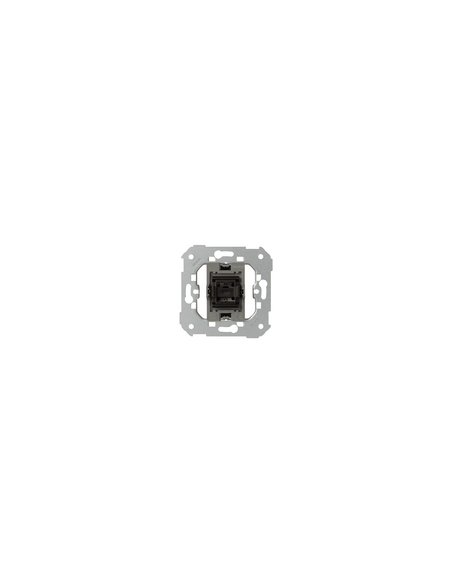

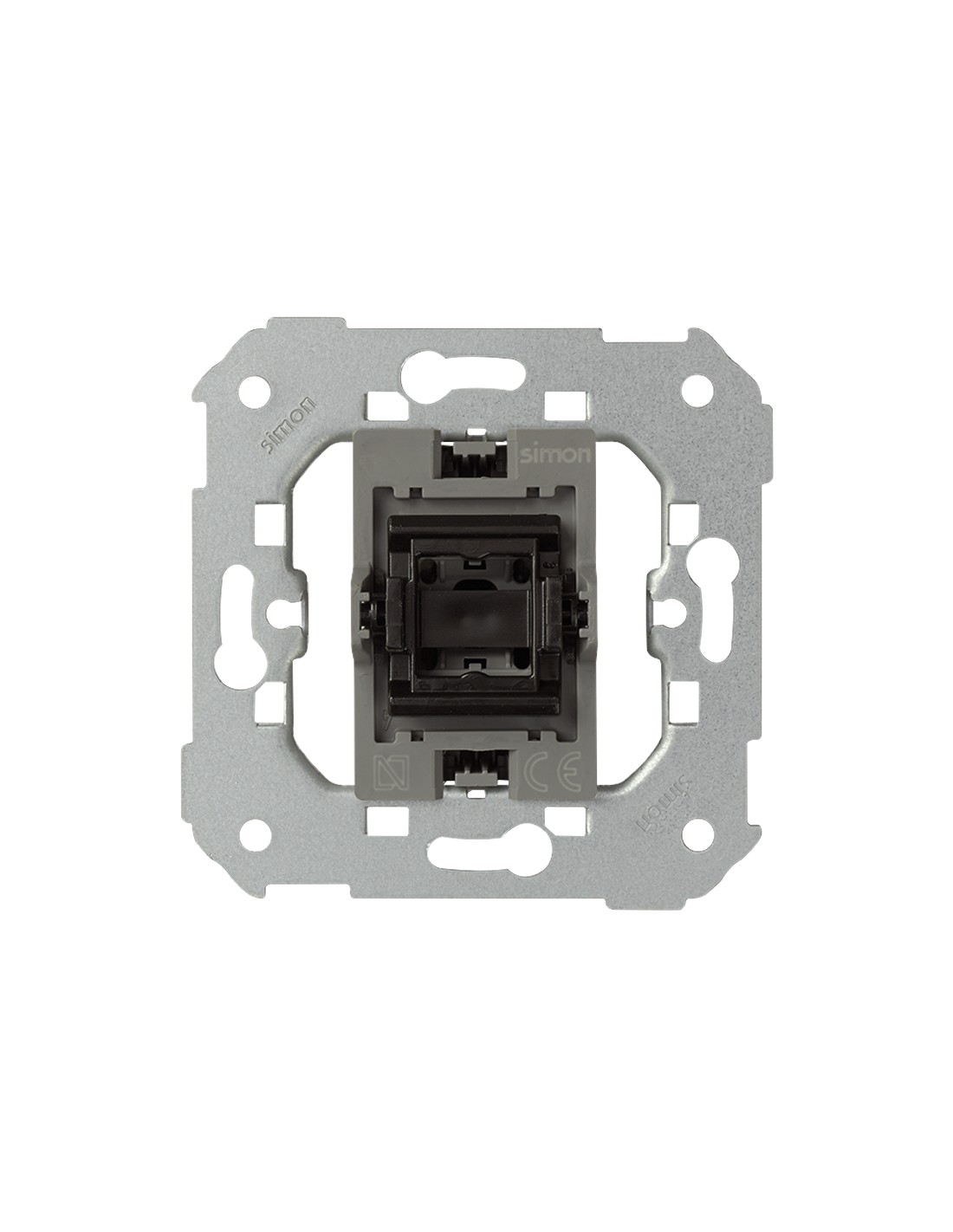

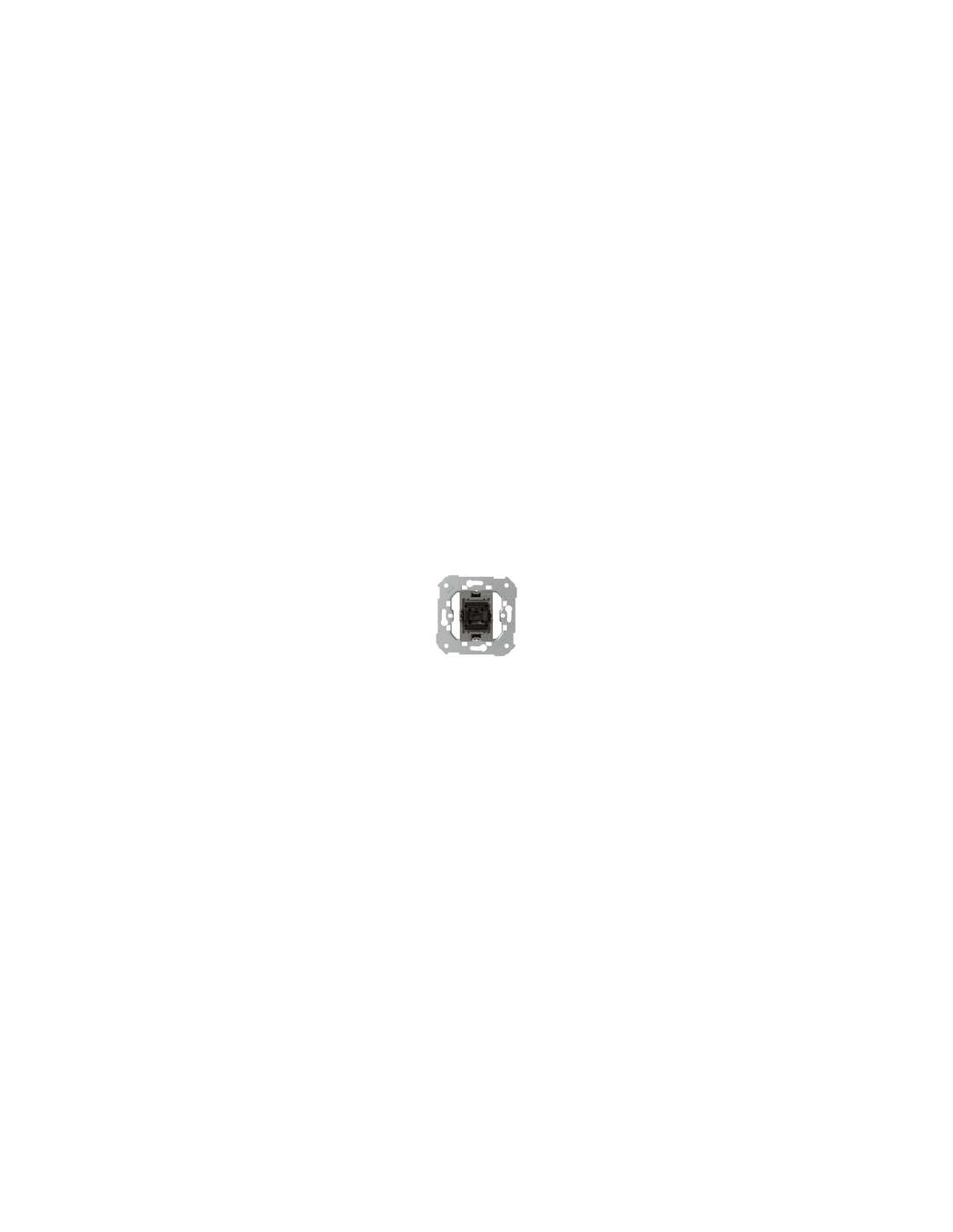

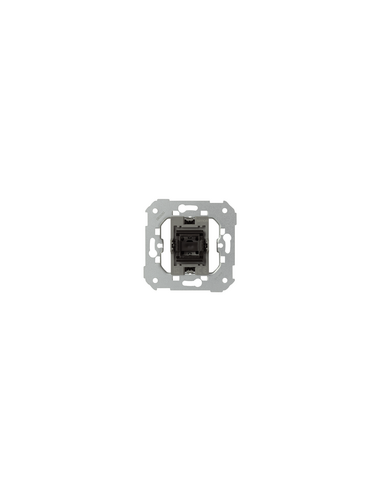

Simon 77 one-way switch 10A 250V

The Simon 77 switch is a basic single-gang switch designed for controlling electrical circuits in residential and commercial installations, offering safe operation through its 1click® wiring system.

Technical Specifications

• Series: Simon 77
• Current rating: 10 AX
• Nominal voltage: 250 V~
• Admitted cable cross-section: From 1.5 to 2.5 mm
• Gangs: 1 gang
• Number of modules: 1
• Material: Halogen-free thermoplastic plastic
• Operating temperature range: 5 - 40 ºC (supports up to -25 and 50 ºC)
• Wiring system: 1click®

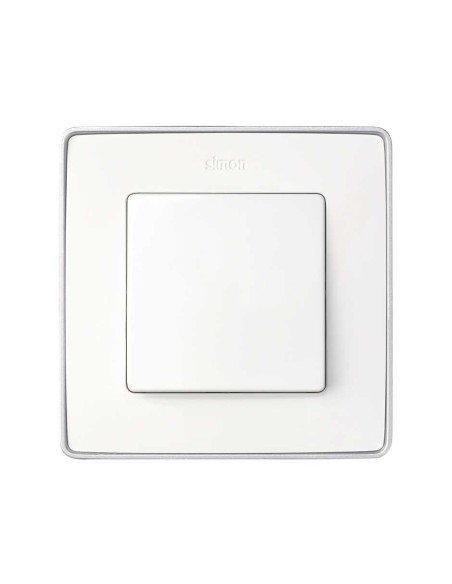

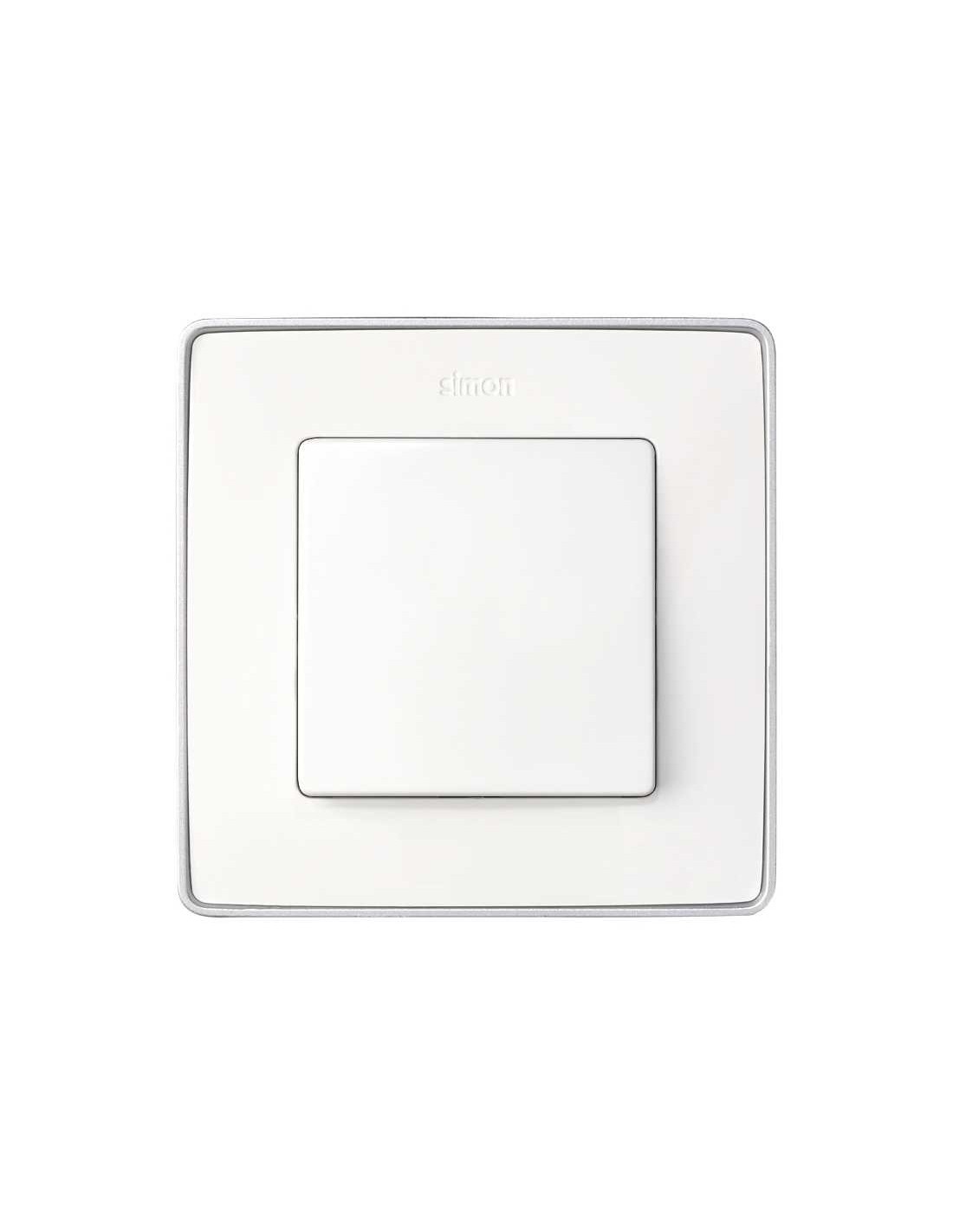

• Compatibility: Simon frames 75, 82 Detail, 82 Nature, 82, and 88
• Clips: Simon 27
• Compliance standards: UNE-EN 60669-1, EN 60998-2-3, and EU LVD and RoHS directives

Its versatility allows use in various environments where a reliable switch is required, taking advantage of the ease of connection via plug-in clamp and its ability to withstand variable thermal conditions.

The mounting is universal, suitable for both recessed installation in plaster and surface mounting, facilitating integration into existing electrical panels or new construction without the need for additional complex adapters.
