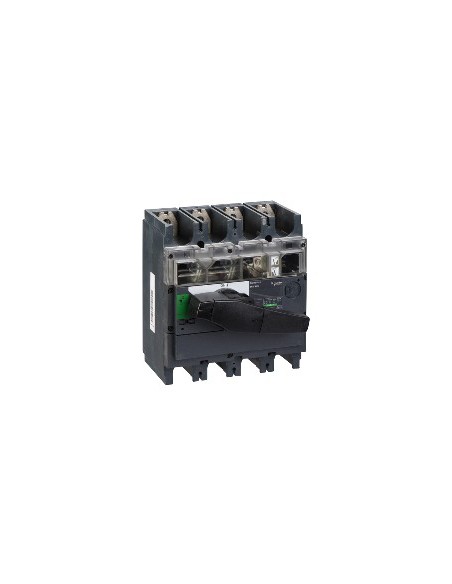

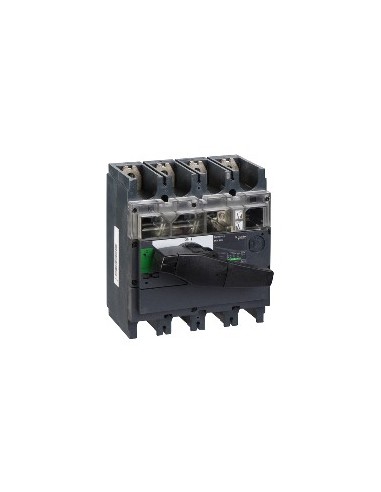

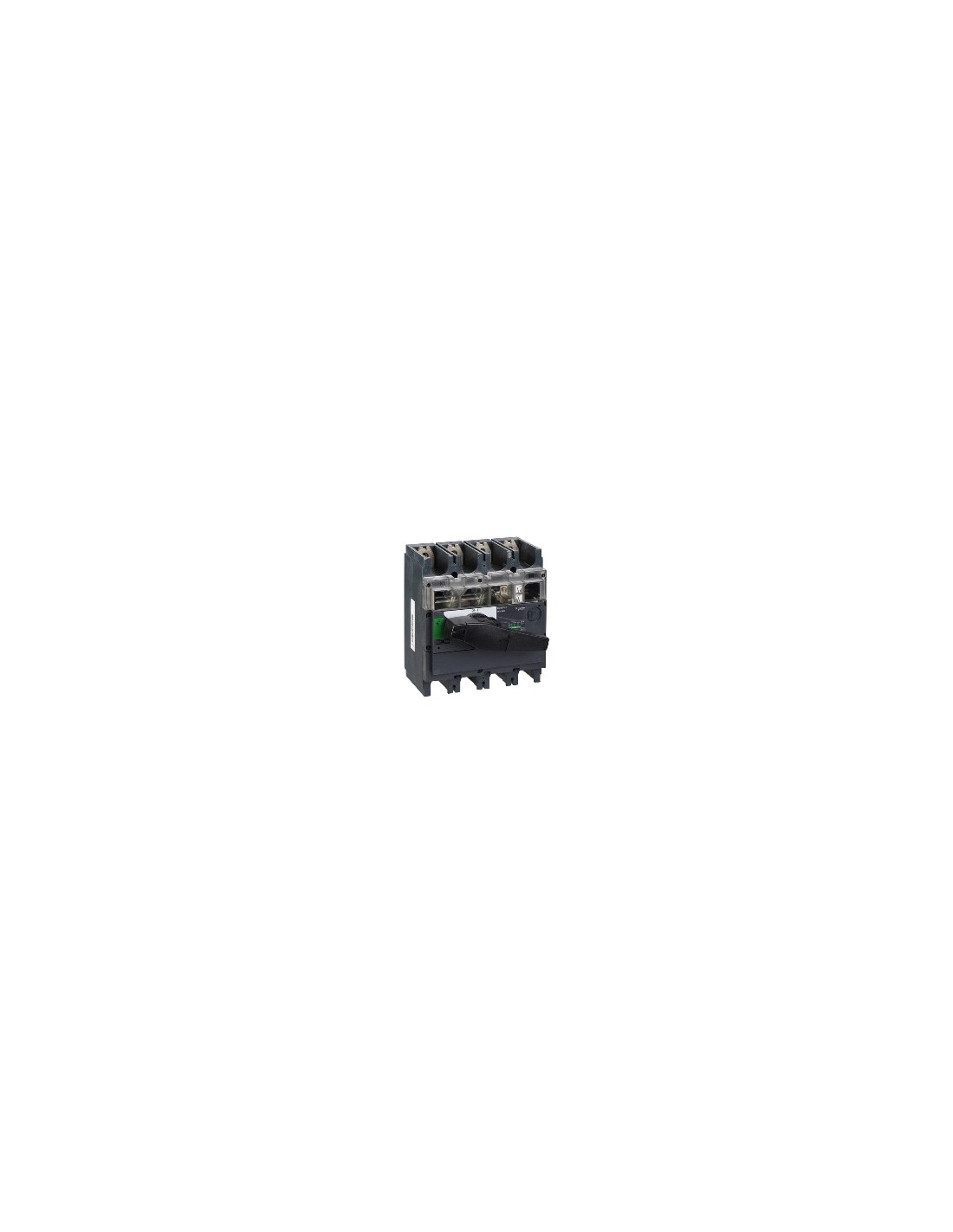

Compact INV400 4-pole 400 A black isolating switch

Name: Compact INV400 4-pole 400 A black isolating switch
Brand: SCHNEIDER
SKU: 710858
Price: 487.86 EUR
Availability: InStock

Available In stock 100 Items

Reference IMPO 31171

€487.86

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP40
Colour Black

Compact 4 pole, 400 A switch, with visible cut and black rotary control. Designed for AC 50/60 Hz networks up to 690 V and DC up to 250 V. It meets IEC 60947-3 standards, offers 10,000-cycle mechanical durability and IP40, IK07 protection.

Description

Compact 4-pole switch switch, designed for industrial applications in alternating and continuous current. It offers visible cutting and control with black rotary control, ensuring safe and controllable operation. It is suitable for networks up to 690 V AC and 250 V DC, with nominal current of 400 A in multiple configurations.

Technical characteristics

Number of poles: 4P
Network type: AC / DC DC DC AC / DC DC AC / DC AC / DC AC / DC AC / DC AC / DC AC / DC AC / DC AC / DC AC / DC AC / DC AC / DC AC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / AC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC / DC /
Network frequency: 50/60 Hz
Handle colour: Black
Nominal current of employment (E): 400 A in AC-21A, AC-22A, AC-23A and DC-21A, DC-22A, DC-23A
Nominal insulation voltage (Ui): 750 V AC 50/60 Hz
Voltage peak resistance (Uimp): 8 kV
Conventional thermal current (Ith): 400 A at 60 °C
Nominal short circuit capacity (icm): 330 kA with automatic upstream switch; 50 kA single switch-selector
Nominal operating voltage (Ue): 690 V AC 50/60 Hz, 250 V DC
Sewing power: Yes
Contact position indicator: Yes
Visible cut: Yes
Degree of contamination: 3
Type of control: Rotary Command
Type of assembly: Fixed
Mounting bracket: Rail plate
Top connection: Front
Connection down: Front
Maximum power: Up to 400 kW in 660/690 V AC
Nominal service Uninterrupted
Permissible temporal current (Icw): 11.5 kA (3 s), 20 kA (1 s), 4 kA (30 s), 4.9 kA (20 s)
Mechanical durability: 10000 cycles
Electrical durability: 1000 cycles in AC-21A, AC-22A, AC-23A, DC-21A, DC-22A, DC-23A
Connection step: 45 mm
Height: 205 mm
Width: 185 mm
Depth: 130 mm
Weight: 4.9 kg
Compatibility code: INV400
Standards: Instant and demand values In> 40 A
Certifications: KEMA-KEUR, CCC
Degree of IP protection: IP40
Level of protection IK: IK07
Operating ambient temperature: -25...70 °C
Storage ambient temperature: -50...85 °C
Sustainable supply status: Product Green Premium
EU RoHS Directive: As per
REACh Regulation: No SVHC

Product Details

Dimensiones

Measures	205 x 185 x 130
Width	18,5 cm
Long	20,5 cm
Depth	13 cm
Weight (kg)	4,9

Eléctrico

Nominal voltage (V)	690 V AC 50/60 Hz, 250 V CC
Rated voltage	250
Rated current (A)	400

Protección

Protection	IP40

Otras

Frequency	50/60 Hz
EAN	3303430311713
Manufacturer	SCHNEIDER
Range	Industrial
No. of poles	4P
Reference	IMPO 31171
Colour	Black
