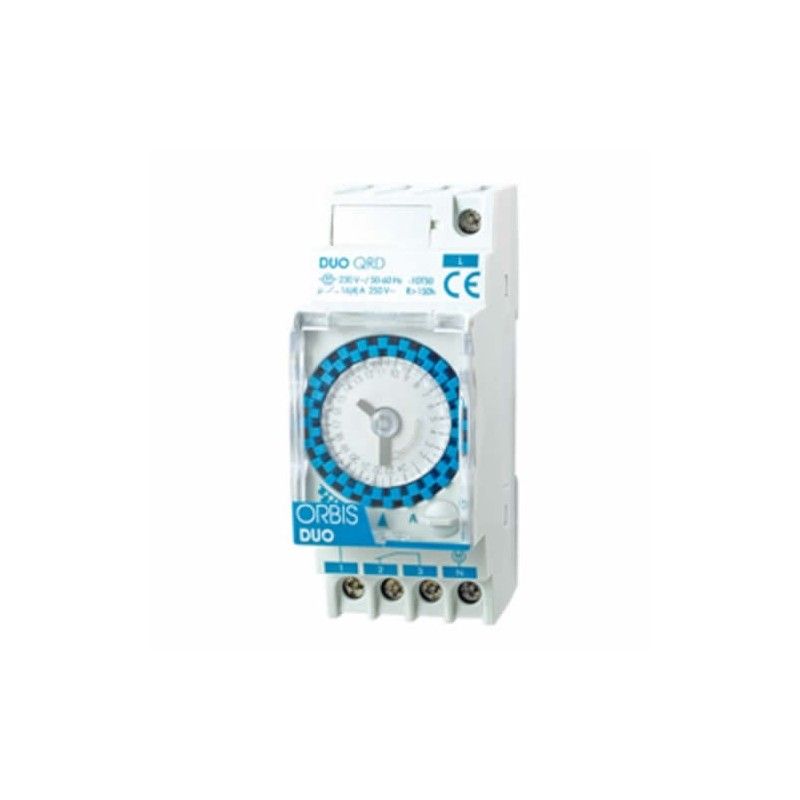

Switch hours analog weekly DUO QRD Orbis 292032
Weekly analog time switch DUO QRD Orbis 292032
Weekly analog time switch DUO QRD Orbis 292032
Weekly analog time switch DUO QRD Orbis 292032
Switch hours analog weekly DUO QRD Orbis 292032
Weekly analog time switch DUO QRD Orbis 292032
Weekly analog time switch DUO QRD Orbis 292032
Weekly analog time switch DUO QRD Orbis 292032

Weekly analog time switch DUO QRD Orbis 292032

Available In stock 29 Items Reference ORBIS OB292032
€134.31
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía

Switch hours análogico of two modules of width, that incorporates a switch of a permanent connection, disconnection, permanent or automatic operation Orbis DUO QRD

Description

Switch hours analog weekly DUO QRD Orbis 292032

Features:

  • Schedules daily or weekly.
  • Switched potential-free contact.
  • Versions with or without power reserve.
  • Sphere front.
  • Hot-swappable battery
  • Sphere front of easy viewing and programming.
  • Daily/30 min., Weekly/3.5 h.

Technical features:

I rated

230 Vc.to.


Nominal frequency 50-60 Hz
Power of rupture 16(4) A/250 Vc.to.
Reserve 150 hours
Hot-swappable battery
Precision gear ± 1s/day at 23 ºC
Own consumption 0.5 W approx.
Maximum loads recommended:
  • Incandescent Lamps: 3000 W.
  • Fluorescent offset (including electronic ballast): 1200 VA.
  • Halogen 12 V (including TRAFO-mail): 2000 VA.
  • Halogen 230 VAC : 3000 W.
  • Lamps low consumption (CLF): 1000 VA.
  • Lamps low consumption (DOWNLIGHTS): 900 VA.
  • Leds: 200 VA.
Type of contact Switched
Manual control OFF-Auto-ON
Temperature
operation		 -10 ºC to +45 ºC
Protection class II mount, right
Degree of protection IP 20 according to en 60529
Mounting On profile symmetric 35 mm according to en 60715

Product Details

Eléctrico

Nominal voltage (V) 230V
Rated current (A) 16

Otras

EAN 8426709108953
Manufacturer Orbis
Reference ORBIS OB292032

Información legal

Fabricante ORBIS
Dirección C, ES
Email [email protected]
Teléfono +34 913000000
Referencia ORBIS OB292032
EAN 8426709108953
29 Items
