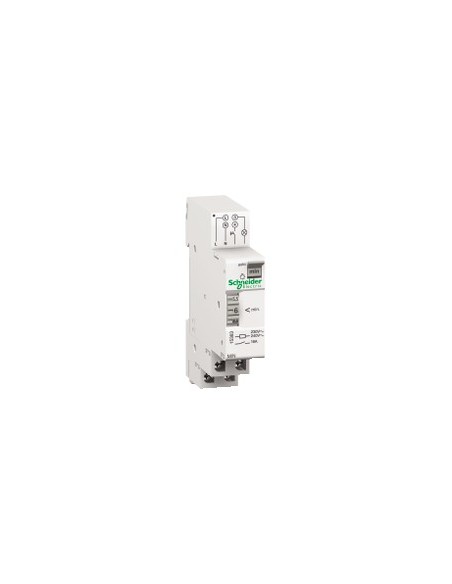

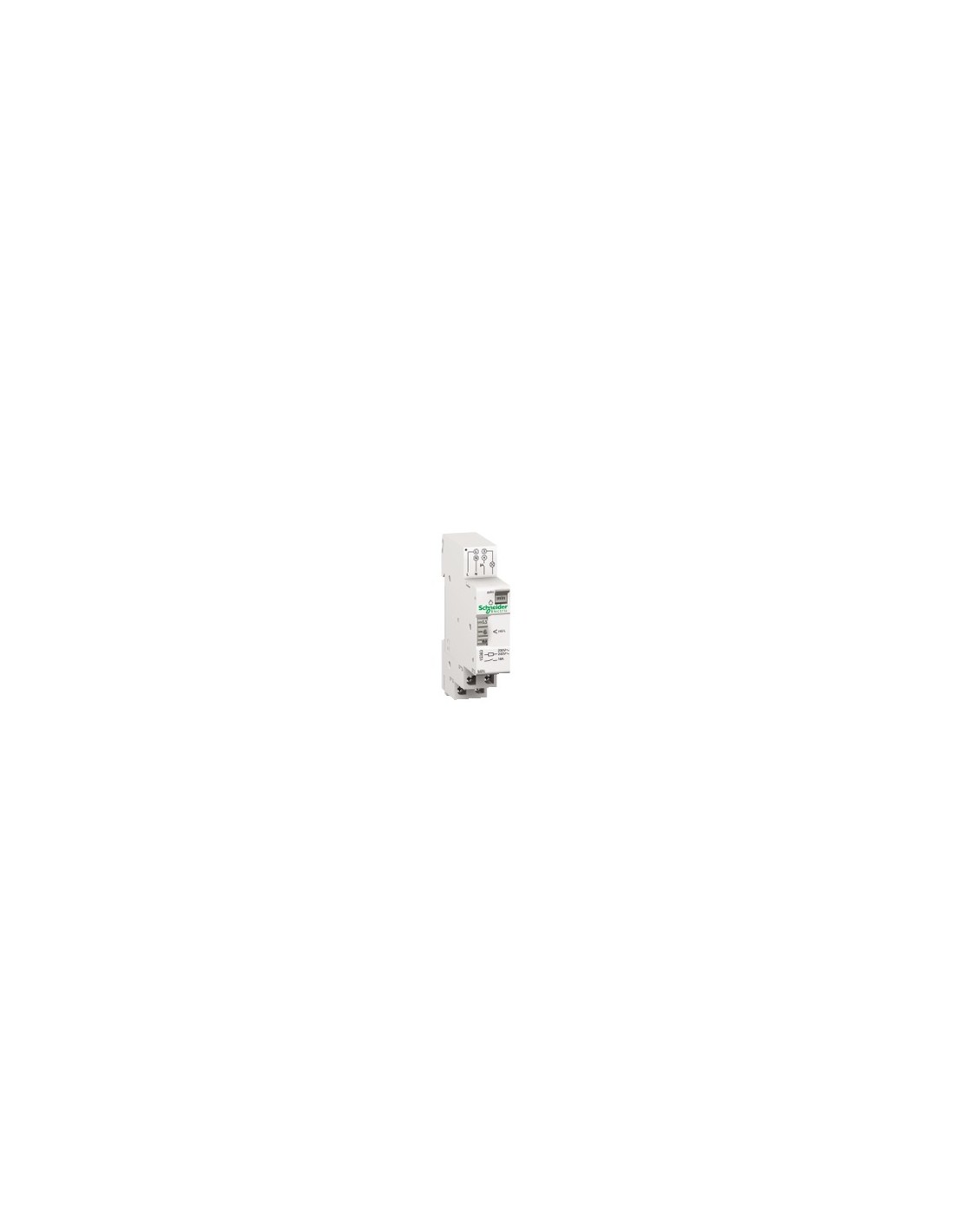

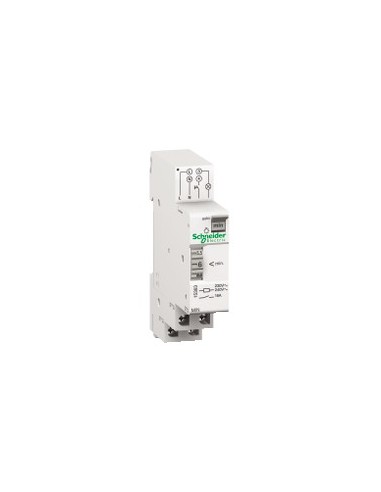

Acti9 MIN Automatic Timer Switch 1-7 min 16A
Acti9 MIN Automatic Timer Switch 1-7 min 16A

Acti9 MIN Automatic Timer Switch 1-7 min 16A

Available In stock 100 Items Reference IMPO 15363
€50.93
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP20

Electromechanical timer switch from the Acti9 range, designed for building applications. Adjustable between 1 and 7 minutes, supports up to 16 A at 230 V AC with power factor 1. Connection via screw terminals up to 6 mm², DIN rail mounting.

Description

Automatic timer switch from the Acti9 range, designed for building applications. Allows automatic control of electrical installation on/off with adjustable timing from 1 to 7 minutes. Ideal for lighting systems in small commercial environments.

Technical specifications

  • Product type: Electromechanical timer
  • Rated operating voltage: 230 V AC at 50 Hz
  • Maximum switching current: 16 A - 230 V AC pf = 1
  • Timing range: Adjustable from 1 to 7 minutes
  • Mounting support: DIN rail
  • Spacing: 9 mm - 2
  • Connections: Screw terminals - <= 6 mm²
  • Width: 18 mm
  • Height: 83 mm
  • Depth: 68 mm
  • Weight: 84 g
  • Protection degree: IP20 B
  • Operating ambient temperature: -10…50 °C
  • Connection type selector: Selector
  • Maximum power consumption: 1 VA
  • Application: Buildings
  • Market segment: Small businesses
  • Content: Mercury-free
  • Compliant with EU RoHS Directive
  • Green Premium product

Used in lighting installations with loads such as fluorescent tubes, halogen lamps, incandescent lamps, compact fluorescent lamps, and LED, always within specified power and current limits.

Product Details

Accesorios

Timer Yes

Dimensiones

Measures 18 mm x 83 mm x 68 mm
Width 18 mm
Long 18 mm
Depth 68 mm
Weight (kg) 0.084 kg

Eléctrico

Nominal voltage (V) 230 V
Current type AC
Rated current (A) 16

Protección

Protection IP20

Ventilación

Engine AC

Otras

Frequency 50 Hz
EAN 3303430153634
Manufacturer SCHNEIDER
Halogen-free Yes
Reference IMPO 15363
Cable cross-section (mm²) 6 mm²
