• Model for installation with 3 wires
• Its installation scheme coincides with that of most existing timers on the market
• One module wide. Fixing to DIN rail
• Manual switch with two positions: automatic ignition or permanent ignition
• Resettable at any time during the timing
Drop your email and we'll let you know the moment it's back.
Description

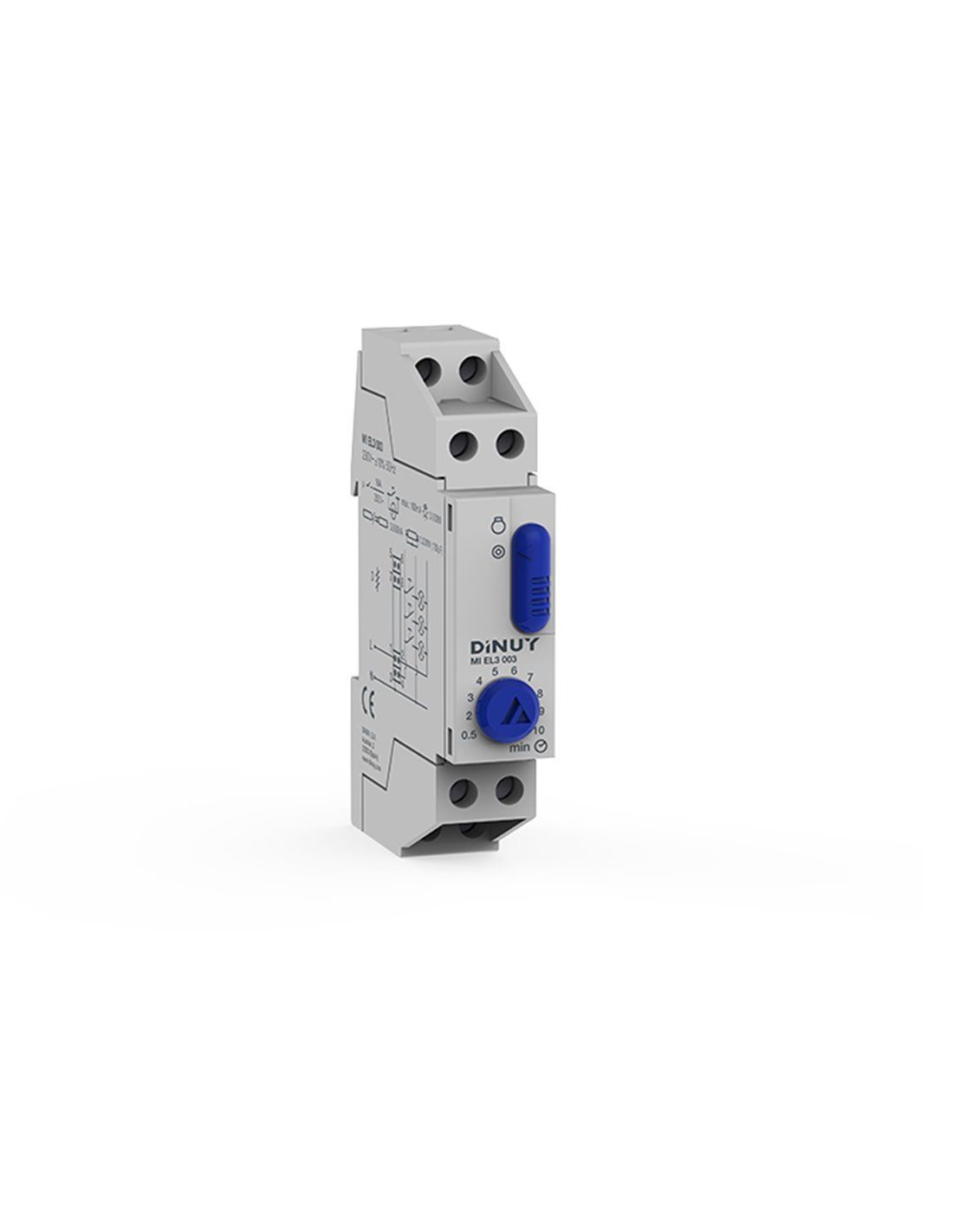

Product reference MI EL3 003
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption 0.7W
Relay breaking power ( A) 16
LED lamps (W) 400
Incandescent and Halogen 230V (W) 3000
Halogen 12V with electronic transformer (W) 3000
Halogen with ferromagnetic transformer (W) 2400
Fluorescent lamps (W) 1300
Fluorescent lamps (VA) 1300
Allows contactor YES
Zero crossing YES
3-wire installation
Permanent lighting YES< br/>Shutdown warning No
Minimum time delay (seconds) 30
Maximum time delay (minutes) 10
Timed remote control No
Illuminated pushbuttons YES (Maximum 100mA)
Temperature Operating Temperature (ºC) (min) -10
Operating Temperature (ºC) (max) 50
Permanent Luminous LED No
DIN Rail Mounting. 1 module
Environmental Protection IP20 according to UNE20324
According to the UNE-EN60669-2-1 and UNE-EN60669-2-3 Standards
