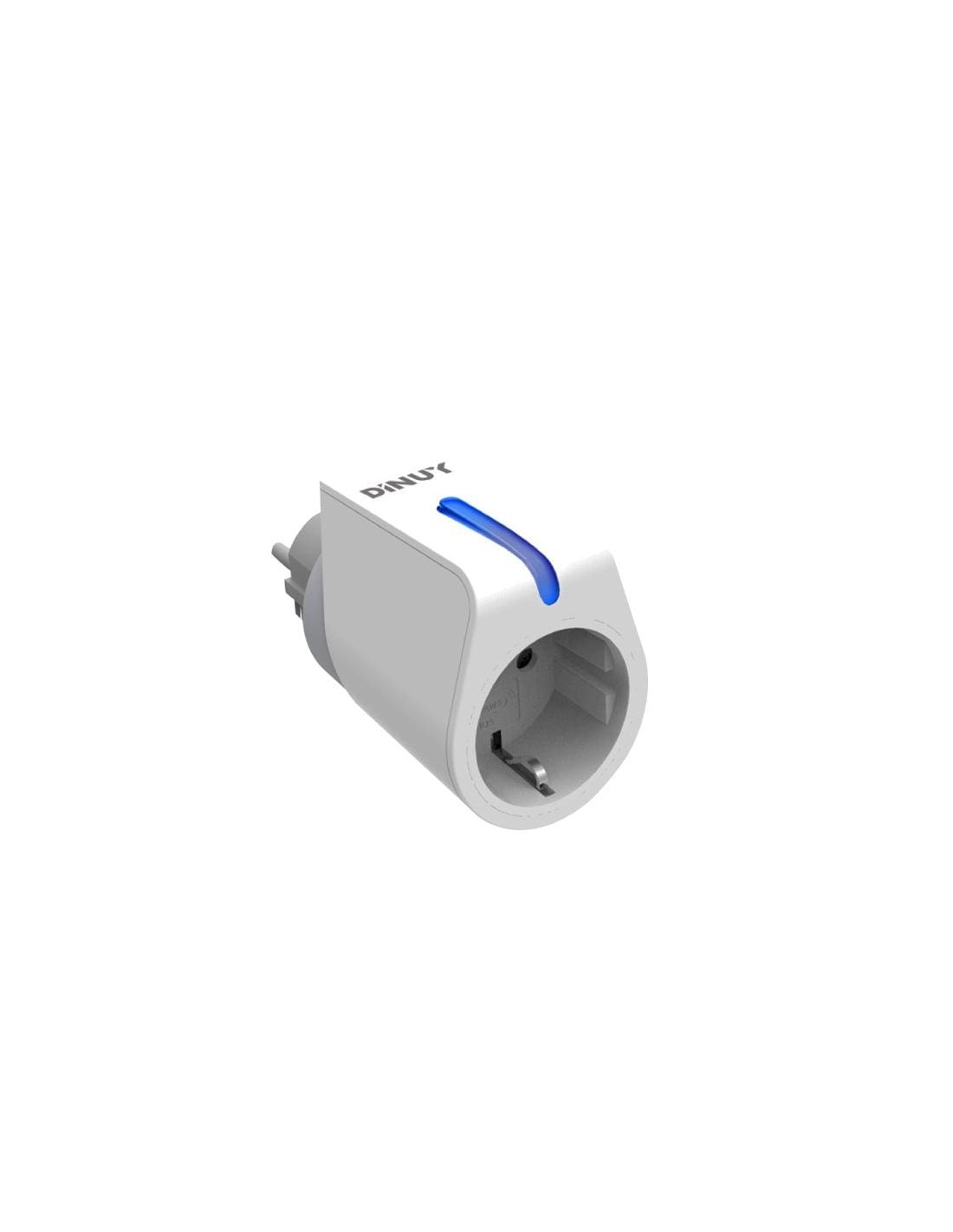

Digital Schuko 16A Timed Programmer with Bluetooth App

The Schuko Timetable is a unique digital channel switch designed to automate the connection and disconnection of electrical charges in homes and offices. It uses zero-pass technology to ensure smooth and safe switching, minimizing stress on connected equipment. Its plug-in format facilitates its installation without works, adapting to any standard shots.

Technical characteristics

• Output channel: 1 x 16 A
• Maximum LED power: 600 W
• Pressure: 50...60 Hz
• Degree of protection: IP20
• Dimensions: 50 mm x 59.4 mm x 61 mm
• Minimum switching time: 1 s
• Contact: Exchange (NA/NC)
• Memory: 1 location

Thanks to its Bluetooth connectivity, it allows remote configuration using the DINOY - Configure app on iOS and Android. It offers flexible weekly programming with up to 64 maneuvers, ON/OFF/Impulse functions and automatic winter-summer time change. Includes PIN security to block unauthorized access and complies with the Ecodesign ISO 14006.

The installation is simple: it is inserted into the socket and fixed by means of its holding cap. It connects to the device to be controlled directly. Its battery life allows operating for up to 10 years without maintenance, syncing with the power grid to maintain time accuracy even if the power fails temporarily.
