3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

3-wire timed touch switch with claws IP20 8x8x4,5cm white color

Power (W) 400 – 3000
Colour White
Protection IP20

Reference DINUY PT GAR EL1

Available

€69.87

VAT included

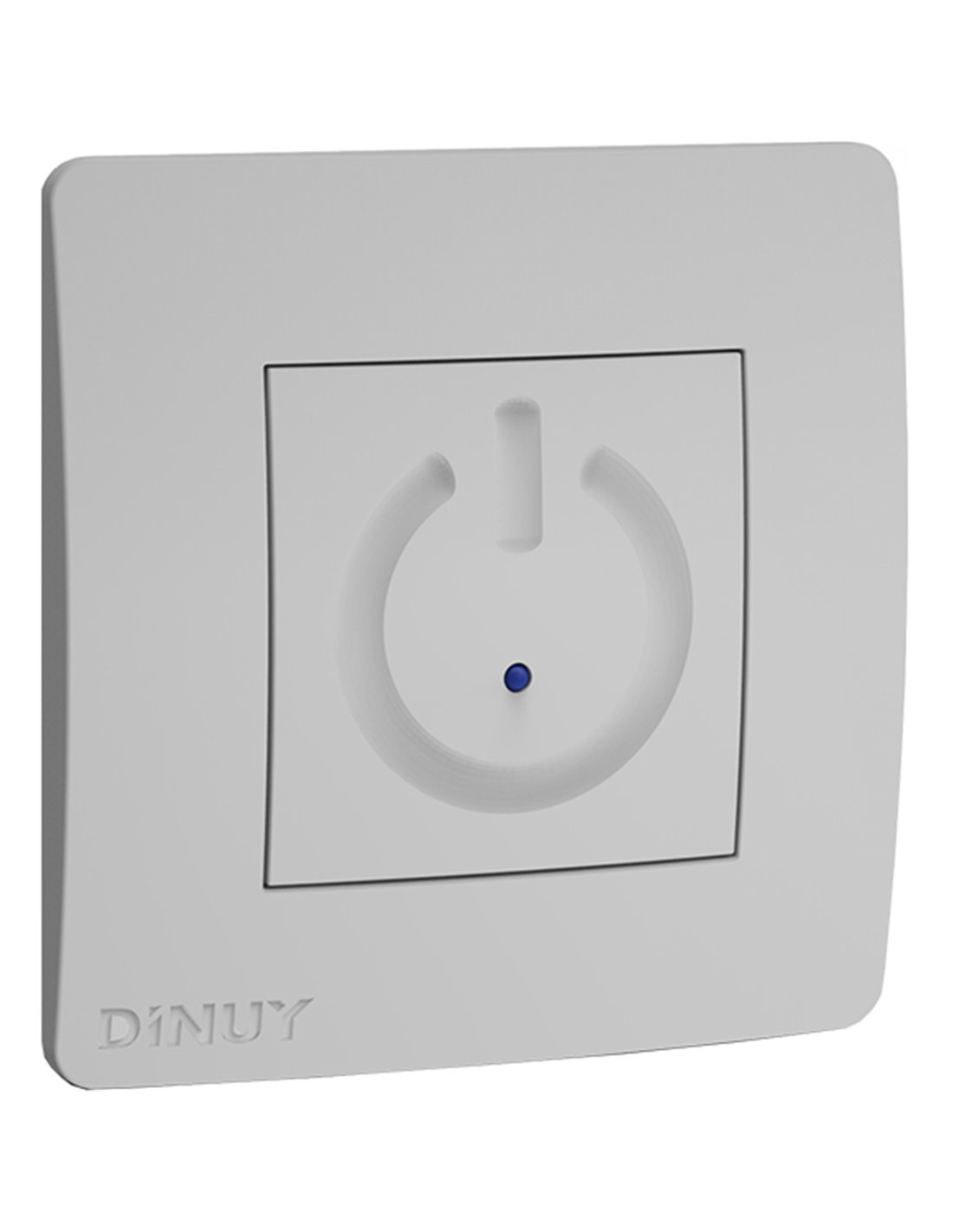

The 3-wire timed touch switch is a practical and efficient solution for controlling lighting and extractors. Its elegant, recessed design in white adapts to any environment, offering functionality and style.

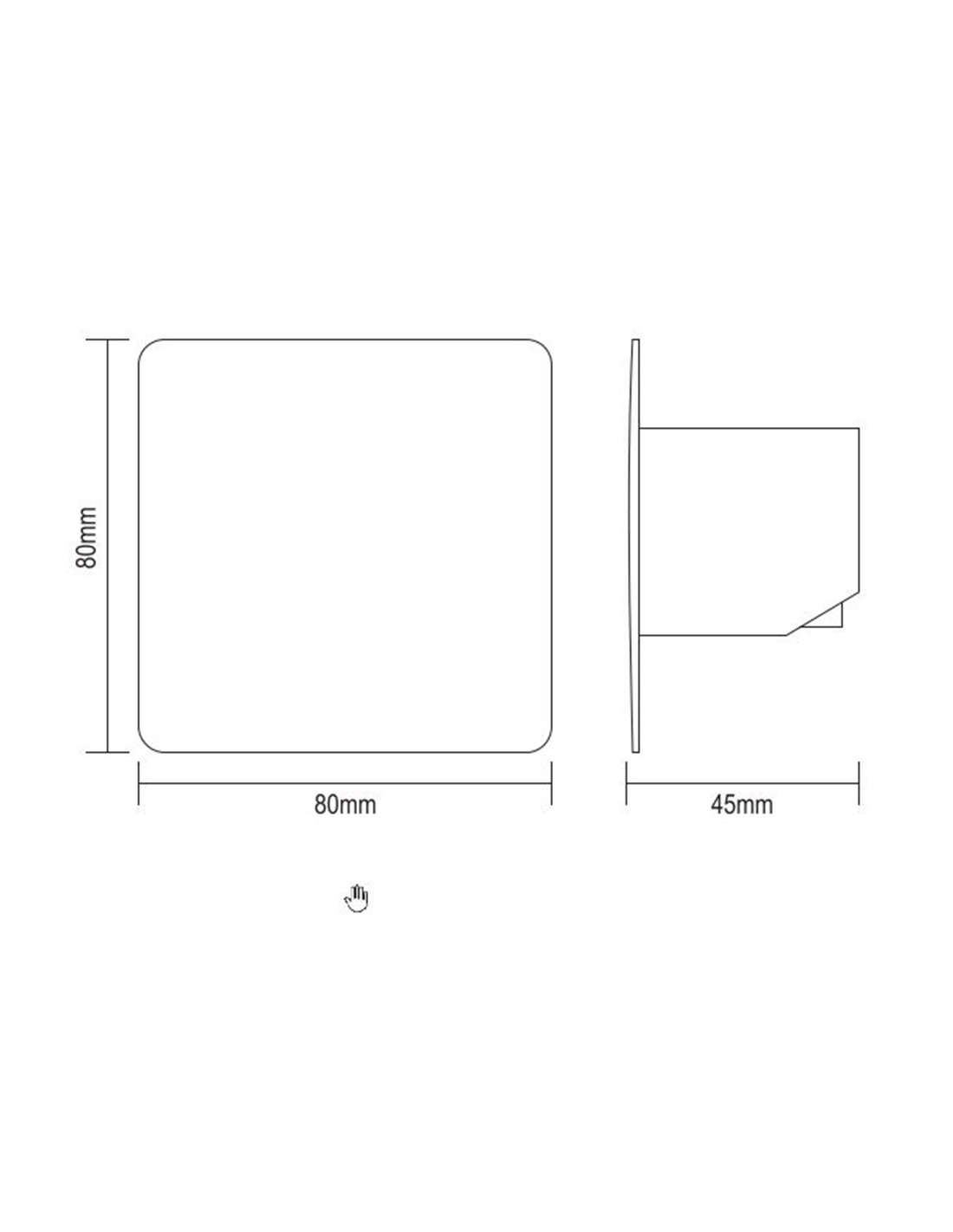

Dimensions: 8x8x4.5 cm

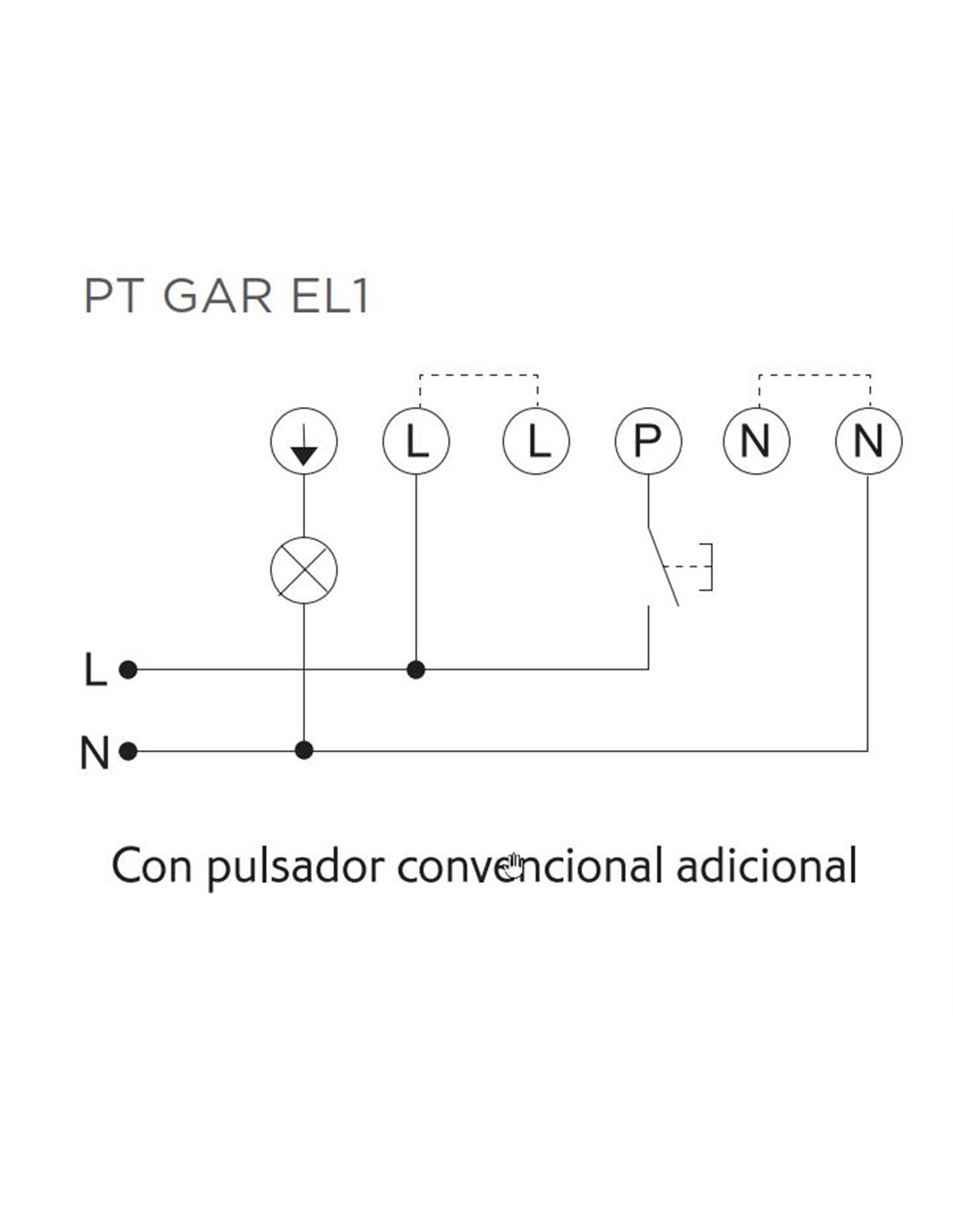

3-wire installation: phase, neutral and lamp return
Compatible with incandescent, halogen and extractor fans
Bright LED that remains permanently lit
Resettable at any time
Protection level: IP20
Material: Plastic
Voltage: 230V
Brand: DINUY

In stock 11 Items

Email address

Description

The 3-wire timed touch switch is a device designed to facilitate lighting control in interior spaces. With a compact design of 8x8x4.5 cm and a white finish, it easily integrates into any environment. This push button is ideal for installation in mechanism boxes using clamping claws, ensuring a secure and stable hold.

3-wire installation: phase, neutral and lamp return.
Compatible with incandescent, halogen and extractor bulbs.
Bright LED that remains illuminated permanently.
Resettable at any time, allowing flexible use.
IP20 rating, suitable for indoor use.
Dimensions: 8x8x4.5 cm.
Colour: White.
Made of high quality plastic.
Operating voltage: 230V.
Maximum power: 400W/2400W/3000W.

Product Details

Frequency	50
Reference	DINUY PT GAR EL1
Power (W)	400 – 3000
Protection	IP20
Nominal voltage (V)	230V
Timer	Yes
Measures	8x8x4,5cm
High	8cm
Current type	AC
Rated current (A)	16
Width	8cm
Depth	4,5cm
Colour	White
Weight (kg)	0,1
Material	Plástico

In stock 11 Items

Reviews (0)

No reviews

GPSR

Fabricante	Dinuy S. A.
Dirección postal	Auzolan Kalea, 2, 20303 Irun, Gipuzkoa
Contacto electrónico	[email protected]
Teléfono	+34 943627988
Referencia	DINUY PT GAR EL1
EAN	8422447013078
