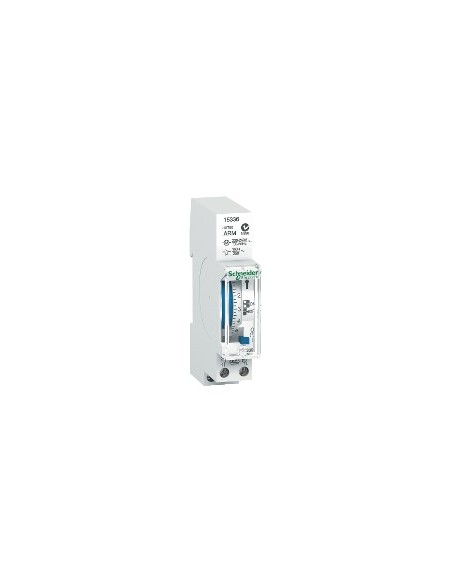

Daily analog time switch 1 channel 16 A 50/60 Hz
Daily analog time switch 1 channel 16 A 50/60 Hz

Daily analog time switch 1 channel 16 A 50/60 Hz

Available In stock 10 Items Reference IMPO 15336
€79.80
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Power (W) 0,5 W
  • Protection IP20

Monopolar analog daily time switch of the Acti9 range, with manual time switching, capacity from 16 A to 250 V AC, precision from ±1 s/day to 20 °C, cycle duration of 24 h, DIN rail mounting bracket, compact design 18 mm wide, compatible with resistive loads and LED up to 300 W.

Description

Analogue daily time switch of the Acti 9 range, designed for manual switching of charge in electrical installations in buildings.

Technical characteristics

  • Number of channels: 1
  • Product type: Mechanically timed switch
  • Function available: Manual time switching
  • Application of the device: Buildings
  • Load type: Parallel fluorescent tube with correction 5 x 58 W, 7 x 40 W, 2 x 100 W; Halogen lamp 230 V AC 1000 W; Incandescent lamp 230 V AC 1000 W; Fluocompact lamp 700 VA; Compact fluorescent lamp 150 W; LED lamp; LED lamp > 2 W 300 W
  • Cycle duration: 24 h
  • Maximum number of switches: 48 activated - 48 disabled
  • Minimum interval duration: 15 min
  • Adjustment type: Manual hour change
  • Measurement accuracy: +/- 1 s/day at 20 °C
  • Power consumption: 0.5 W
  • Maximum switching intensity: 16 A - 250 V AC pf = 1; 4 A - 250 V AC pf = 0.6
  • Nominal employment voltage: 230...240 V AC in 50...60 Hz
  • Battery life: 10 years
  • Backup time: 150 h and savings program
  • Mounting bracket: Rail DIN
  • 9 mm steps: 2
  • Colour tone: White (RAL 9003)
  • Connections: Screw terminals
  • Dimensions: Width 18 mm, Height 90 mm, Depth 66 mm
  • Weight: 0.101 kg
  • Operating ambient temperature: -10...50 °C
  • Degree of IP protection: IP20 B (terminals, status 1)
  • Sustainable supply status: Product Green Premium
  • EU RoHS Directive: As per
  • No mercury: Yes
  • REACh Regulation: Contains SVHC over the threshold

Product Details

Dimensiones

Measures 18 mm x 90 mm x 66 mm
Long 18 mm
Depth 66 mm
Weight (kg) 0,101 kg

Eléctrico

Nominal voltage (V) 230...240 V
Current type AC
Rated current (A) 16

Iluminación

Power (W) 0,5 W

Protección

Protection IP20

Otras

EAN 3303430153368
Manufacturer SCHNEIDER
Halogen-free Yes
Maximum power (W) 300 W
Reference IMPO 15336

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 15336
EAN 3303430153368
